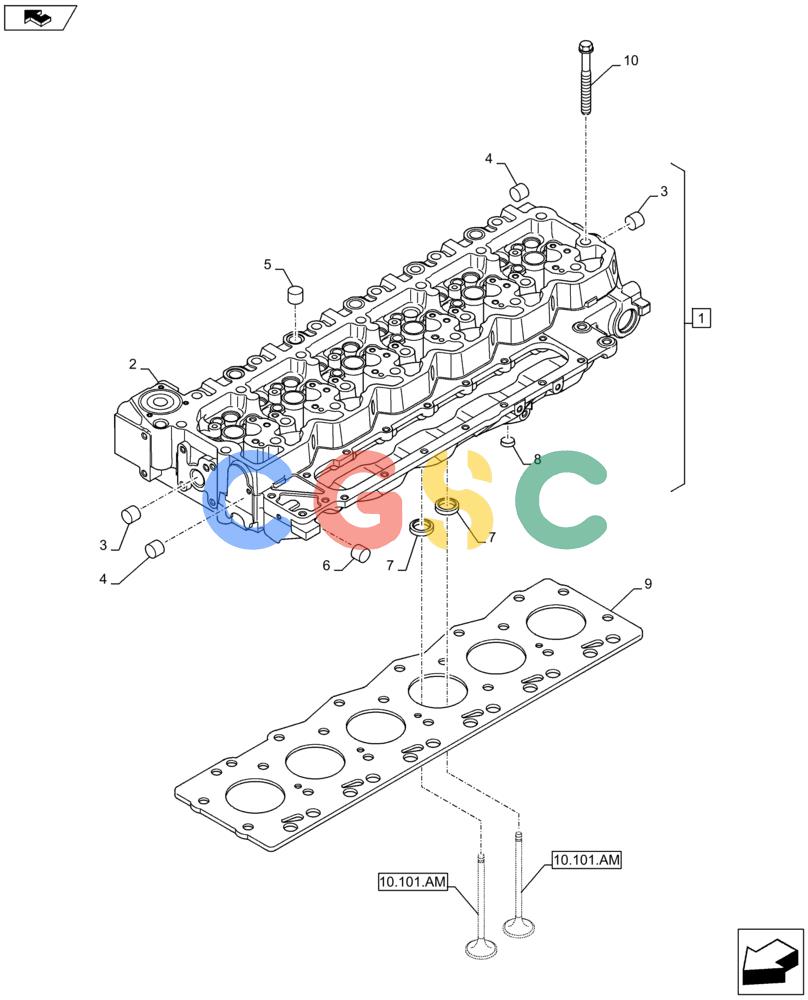

纽荷兰零件查询(F4HFA613G E001) - ENGINE - 5801550427 - 84316934 (7/13-) (10.101.AA) - CYLINDER HEAD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
923 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2831274 | [1] | CYLINDER HEAD | TORASSY, Incl 2 - 8 |
| 1. | 2831274R | [1] | REMAN-CYLINDER HEAD | TOR |
| 1. | 2831274C | [1] | CORE-CYLINDER HEAD | TORReturn Number |
| 2. | 2831279 | [1] | CYLINDER HEAD | TOR |
| 2. | 2831278 | [1] | CYLINDER HEAD | SM Superseded by part number: 2831279 |
| 3. | 4895085 | [13] | EXPANSION PLUG,25.74mm | TOR |
| 4. | 4895406 | [7] | EXPANSION PLUG,9.8mm OD | TOR |
| 5. | 4895089 | [11] | PLUG | TOR |
| 6. | 4895407 | [2] | EXPANSION PLUG | TOR |
| 7. | 4897578 | [12] | VALVE SEAT | TOR |
| 7. | 4897106 | [12] | VALVE SEAT | TOR |
| 8. | 4893036 | [1] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 9. | 2830705 | [1] | CYLINDER HEAD GASKET,1.15mm Thk | TOR1.15 mm |
| 9. | 2830704 | [1] | CYLINDER HEAD GASKET,1.25mm Thk | TOR1.25 mm |
| 10. | 4891024 | [12] | BOLT,Flng, M12 x 1.75 x 130mm | TORM12 x 130 |
| 10. | 4891025 | [14] | SCREW,Flng, M12 x 1.75 x 150mm | TORM12 x 150 |
