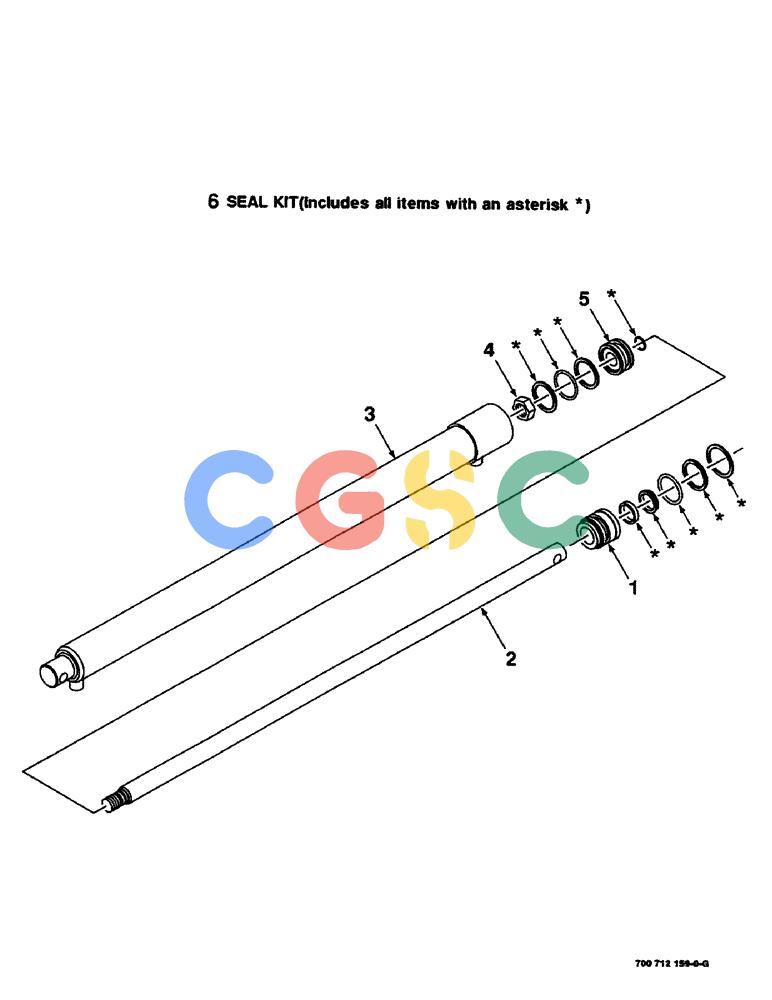

凯斯零件查询(8460) - CASE IH ROUND BALER (S/N CFH0057418 & AFTER) (1/88-12/93) (8-28) - HYDRAULIC CYLINDER ASSEMBLY TAILGATE, 700712159 HYD. CYL. ASSY. COMPLETE, 1-3/4" BORE X 32" STROKE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
318 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700712159
|
[1] |
CYLINDER ASSY.
|
IH
HYDRAULIC CYLINDER COMPLETE (1-3/4 Inch bore x 32 inch stroke)
|
| 1. |
700712477
|
[1] |
GUIDE
|
CAS
|
| 2. |
700712478
|
[1] |
ROD
|
CAS
|
| 3. |
700712479
|
[1] |
BODY
|
CAS
- cylinder
|
| 4. |
700707418
|
[1] |
JAM NUT
|
CAS
7/8-14 HEX JAM NUT
|
| 5. |
700712480
|
[1] |
PISTON
|
CAS
|
| 6. |
700712176
|
[1] |
GASKET KIT
|
L
SEAL KIT
|
