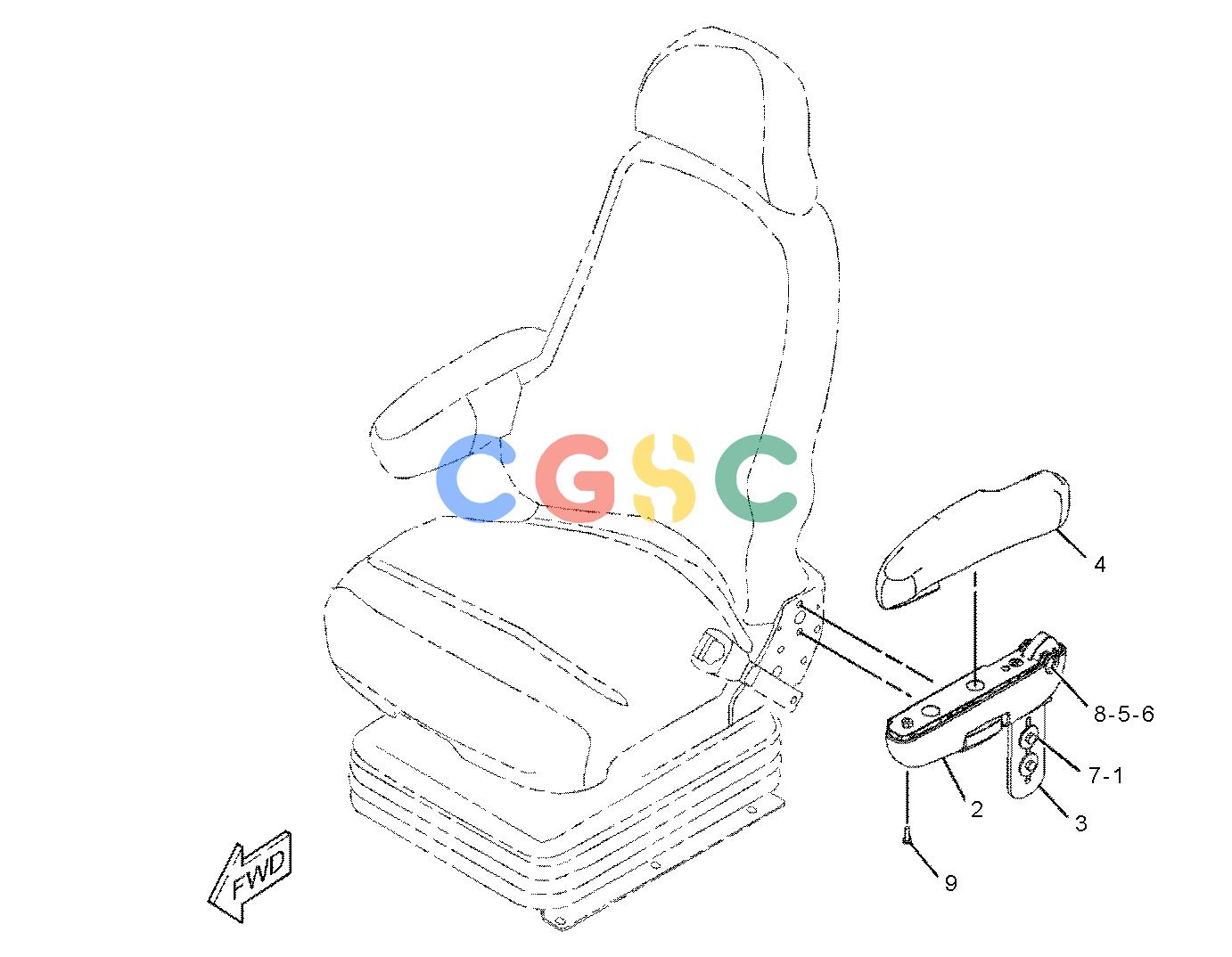

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8T-5062 | [2] | WASHER-PLATED(9X34X2.5-MM THK) | |
| 2. | 348-3694 | [1] | BASE AS | |
| 3. | 348-3696 | [1] | BRACKET(LH) | |
| 4. | 359-3827 | [1] | PAD AS(LH) | |
| 5. | 129-3180M | [1] | LOCKNUT(M12X1.75-THD) | |
| 6. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 8. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 9. | 8T-6412M | [1] | SCREW-MACHINE(M6X1X20-MM) | |
| M | METRIC PART | |||
