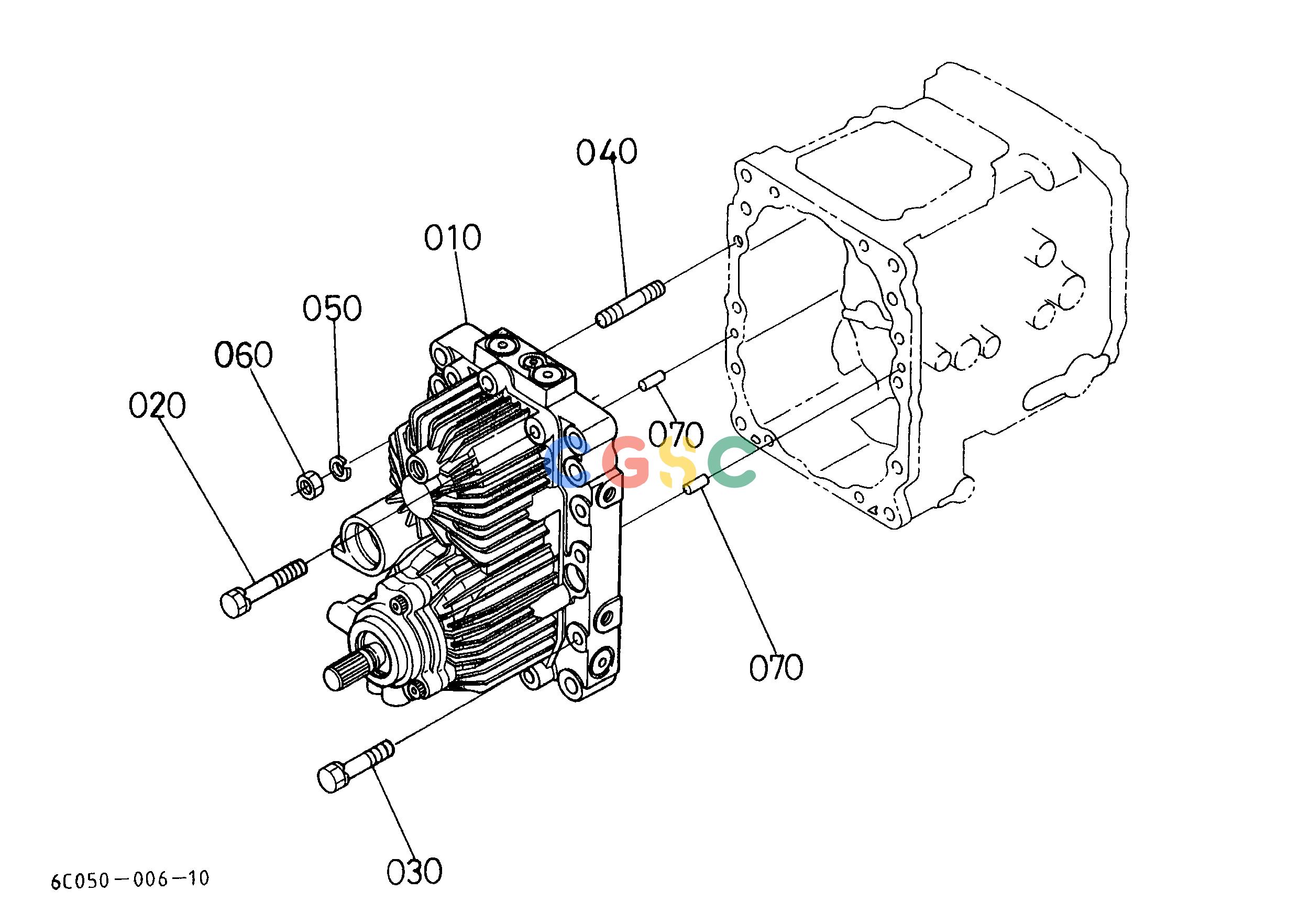

久保田零件查询D01000 HST TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
229 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C05011600
|
[1] |
ASSY HST
|
0.0000(lbs); 0.000
|
| 010. |
6C05011604
|
[1] |
ASSY HST
|
36.3000(lbs); 16.500
|
| 010. |
6C05011605
|
[1] |
ASSY HST
|
0.0000(lbs); 0.000
|
| 010. |
6C05011606
|
[1] |
ASSY HST
|
33.0000(lbs); 15.000
|
| 020. |
0112351075
|
[4] |
BOLT
|
0.1100(lbs); 0.050
|
| 030. |
0112351060
|
[5] |
BOLT
|
0.1100(lbs); 0.050
|
| 040. |
6C05011690
|
[1] |
STUD
|
0.0946(lbs); 0.043
|
| 050. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 060. |
0217650100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
0501200614
|
[2] |
PIN STRAIGHT
|
0.0088(lbs); 0.004
|
