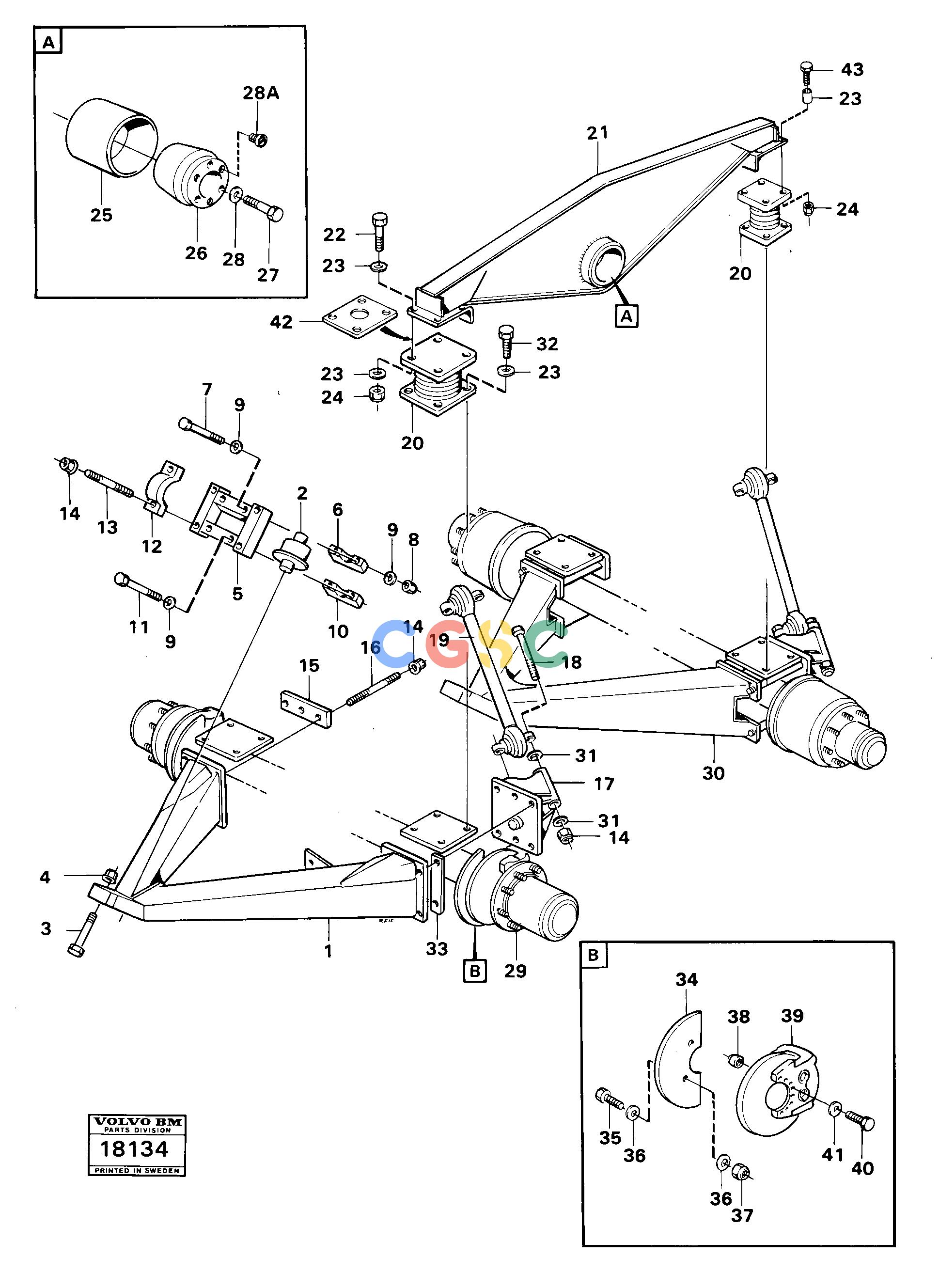

沃尔沃零件查询A25 VOLVO BM BogieVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
826 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE945489
|
[0001] |
Retaining ring
|
|
| 40. |
VOE60110000
|
[0016] |
Hexagon screw
|
|
| 41. |
VOE941914
|
[0016] |
Spring washer
|
|
| 42. |
|
[0004] |
Plate
|
|
| 43. |
VOE955368
|
[0008] |
Hexagon screw
|
|
| 3. |
VOE959249
|
[0004] |
Hex. socket screw
|
SER NO - 4096
|
| 4. |
VOE13971098
|
[0004] |
Flange nut
|
|
| |
|
|
None
|
SER NO - 4096
|
| 5. |
VOE4737455
|
[0001] |
Anchorage
|
|
| 6. |
VOE4823145
|
[0001] |
Cap
|
|
| 1. |
VOE4965059
|
[0001] |
Stay
|
SER NO - 4096
|
| 7. |
VOE955377
|
[0002] |
Hexagon screw
|
|
| 8. |
VOE963110
|
[0002] |
Lock nut
|
|
| 9. |
VOE13955900
|
[0008] |
Washer
|
|
| 10. |
VOE4823146
|
[0001] |
Cap
|
|
| 11. |
VOE955377
|
[0002] |
Hexagon screw
|
|
| 12. |
VOE4737457
|
[0002] |
Brace
|
|
| 13. |
VOE11054328
|
[0004] |
Stud
|
|
| 14. |
VOE13976433
|
[0024] |
Flange nut
|
|
| 15. |
VOE4823783
|
[0002] |
Plate
|
|
| 16. |
VOE11054328
|
[0012] |
Stud
|
V
|
| |
VOE11053490
|
[0001] |
Stay
|
SER NO 4097 -
|
| |
VOE11054328
|
[0012] |
Stud
|
|
| 17. |
VOE4941252
|
[0001] |
Bracket
|
|
| 18. |
VOE963349
|
[0006] |
Hexagon screw
|
|
| |
VOE11054328
|
[0002] |
Stud
|
|
| 19. |
VOE4941232
|
[0001] |
Cross stay
|
6 X 4
|
| |
VOE17498200
|
[2] |
Repair Kit
|
|
| |
VOE914542
|
[2] |
Retaining ring
|
|
| |
VOE4941136
|
[1] |
Cross stay
|
6X6
|
| |
VOE17498200
|
[2] |
Repair Kit
|
|
| |
VOE4941136
|
[1] |
Cross stay
|
|
| 20. |
VOE11056369
|
[4] |
Rubber cushion
|
|
| 2. |
VOE4821586
|
[0001] |
Bearing
|
SER NO - 4096
|
| 21. |
VOE4941141
|
[2] |
Balance beam
|
|
| 22. |
VOE955368
|
[16] |
Hexagon screw
|
|
| 23. |
VOE60110349
|
[16] |
Washer
|
|
| 24. |
VOE963110
|
[22] |
Lock nut
|
|
| 25. |
VOE11052112
|
[4] |
Rubber element
|
|
| 26. |
VOE4821619
|
[2] |
Ferrule
|
|
| 27. |
VOE955372
|
[6] |
Hexagon screw
|
|
| 28. |
VOE13955900
|
[6] |
Washer
|
|
| 28A. |
VOE4864289
|
[0006] |
Plastic plug
|
|
| 29. |
|
[0001] |
Shaft
|
SEE GROUP 46
|
| |
VOE4941208
|
[0001] |
Bearing
|
SER NO 4097 -
|
| 30. |
|
[0001] |
Boggie-wheel axle
|
|
| 31. |
VOE955903
|
[REQ] |
Plain washer
|
|
| 32. |
VOE955364
|
[0016] |
Hexagon screw
|
|
| 33. |
VOE7063118
|
[REQ] |
Shim
|
|
| 34. |
VOE4941636
|
[0004] |
Protecting plate
|
|
| 35. |
VOE955362
|
[0008] |
Hexagon screw
|
|
| 36. |
VOE60110349
|
[0008] |
Washer
|
|
| 37. |
VOE963111
|
[0004] |
Lock nut
|
|
| 38. |
VOE943491
|
[0020] |
Lug Nut
|
|
| 39. |
|
[0002] |
Disc brake
|
SEE GROUP 51
|
