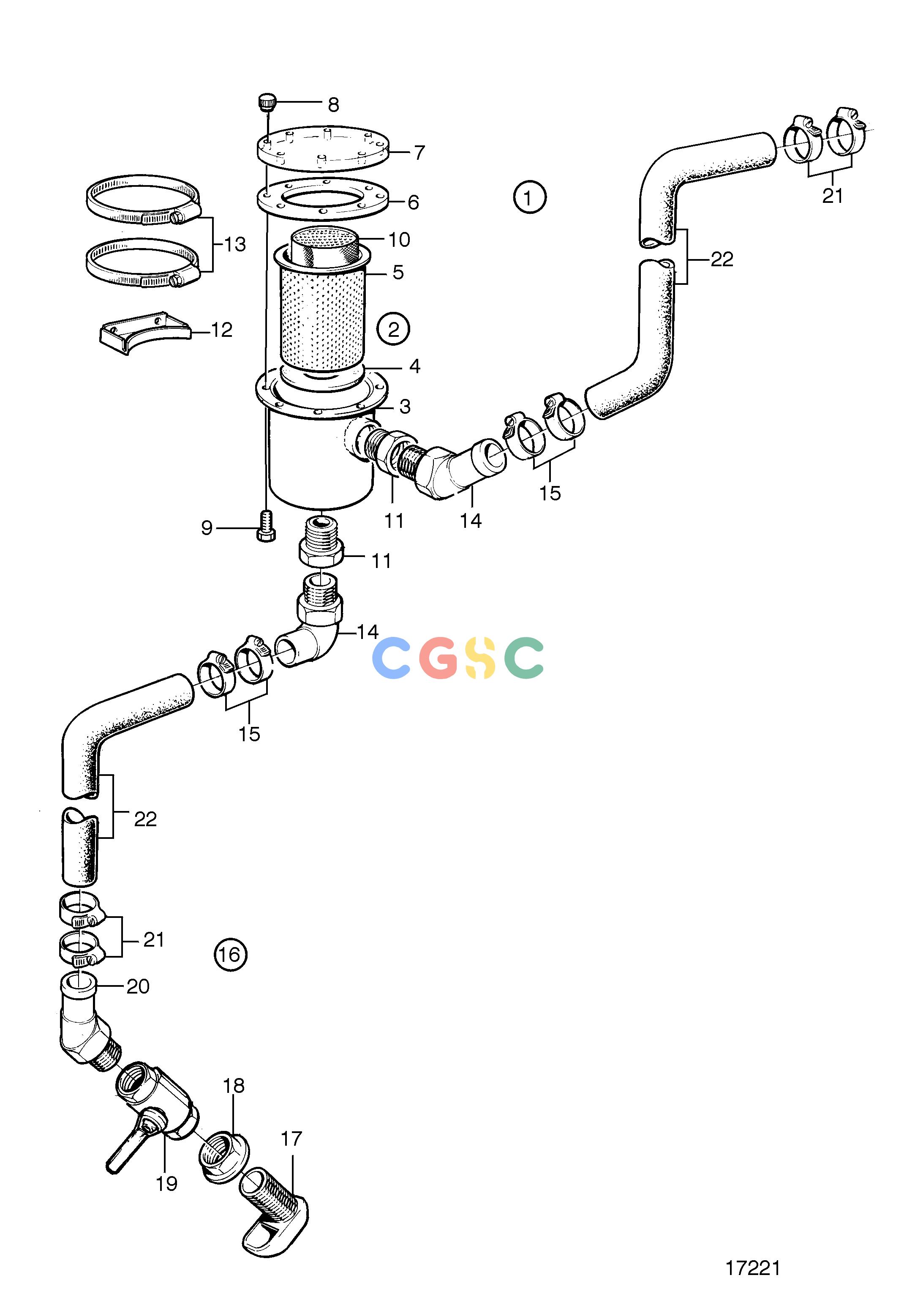

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DCooling SystemSea Water Filter and Water IntakeEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
513 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1140034
|
[1] |
Sea water filter
|
D=32mm
|
| 2. |
842466
|
[1] |
Sea water filter
|
|
| 3. |
|
|
|
|
| 4. |
3589331
|
[1] |
Gasket kit
|
|
| 5. |
843358
|
[1] |
Filter
|
|
| 6. |
3589331
|
[1] |
Gasket kit
|
|
| 7. |
843359
|
[1] |
Cap
|
|
| 8. |
843357
|
[8] |
Nut
|
|
| 9. |
843362
|
[8] |
Screw
|
|
| 10. |
844902
|
[1] |
Sea water filter
|
|
| 11. |
844903
|
[2] |
Bushing
|
|
| 12. |
828061
|
[2] |
Retainer
|
|
| 13. |
961678
|
[2] |
Hose clamp
|
|
| 14. |
828696
|
[2] |
Hose attachment
|
|
| 15. |
961669
|
[4] |
Hose clamp
|
|
| 16. |
1140129
|
[1] |
Coolant inlet
|
D=32mm
|
| 17. |
836876
|
[1] |
Strainer
|
|
| 18. |
836879
|
[1] |
Nut
|
|
| 19. |
1140125
|
[1] |
Ball valve
|
|
| 20. |
828696
|
[1] |
Hose attachment
|
45°
|
| 21. |
961670
|
[2] |
Hose clamp
|
|
| 22. |
1140664
|
[1] |
Exhaust hose
|
D=32mm
|
