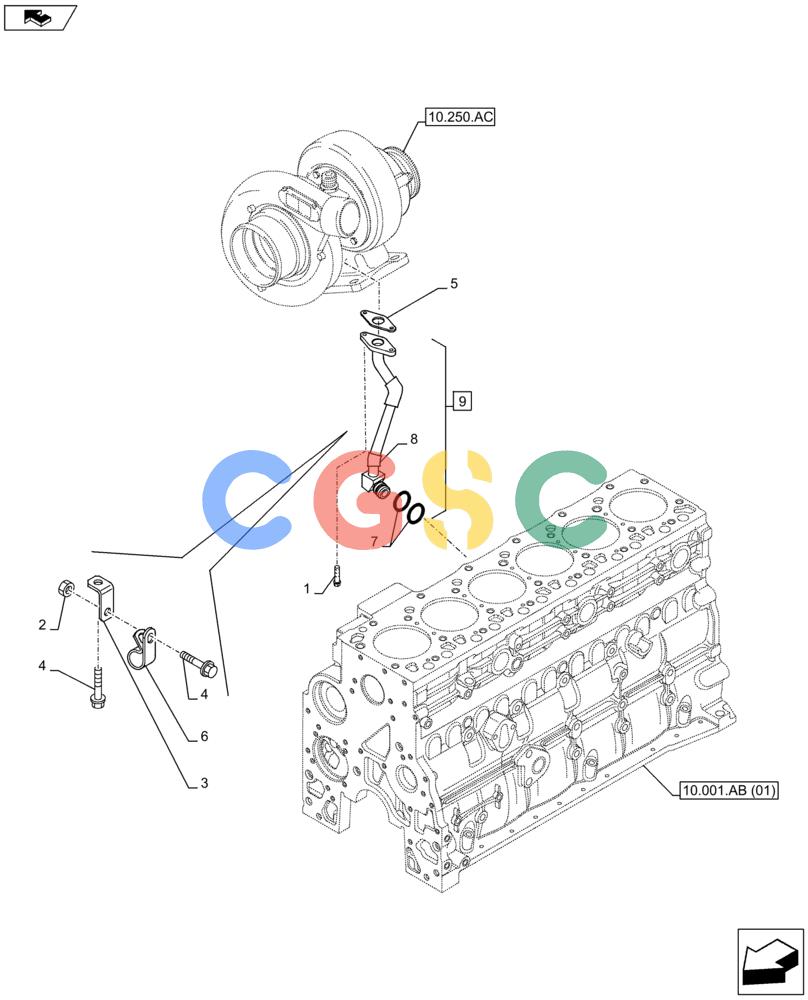

纽荷兰零件查询(F4HFA613G E001) - ENGINE - 5801550427 - 84316934 (7/13-) (10.250.AE) - TURBOCHARGER, RETURN, LINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
208 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 16586224 | [2] | SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8 | TORM8 x 1.25 x 25 Superseded by part number: 16586225 |
| 2. | 2852389 | [1] | FLANGE NUT | TORM8 x 1.25 |
| 3. | 2852390 | [1] | BRACKET | TOR Superseded by part number: 98459285 |
| 4. | 2852100 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 16mm | TORM8 x 1.25 x 16 Superseded by part number: 16586225 |
| 5. | 4891288 | [1] | GASKET,0.8mm Thk | TOR |
| 6. | 4896893 | [1] | CLAMP | TOR |
| 7. | 2852801 | [2] | O-RING | TOR Superseded by part number: 5135738 |
| 8. | NSS | [1] | NOT SERVICED SEPARATELY | CONPipe, Incl in 9 |
| 9. | 47547979 | [1] | PIPE | TORASSY, Incl 7, 8 |
