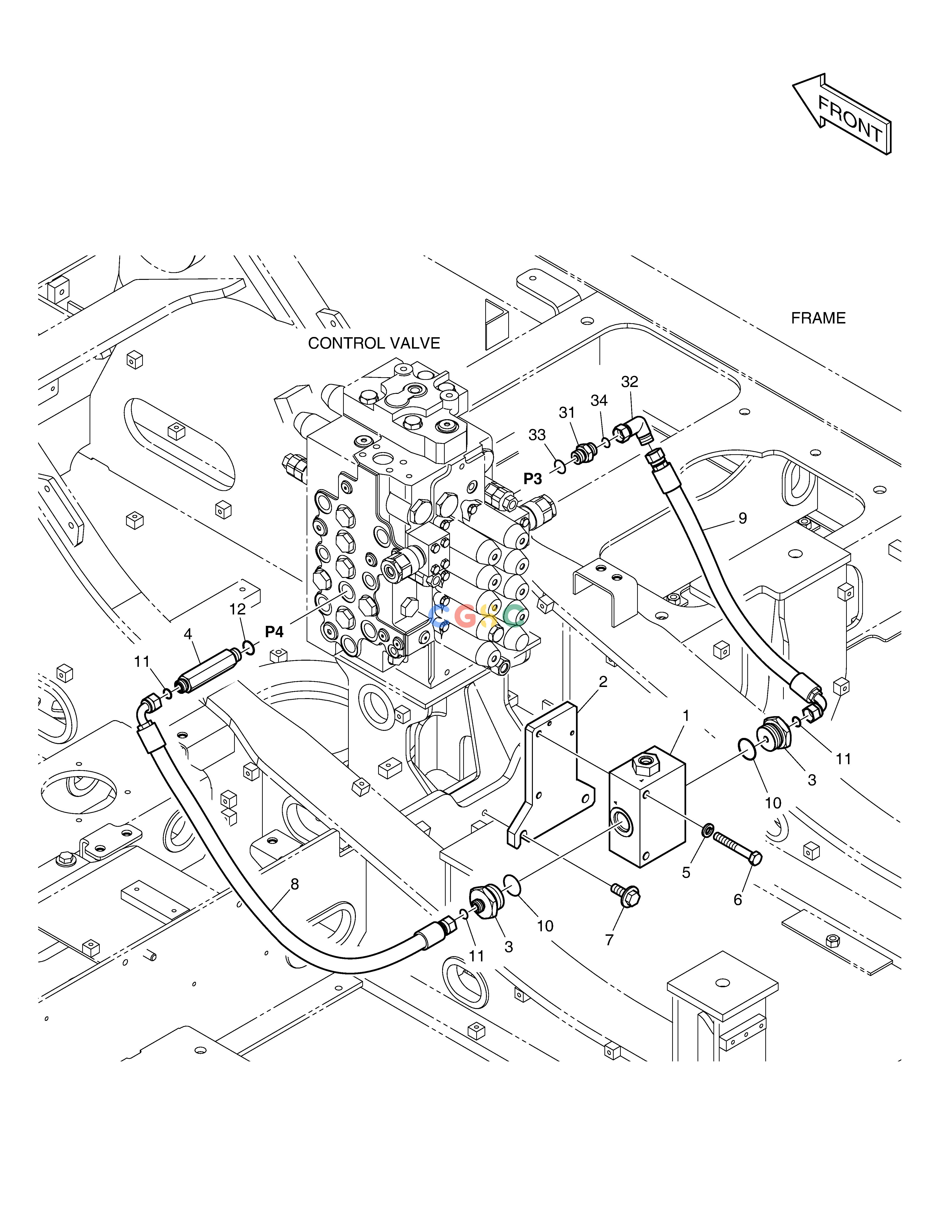

斗山零件查询MAIN PIPING - TWO PUMP DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
853 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05687
|
[-] |
|
|
| 1. |
410111-00005A
|
[1] |
|
|
| 10. |
S8000291
|
[2] |
O-RING
|
|
| 11. |
S8030081
|
[3] |
O-RING
|
|
| 12. |
S8000181
|
[1] |
O-RING
|
|
| 2. |
250127-00420A
|
[1] |
|
|
| 3. |
2181-4133D9
|
[2] |
|
|
| 31. |
DS2232012
|
[1] |
ADAPTER
|
|
| 32. |
DS2291011
|
[1] |
ELBOW
|
|
| 33. |
S8000181
|
[1] |
O-RING
|
|
| 34. |
S8030081
|
[1] |
O-RING
|
|
| 4. |
DS2232175
|
[1] |
ADAPTER
|
|
| 5. |
S5102703
|
[2] |
WASHER
|
|
| 6. |
S0561566
|
[2] |
BOLT
|
|
| 7. |
DS0025027
|
[2] |
BOLT
|
|
| 8. |
DS2013799
|
[1] |
|
|
| 9. |
DS20132117
|
[1] |
|
|
