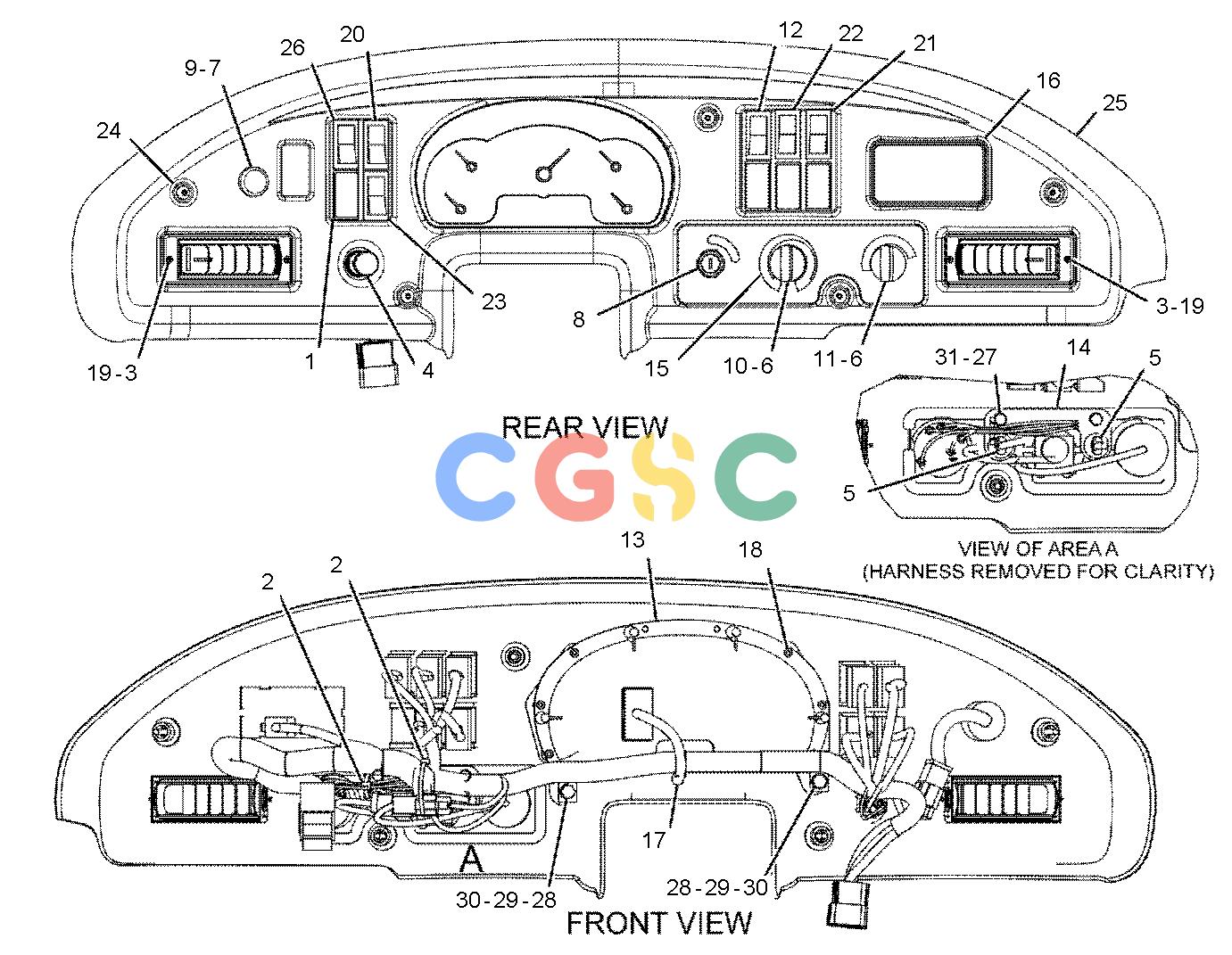

| 1. | 3E-0109 | [4] | PLUG(ROCKER SWITCH) | |
| 2. | 3S-2093 | [2] | STRAP-CABLE | |
| 3. | 8Y-6388 | [2] | LOUVER AS-VENT | |
| 4. | 9W-0335 | [1] | LIGHTER AS-CIGAR(24-VOLT) | |
| 5. | 110-2079 | [2] | LAMP(24-VOLT) | |
| 6. | 110-6109 | [2] | KNOB-CONTROL(TEMPERATURE SELECT) | |
| 7. | 110-7885 | [1] | KNOB AS-WIPER SWITCH | |
| | 014-0816 | [1] | SETSCREW(8-32X0.5-IN) | |
| 8. | 110-7887 | [1] | SWITCH AS-START(KEY) | |
| | 7T-6799 | [1] | NUT-MOUNTING(1-32-THD) | |
| | 102-8804 | [2] | KIT-RECEPTACLE(4-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 9. | 112-6174 | [1] | SWITCH GP-ROTARY(WIPER, WASHER) | |
| | 2H-3920 | [1] | LOCKWASHER | |
| | 6V-8369 | [1] | NUT(7/16-28-THD) | |
| | 186-3735 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 10. | 291-2165 | [1] | POTENTIOMETER AS(TEMPERATURE CONTROL) | |
| 11. | 157-0217 | [1] | SWITCH AS-ROTARY(FAN SPEED) | |
| | 6V-8362 | [6] | SCREW-MACHINE(8-32X0.31-IN) | |
| | 9B-7233 | [6] | LOCKWASHER | |
| 12. | 170-1330 | [1] | SWITCH AS-ROCKER(DIFFERENTIAL LOCK) | |
| | 3E-8825 | [2] | LAMP(24-VOLT) | |
| | 3E-8856 | [1] | SWITCH AS-ROCKER | |
| | 170-1332 | [1] | ACTUATOR | |
| 13. | 235-3497 | [1] | MODULE GP-INSTRUMENT PANEL | |
| 14. | | [1] | PLATE |
| 15. | 242-5044 | [1] | FILM-IDENTIFICATION(INSTRUMENT PANEL) | |
| 16. | 256-4710 | [1] | COVER | |
| 17. | 258-0590 | [1] | HARNESS AS-PANEL | |
| | 5P-1475 | [6] | TERMINAL-FORK(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 5P-4571 | [1] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 113-5184 | [1] | TERMINAL-RECEPTACLE(16-GA TO 18-GA) | |
| | 3E-7790 | [18] | TERMINAL-BLADE(18-GA TO 20-GA) | |
| | 9X-3506 | [1] | RESISTOR(120-OHMS, 0.5-WATT) | |
| | 186-3735 | [17] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9G-1906 | [1] | CONNECTOR AS | |
| | 6V-2689D | | TUBE-HEAT SHRINK(6.35-MM DIA)(0.1-M) | |
| | 186-3736 | [95] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 9W-0844 | [11] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 3E-7996 | [9] | PLUG-CONNECTOR(6-PIN) | |
| | 8T-8737 | [24] | PLUG-SEAL | |
| | 107-1984 | [2] | SOCKET-LAMP | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(40-CM) | |
| | 141-8061B | | TAPE | |
| | 245-0160 | [1] | PLUG AS(3-PIN) | |
| | 245-0161 | [1] | PLUG AS(4-PIN) | |
| | | [2] | PLUG AS(8-PIN) |
| | 245-0164 | [1] | PLUG AS(12-PIN) | |
| | 245-0168 | [1] | RECEPTACLE AS-CONNECTOR(8-PIN) | |
| | 245-0169 | [1] | RECEPTACLE AS-CONNECTOR(12-PIN) | |
| | 245-8021 | [1] | PLUG AS(24-PIN) | |
| | 245-8024 | [1] | PLUG AS(70-PIN) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 18. | 096-4833M | [6] | BOLT-SOCKET HEAD(M5X0.8X20-MM) | |
| 19. | 104-2091 | [4] | SCREW-FLAT HEAD(6-20X0.5-IN) | |
| 20. | 123-5849 | [1] | SWITCH AS-ROCKER(REAR FLOODLIGHT) | |
| | 3E-8763 | [1] | SWITCH AS(24-VOLT)(REAR FLOODLIGHT) | |
| | 3E-8782 | [1] | ACTUATOR | |
| | 3E-8825 | [1] | LAMP(24-VOLT) | |
| 21. | 125-9257 | [1] | SWITCH AS-ROCKER(AIR CONDITIONER SELECT) | |
| | 3E-8825 | [2] | LAMP(24-VOLT) | |
| | 3E-8857 | [1] | SWITCH AS-ROCKER(AIR CONDITIONER ON, OFF) | |
| | 126-1699 | [1] | ACTUATOR | |
| 22. | 155-2702 | [1] | SWITCH AS-ROCKER(SECONDARY STEERING) | |
| | 3E-8816 | [1] | ACTUATOR | |
| | 3E-8825 | [2] | LAMP(24-VOLT) | |
| | 108-8162 | [1] | SWITCH AS(SECONDARY STEERING) | |
| 23. | 155-2703 | [1] | SWITCH AS-ROCKER(HAZARDS) | |
| | 3E-8825 | [1] | LAMP(24-VOLT) | |
| | 3E-8859 | [1] | SWITCH AS(HAZARDS) | |
| | 155-2704 | [1] | ACTUATOR | |
| 24. | 198-9707M | [5] | SCREW-TRUSS HEAD(M6X1X35-MM) | |
| 25. | 256-4709 | [1] | PANEL AS-INSTRUMENT | |
| 26. | 3E-9317 | [1] | SWITCH AS-ROCKER(24-VOLT)(LIGHTING) | |
| | 3E-8772 | [1] | SWITCH-ROCKER(24-VOLT)(LIGHTING) | |
| | 3E-8825 | [2] | LAMP(24-VOLT) | |
| | 3E-9326 | [1] | ACTUATOR | |
| 27. | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| 28. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 29. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 30. | 9M-8406 | [2] | CLIP(LOOP) | |
| 31. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
