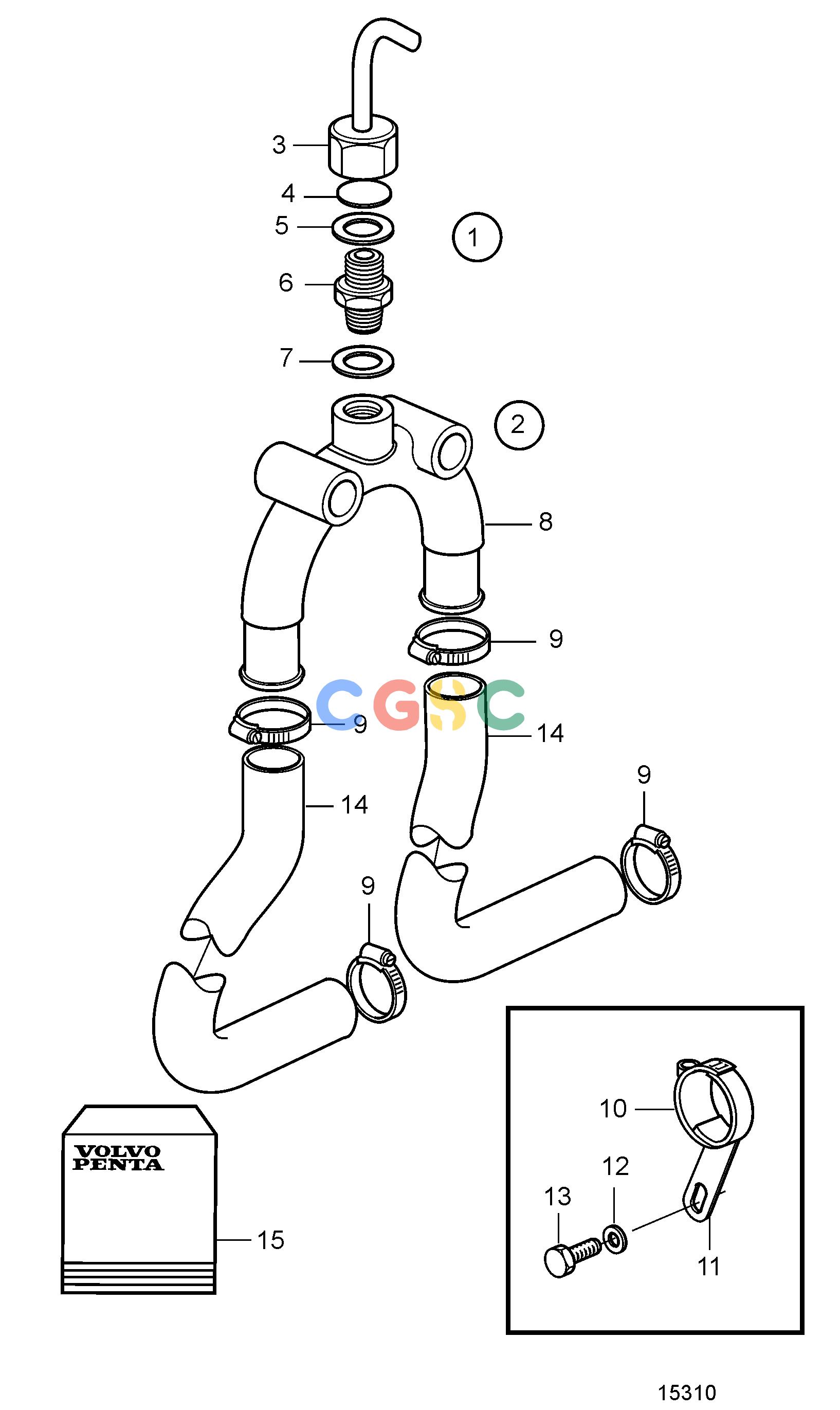

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DCooling SystemVacuum ValveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
797 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858588
|
[1] |
Vacuum valve kit
|
Repl by 3581591
|
| 2. |
828534
|
[1] |
Vacuum valve
|
|
| 3. |
828533
|
[1] |
Upper section
|
|
| 4. |
|
|
|
Included in overhaul kit., Only 1pc as spare part.
|
| 5. |
828424
|
[2] |
Gasket
|
Included in overhaul kit., Only 1pc as spare part.
|
| 6. |
828266
|
[1] |
Lower section
|
|
| 7. |
947282
|
[2] |
Gasket
|
Included in overhaul kit., Only 1pc as spare part.
|
| 8. |
828501
|
[1] |
Branch pipe
|
|
| 9. |
853548
|
[4] |
Hose clamp
|
|
| 10. |
943473
|
[1] |
Hose clamp
|
|
| 11. |
843747
|
[1] |
Anchorage
|
|
| 12. |
976944
|
[1] |
Washer
|
(960141)
|
| 13. |
940142
|
[1] |
Hexagon screw
|
|
| 14. |
952972
|
[1] |
Hose
|
|
| 15. |
3818424
|
[1] |
Repair kit
|
(875738)
|
