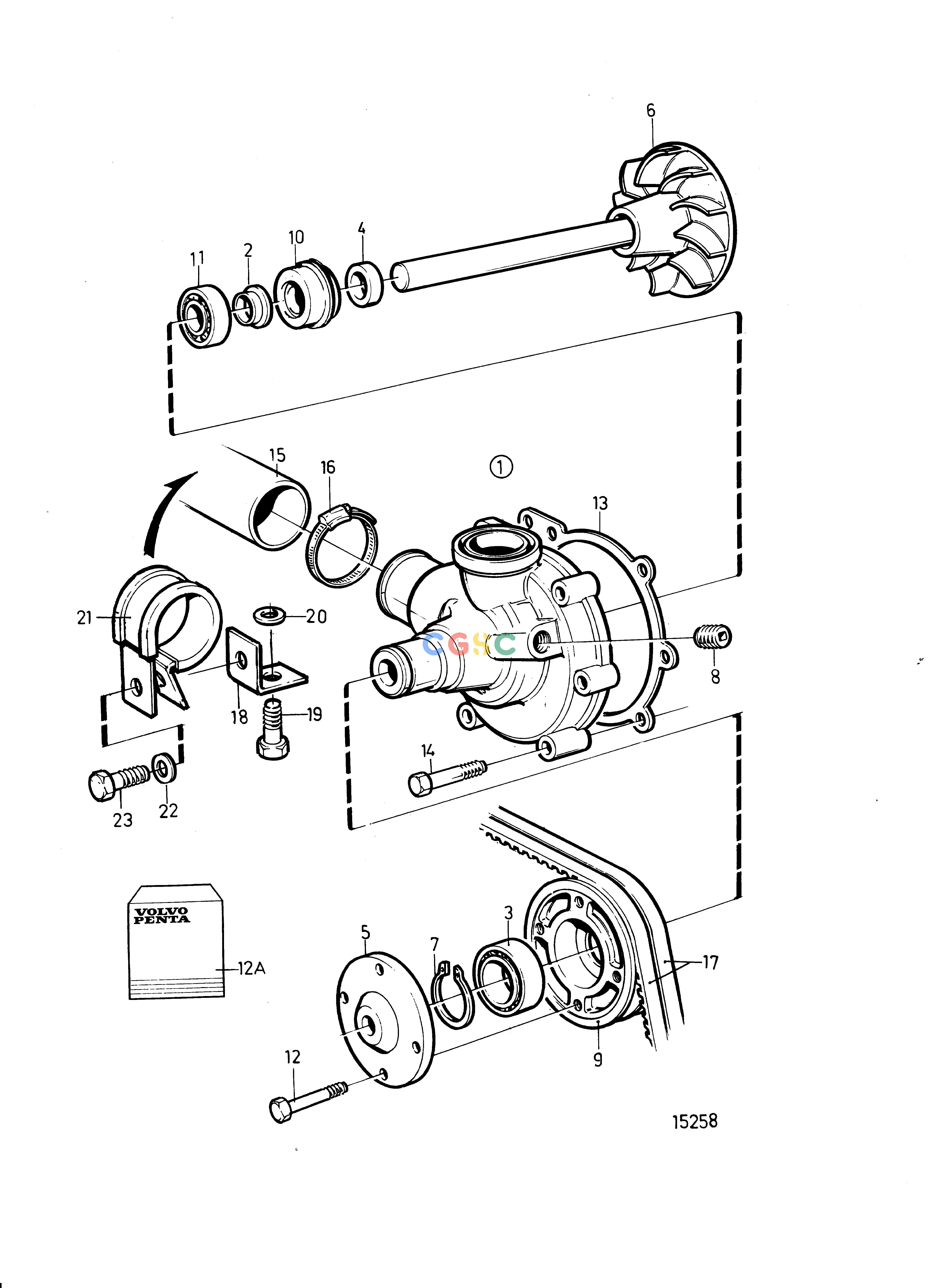

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DCooling SystemWater PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1015 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861303
|
[1] |
Water pump
|
|
| 2. |
70913
|
[1] |
Deflector
|
Included in overhaul kit.
|
| 3. |
181538
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 4. |
421306
|
[1] |
Wear ring
|
Included in overhaul kit.
|
| 5. |
860455
|
[1] |
Hub
|
|
| 6. |
|
|
|
Included in overhaul kit.
|
| 7. |
914462
|
[1] |
Snap ring
|
Included in overhaul kit.
|
| 8. |
479977
|
[1] |
Plug
|
(952077)
|
| 9. |
1542235
|
[1] |
Pulley
|
|
| 10. |
1545283
|
[1] |
Sealing ring
|
Included in overhaul kit.
|
| 11. |
1660609
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 12. |
946173
|
[4] |
Flange screw
|
|
| 12A. |
876560
|
[1] |
Repair kit
|
See group 99
|
| 13. |
859027
|
[1] |
Gasket
|
Included in overhaul kit.
|
| 14. |
947760
|
[6] |
Flange screw
|
|
| 15. |
861279
|
[1] |
Hose
|
Heat exchanger-expansion tank-water pump.
|
| 16. |
994562
|
[1] |
Hose clamp
|
|
| 17. |
966978
|
[1] |
V-belt
|
|
| 18. |
846780
|
[1] |
Bracket
|
|
| 19. |
|
|
|
See group 22
|
| 20. |
955894
|
[1] |
Washer
|
|
| 21. |
952635
|
[1] |
Clamp
|
|
| 22. |
955893
|
[1] |
Washer
|
|
| 23. |
968855
|
[1] |
Flange screw
|
|
