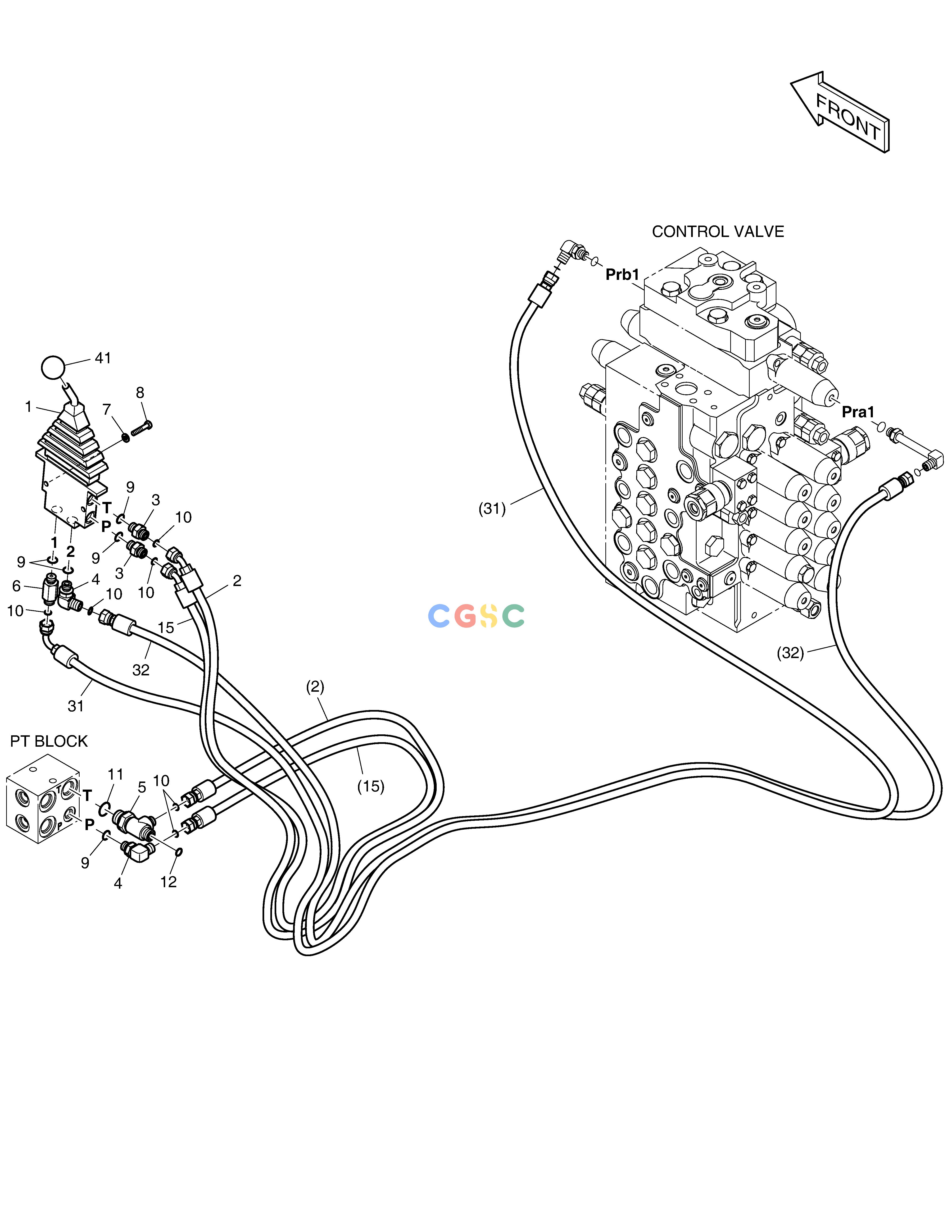

斗山零件查询PILOT PIPING - DOZER DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
359 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05752B
|
[-] |
|
|
| 1. |
420-00490A
|
[1] |
VALVE;REMOCON(DOZER)
|
|
| 10. |
S8030041
|
[6] |
O-RING
|
|
| 11. |
S8000181
|
[1] |
O-RING
|
|
| 12. |
S8030061
|
[1] |
O-RING
|
|
| 15. |
DS2120079
|
[1] |
|
|
| 2. |
DS2120002
|
[1] |
|
|
| 3. |
2181-4133D1
|
[2] |
ADAPTER
|
|
| 31. |
DS2121223
|
[1] |
|
|
| 32. |
DS2119233
|
[1] |
|
|
| 4. |
2181-2815D4
|
[2] |
ELBOW
|
|
| 41. |
132-00021
|
[1] |
GRIP
|
|
| 5. |
DS2412041
|
[1] |
|
|
| 6. |
2181-4133D44
|
[1] |
ADAPTER
|
|
| 7. |
S5102303
|
[2] |
. WASHER
|
|
| 8. |
S0505266
|
[2] |
BOLT
|
|
| 9. |
S8000111
|
[5] |
O-RING
|
|
