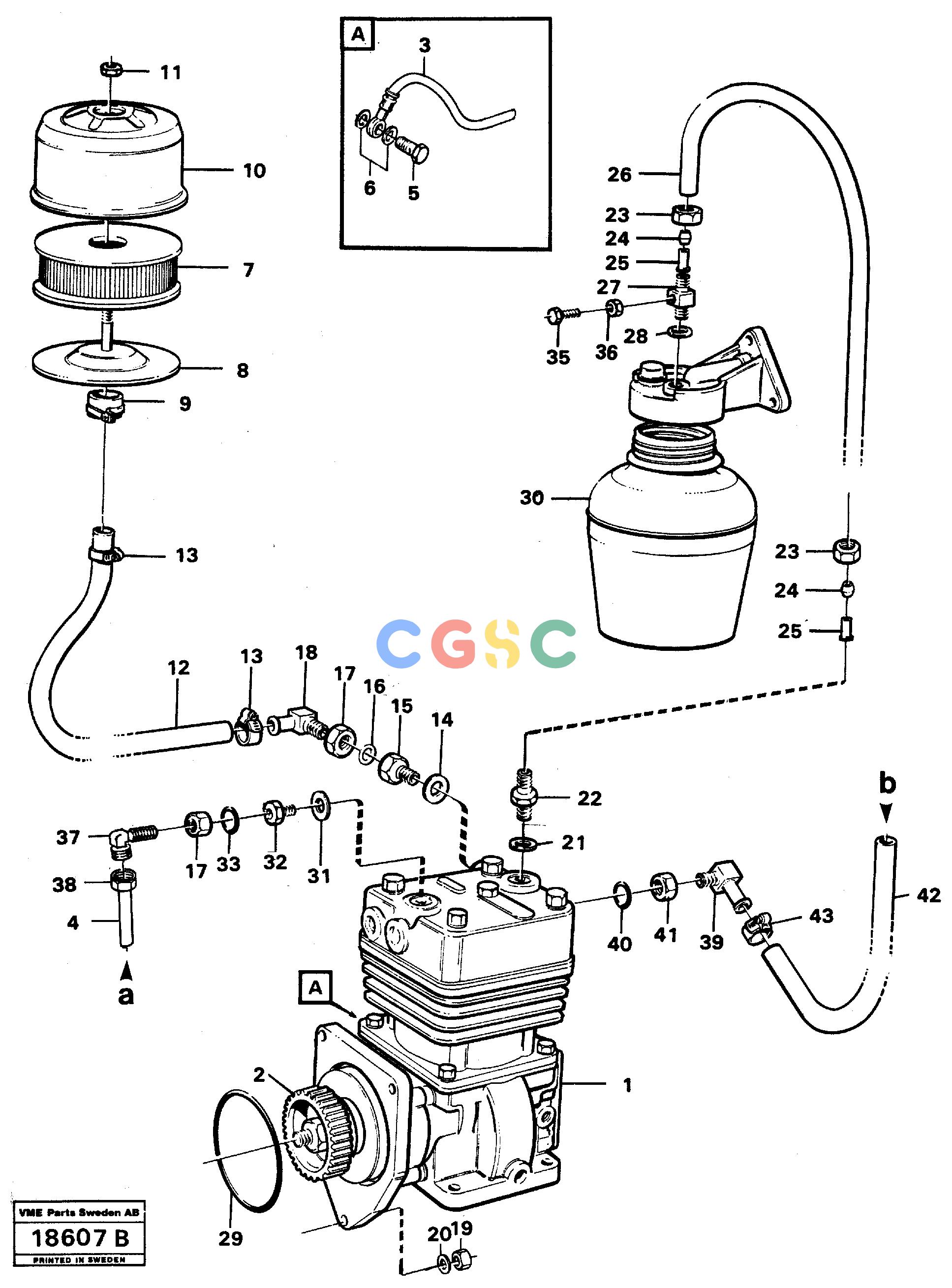

沃尔沃零件查询A25 VOLVO BM Air-compressor with fitting partsVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
709 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE7048634
|
[0001] |
Hollow screw
|
|
| 6. |
VOE13947281
|
[0002] |
Gasket
|
|
| |
VOE6626437
|
[0001] |
Filter
|
|
| 7. |
|
[0001] |
Filter
|
|
| 8. |
|
[0001] |
Filter Retainer
|
|
| 1. |
|
[0001] |
Compressor
|
|
| 9. |
|
[0001] |
Rubber ring
|
|
| 10. |
|
[0001] |
Housing
|
|
| 11. |
|
[0001] |
Nut
|
|
| 12. |
VOE13961195
|
[0001] |
Hydraulic hose
|
L=800
|
| 13. |
VOE13943474
|
[0002] |
Hose clamp
|
|
| 14. |
VOE13947628
|
[0001] |
Plane gasket
|
|
| 15. |
VOE4966136
|
[0001] |
Nipple
|
|
| 16. |
VOE13949657
|
[0001] |
O-ring
|
|
| 17. |
VOE945895
|
[0001] |
Hexagon nut
|
|
| 18. |
VOE6775550
|
[0001] |
Fitting
|
|
| 2. |
VOE478777
|
[0001] |
Gear
|
|
| 19. |
VOE13971073
|
[0003] |
Hexagon nut
|
|
| 20. |
VOE955899
|
[0003] |
Plain washer
|
|
| 21. |
VOE13947628
|
[0001] |
Plane gasket
|
|
| 22. |
VOE968675
|
[0001] |
Nipple
|
|
| 23. |
VOE326596
|
[0002] |
Fitting nut
|
|
| 24. |
VOE326599
|
[0002] |
Ferrule
|
|
| 25. |
VOE967559
|
[0002] |
Sleeve
|
|
| 26. |
VOE13945461
|
[REQ] |
Plastic pipe
|
L=400
|
| 27. |
VOE11053258
|
[0001] |
Fitting
|
|
| 28. |
VOE13947281
|
[0001] |
Gasket
|
|
| 3. |
VOE4966210
|
[0001] |
Lubricating hose
|
SEE GROUP 22
|
| 29. |
VOE13975610
|
[0001] |
O-ring
|
|
| 30. |
|
[0001] |
Antifreeze Reservoir
|
|
| 31. |
VOE13947628
|
[0001] |
Plane gasket
|
|
| 32. |
VOE4966136
|
[0001] |
Nipple
|
|
| 33. |
VOE13949657
|
[0001] |
O-ring
|
|
| 34. |
VOE945895
|
[0001] |
Hexagon nut
|
|
| 35. |
VOE13955272
|
[0001] |
Screw
|
|
| 36. |
VOE13955781
|
[0001] |
Nut
|
|
| 37. |
VOE945925
|
[0001] |
Elbow nipple
|
|
| 38. |
VOE354145
|
[0001] |
Fitting nut
|
|
| 4. |
VOE4942695
|
[0001] |
Pipe
|
|
| 39. |
VOE11053097
|
[0002] |
Elbow nipple
|
|
| 40. |
VOE13949657
|
[0002] |
O-ring
|
|
| 41. |
VOE945895
|
[0002] |
Hexagon nut
|
|
| 42. |
VOE943368
|
[REQ] |
Hose
|
L = 2 X 360
|
| |
|
|
None
|
SEE GROUP 25
|
| |
|
|
None
|
LADDLUFTK./INTERCOOLER
|
| 43. |
VOE13943472
|
[0002] |
Hose clamp
|
|
