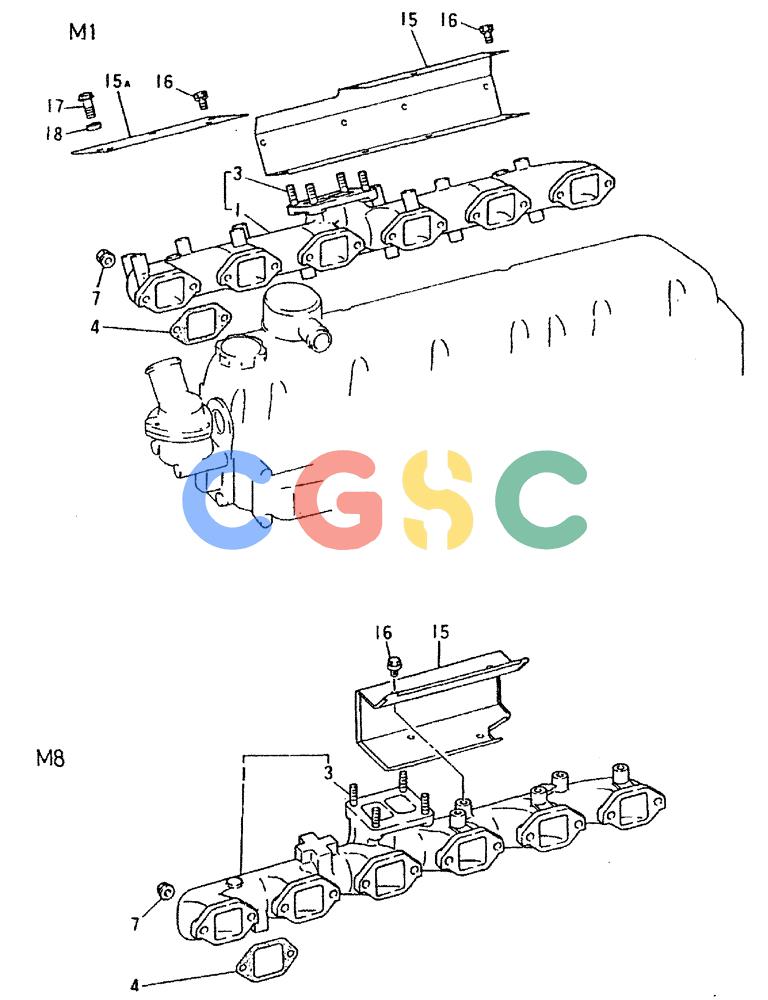

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (01-029) - EXHAUST MANIFOLD P/N ME070519 Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
655 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-3. | VAME070519 | [1] | EXHAUST MANIFOLD | KOBASSY, M1 ONLY |
| . . | VAME070895 | [1] | M8 ONLY | |
| 1. | VAME070487 | [1] | MANIFOLD, EXH M1 ONLY | |
| . . | VAME070896 | [1] | M8 ONLY | |
| 3. | VAMF407728 | [4] | STUD | KOB10 X 30 Superseded by part number: 134865A1 |
| . . | VAME033496 | [6] | GASKET | KOBEXH MANIF Superseded by part number: VAME073957 |
| 7. | VAMH004054 | [12] | NUT | KOBFLANGE 10 Superseded by part number: 134868A1 |
| 15. | VAME047329 | [1] | INSULATOR, HEAT RE M8 ONLY | |
| . . | VAME070989 | [1] | INSULATOR | KOBM1 ONLY |
| 15A. | VAME070990 | [1] | INSULATOR | KOBHEAT FR M1 ONLY |
| 16. | VAMH000392 | [11] | BOLT | KOBW/WSR 8 X 12 |
| 17. | VAMH000676 | [2] | SCREW | KOBFLANGE 10 X 20 M1 ONLY |
| 18. | VAMH005032 | [2] | WASHER | KOBT=4.5 M1 ONLY |
