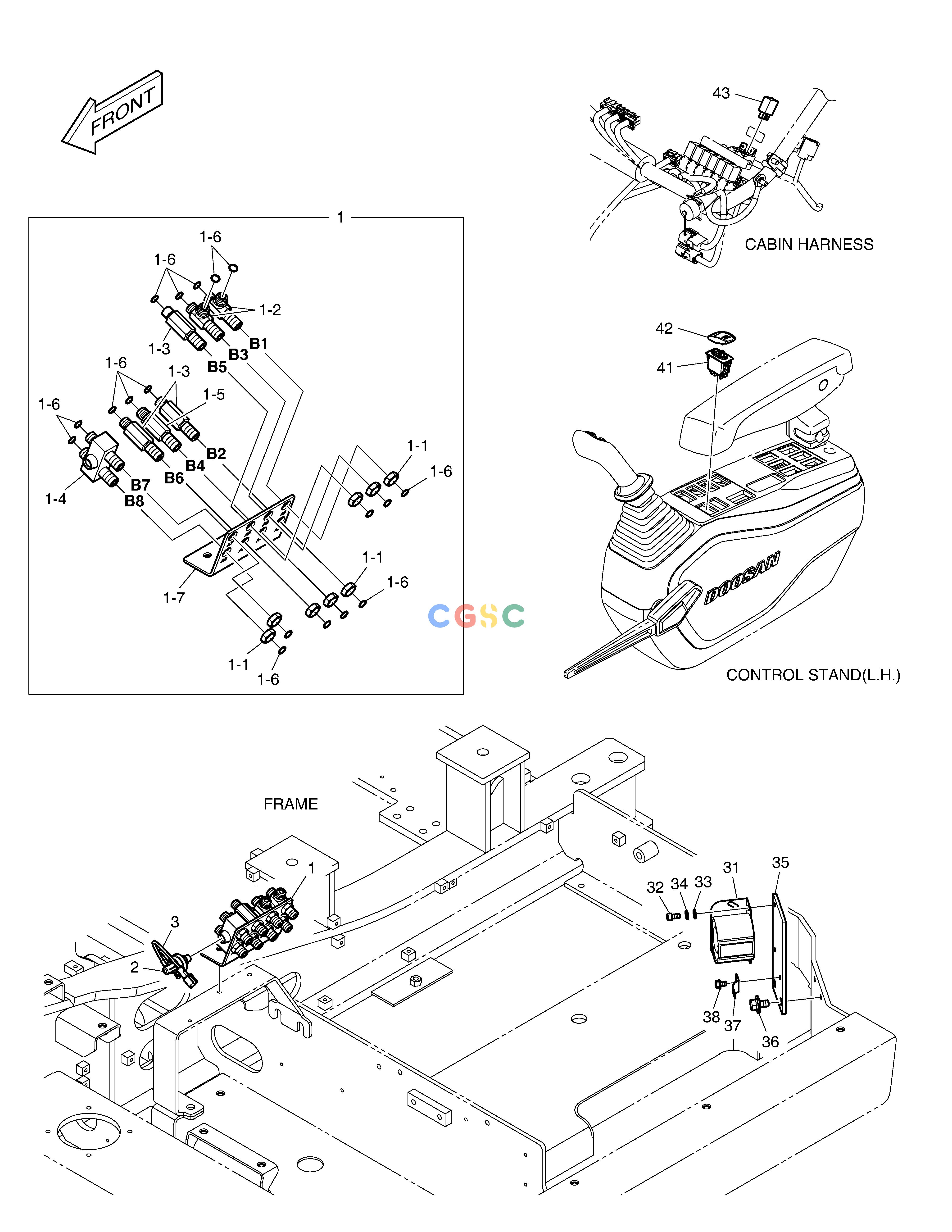

斗山零件查询SWING ALARM DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
706 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07154
|
[-] |
|
|
| 1. |
430216-00157
|
[1] |
|
|
| 1-1. |
DS0301032
|
[8] |
NUT
|
|
| 1-2. |
DS2416002
|
[2] |
|
|
| 1-3. |
DS2415019
|
[3] |
|
|
| 1-4. |
410134-00019
|
[1] |
|
|
| 1-5. |
410133-00003D6
|
[1] |
|
|
| 1-6. |
S8030061
|
[18] |
O-RING
|
|
| 1-7. |
250122-00080A
|
[1] |
|
|
| 2. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 3. |
530-00067
|
[1] |
HARNESS
|
|
| 31. |
516-00011
|
[1] |
BUZZER
|
|
| 32. |
S2208666
|
[2] |
BOLT
|
|
| 33. |
S5010513
|
[2] |
WASHER
|
|
| 34. |
S5102503
|
[2] |
. WASHER
|
|
| 35. |
110406-01491
|
[1] |
|
|
| 36. |
DS0025019
|
[2] |
BOLT
|
|
| 37. |
2197-1661
|
[1] |
BRACKET
|
|
| 38. |
K1001029
|
[1] |
BOLT
|
|
| 41. |
549-00103
|
[1] |
SWITCH
|
|
| 42. |
301401-00010
|
[1] |
|
|
| 43. |
K1053326
|
[1] |
RELAY
|
|
