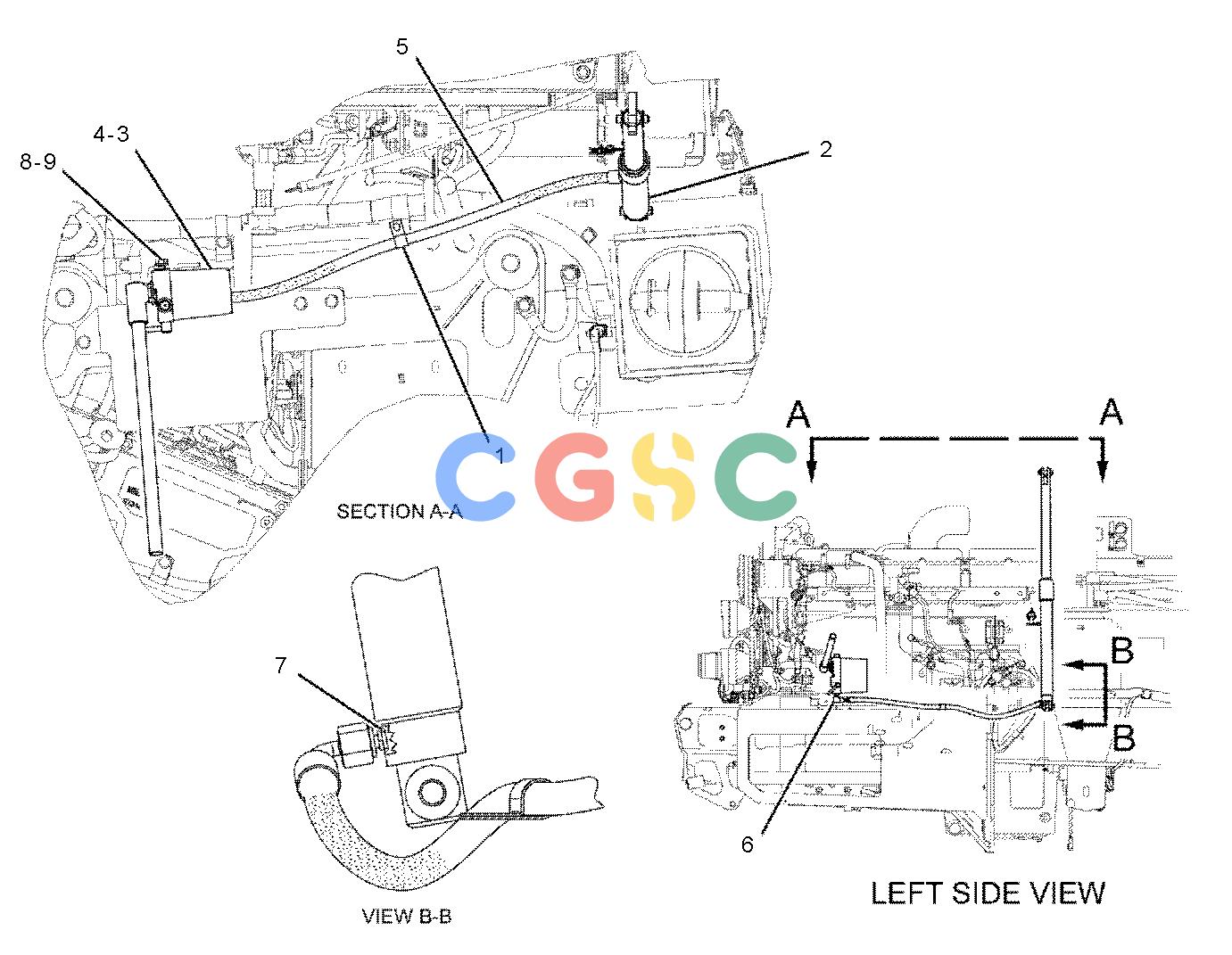

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3U-2753 | [1] | CLIP | |
| 2. | 183-3513Y | [1] | CYLINDER GP-CAB TILT | |
| 3. | 183-3514 | [1] | PUMP GP-CAB TILT | |
| 4. | 184-5858 | [1] | HANDLE | |
| 5. | 185-2588I | [1] | HOSE AS | |
| 6. | 123-8829 | [1] | ELBOW AS | |
| 4J-5477 | [1] | SEAL-O-RING | ||
| 8T-7876 | [1] | SEAL-O-RING | ||
| 7. | 4J-5477 | [1] | SEAL-O-RING | |
| 8. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
