沃尔沃零件查询A25 VOLVO BM Brake unitVOLVO BM A254720593-4880206NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
361 次

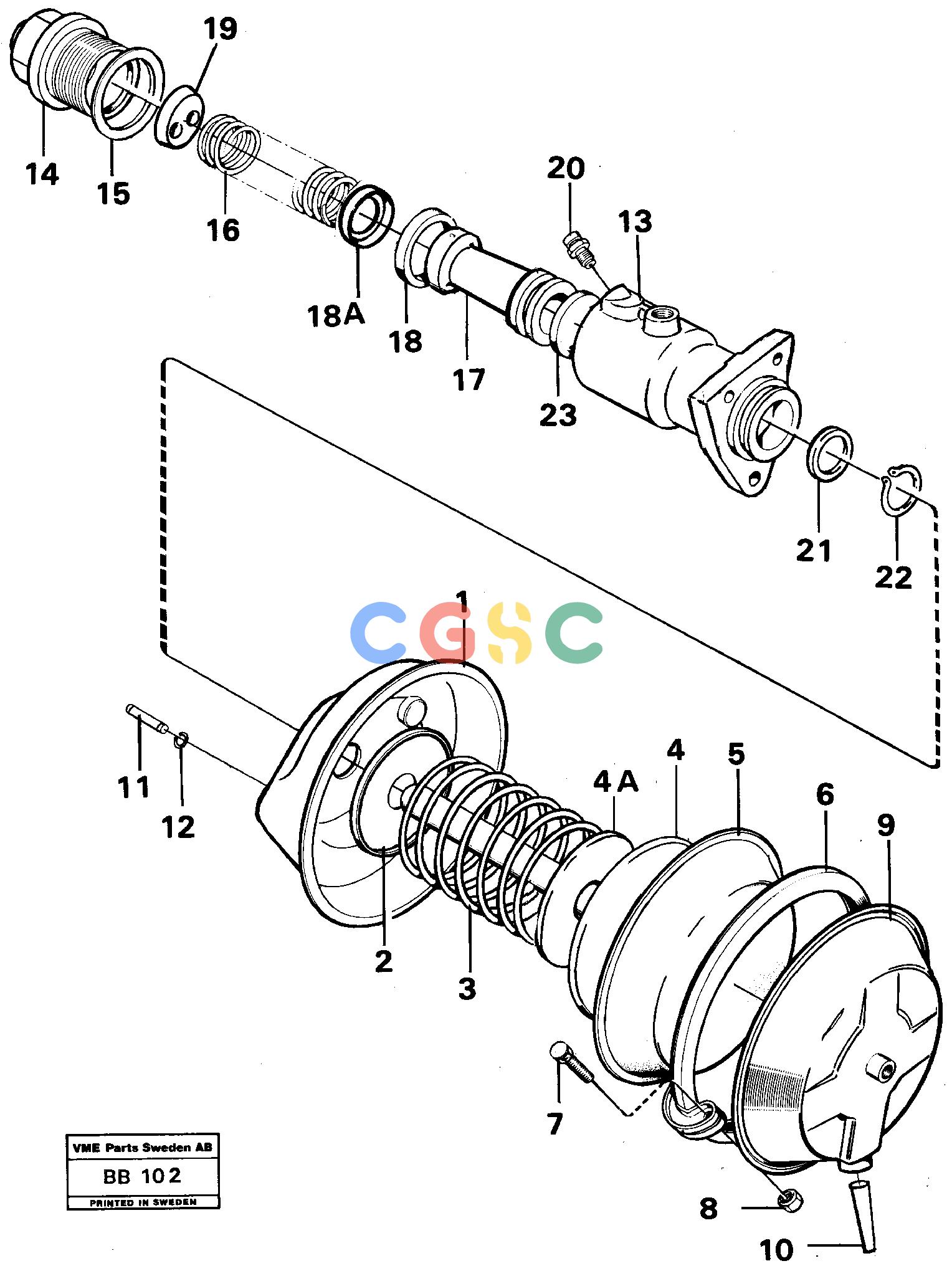

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4720593
|
[1] |
Diaphragm cylinder
|
|
| 1. |
|
[1] |
Housing
|
|
| 2. |
VOE6211357
|
[1] |
Guide
|
|
| 3. |
VOE11994545
|
[1] |
Spring
|
|
| 4. |
VOE11020727
|
[1] |
Diaphragm cylinder
|
|
| 4A. |
VOE11994561
|
[1] |
Spring disc
|
|
| 5. |
VOE6211358
|
[1] |
Diaphragm
|
|
| 6. |
VOE11996068
|
[2] |
Clamp
|
|
| 7. |
VOE955299
|
[2] |
Hexagon screw
|
|
| 8. |
VOE955782
|
[2] |
Hexagon nut
|
|
| 9. |
|
[1] |
Cover
|
|
| 10. |
VOE6211359
|
[1] |
Hose
|
|
| 11. |
|
[1] |
Indicator rod
|
|
| 12. |
|
[2] |
Snap ring
|
|
| |
VOE4880206
|
|
Master cylinder
|
ERS AV 4881429
|
| |
VOE4881429
|
|
Master cylinder
|
SER NO 4443 -
|
| 13. |
|
|
Housing
|
|
| 14. |
VOE6210800
|
|
Cap
|
|
| |
|
|
Cover
|
|
| 15. |
VOE6210804
|
|
Gasket
|
|
| |
VOE6213443
|
|
Gasket
|
|
| 16. |
VOE6210806
|
|
Spring
|
|
| |
VOE11702271
|
|
Spring
|
|
| 17. |
VOE11991532
|
|
Piston
|
|
| |
|
|
Piston
|
|
| 18. |
VOE11999825
|
|
Sealing ring
|
|
| |
VOE6210808
|
|
Sealing ring
|
|
| 18A. |
VOE6213309
|
|
Back-up ring
|
|
| 19. |
VOE6210805
|
|
Washer
|
|
| 20. |
VOE6852537
|
|
Air Venting Scr
|
|
| 21. |
VOE6210809
|
|
Washer
|
|
| 22. |
VOE6210810
|
|
Snap ring
|
|
| 23. |
VOE6210808
|
|
Sealing ring
|
|
| |
|
|
Seal ring
|
|
| |
VOE11998372
|
|
Repair kit
|
|
| |
VOE11998372
|
|
Repair kit
|
|
