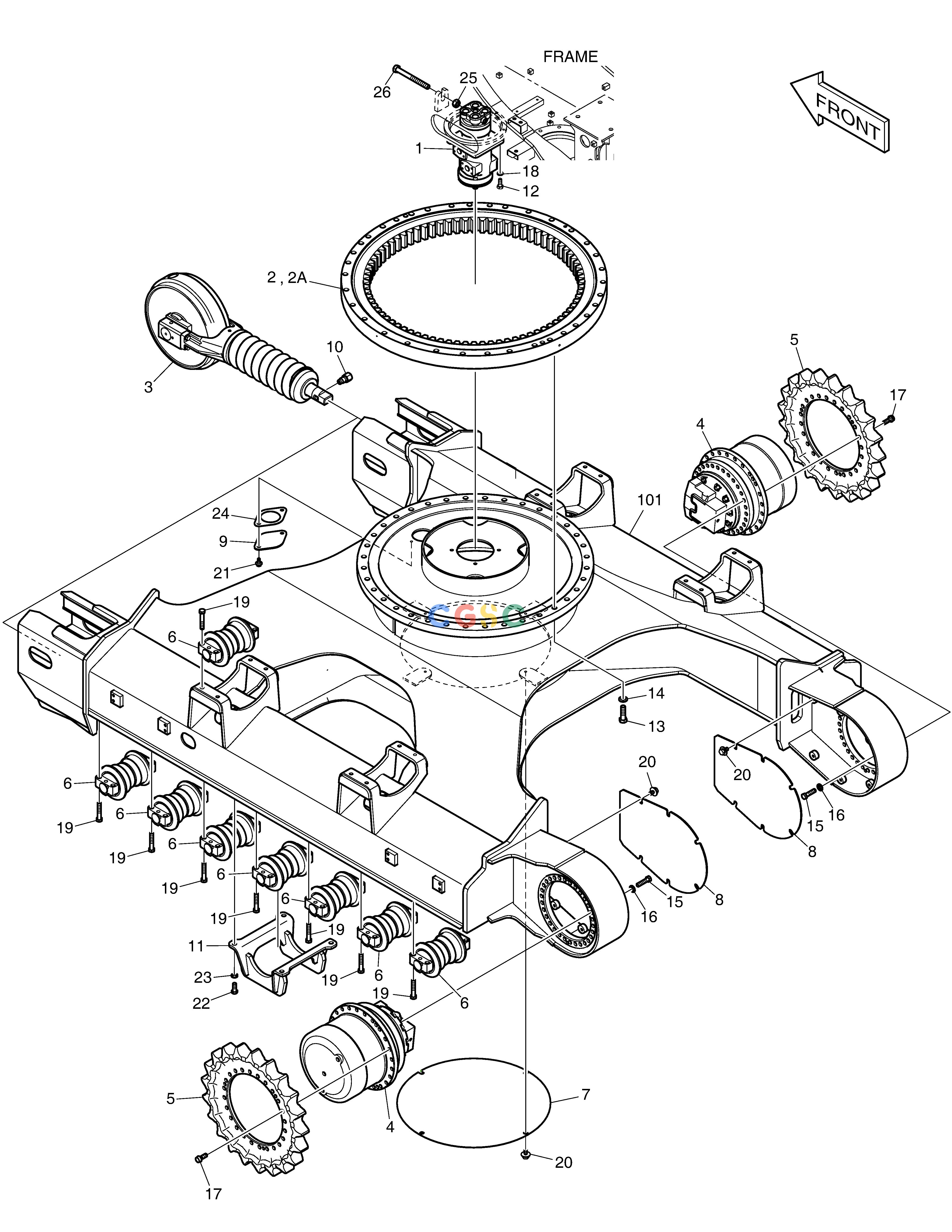

斗山零件查询TRACK FRAME - HIGH TARCK DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
274 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
160617-00281
|
[-] |
|
|
| 1. |
400826-00011A
|
[1] |
JOINT,CENTER
|
|
| 10. |
422-00055
|
[2] |
VALVE;GREASE
|
|
| 101. |
160617-00347
|
[1] |
|
|
| 11. |
K1011994
|
[2] |
GUARD;TRACK
|
|
| 12. |
S0515266
|
[4] |
BOLT
|
|
| 13. |
S0770266
|
[36] |
BOLT M20X1.5X70
|
|
| 14. |
2114-9012A
|
[36] |
WASHER
|
|
| 15. |
S0565566
|
[60] |
BOLT
|
|
| 16. |
2114-1816A
|
[60] |
WASHER
|
|
| 17. |
120-00050B
|
[48] |
BOLT;FLANGE
|
|
| 18. |
S5102703
|
[4] |
WASHER
|
|
| 19. |
S0766066
|
[72] |
BOLT M16X1.5X90
|
|
| 2. |
140109-00016A
|
[1] |
|
|
| 20. |
DS0025019
|
[16] |
BOLT
|
|
| 21. |
DS0025016
|
[2] |
BOLT
|
|
| 22. |
S0721466
|
[8] |
BOLT M16X1.5X40
|
|
| 23. |
S5102903
|
[8] |
WASHER
|
|
| 24. |
180-00463
|
[1] |
PACKING
|
|
| 25. |
S4013133
|
[1] |
NUT
|
|
| 26. |
S0571866
|
[1] |
BOLT M20X2.5X170
|
|
| 2A. |
401107-00751
|
[2] |
. SEAL,SWING BEARING
|
|
| 3. |
200101-00035A
|
[2] |
|
|
| 4. |
170401-00059A
|
[2] |
|
|
| 5. |
200108-00017A
|
[2] |
|
|
| 6. |
200104-00030A
|
[18] |
ROLLER ASSY,LOWER
|
|
| 7. |
110513-00242
|
[1] |
|
|
| 8. |
110508-01197A
|
[2] |
|
|
| 9. |
621-02938B
|
[1] |
COVER
|
|
