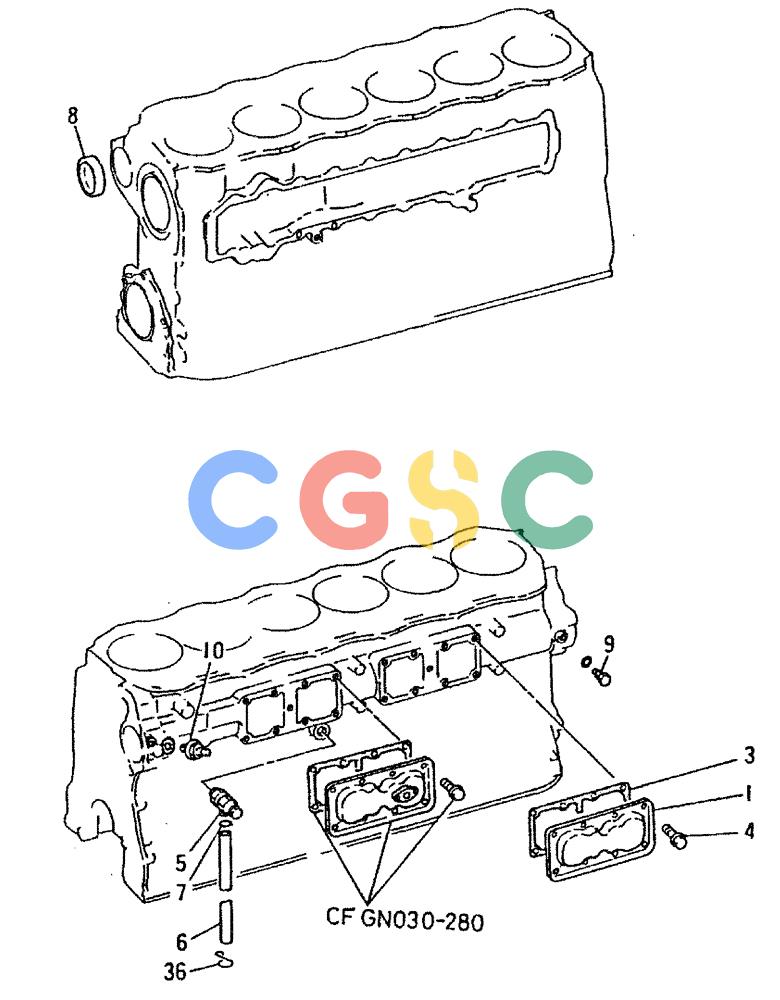

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (01-035) - ENGINE ATTACHING PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
332 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME031944 | [1] | COVER | KOB Superseded by part number: VAME071320 |
| 3. | VAME031155 | [1] | GASKET | KOBSIDE COVER Superseded by part number: 77269054, VAME071274 |
| 4. | VAMF140221 | [8] | BOLT | KOBBOLT, FLANGE, 8X12 |
| 5. | VAME031455 | [1] | COCK | KOB |
| 6. | VAME050910 | [1] | HOSE | KOBPIPE, DRAIN, L=950 |
| . . | VA3110704800 | [1] | PIPE DRAIN PIPE, DRAIN, L=300 | PIPE DRAIN PIPE, DRAIN, L=300 |
| 7. | VAMS666040 | [1] | CLAMP | KOBCLAMP 16 |
| 8. | VAME031058 | [1] | CAP | KOBSEALING |
| 9. | VAME031087 | [1] | SET OF SCREWS | KOB |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 10. | VAMH038934 | [1] | HYD CONNECTOR | KOBCONNECTOR, FOR TURBOCHARGER, M10-M14 |
| . . | VAMH038934 | [1] | HYD CONNECTOR | KOBM10-M14 |
| 36. | VAMH021013 | [1] | CLAMP CLAMP | CLAMP CLAMP |
