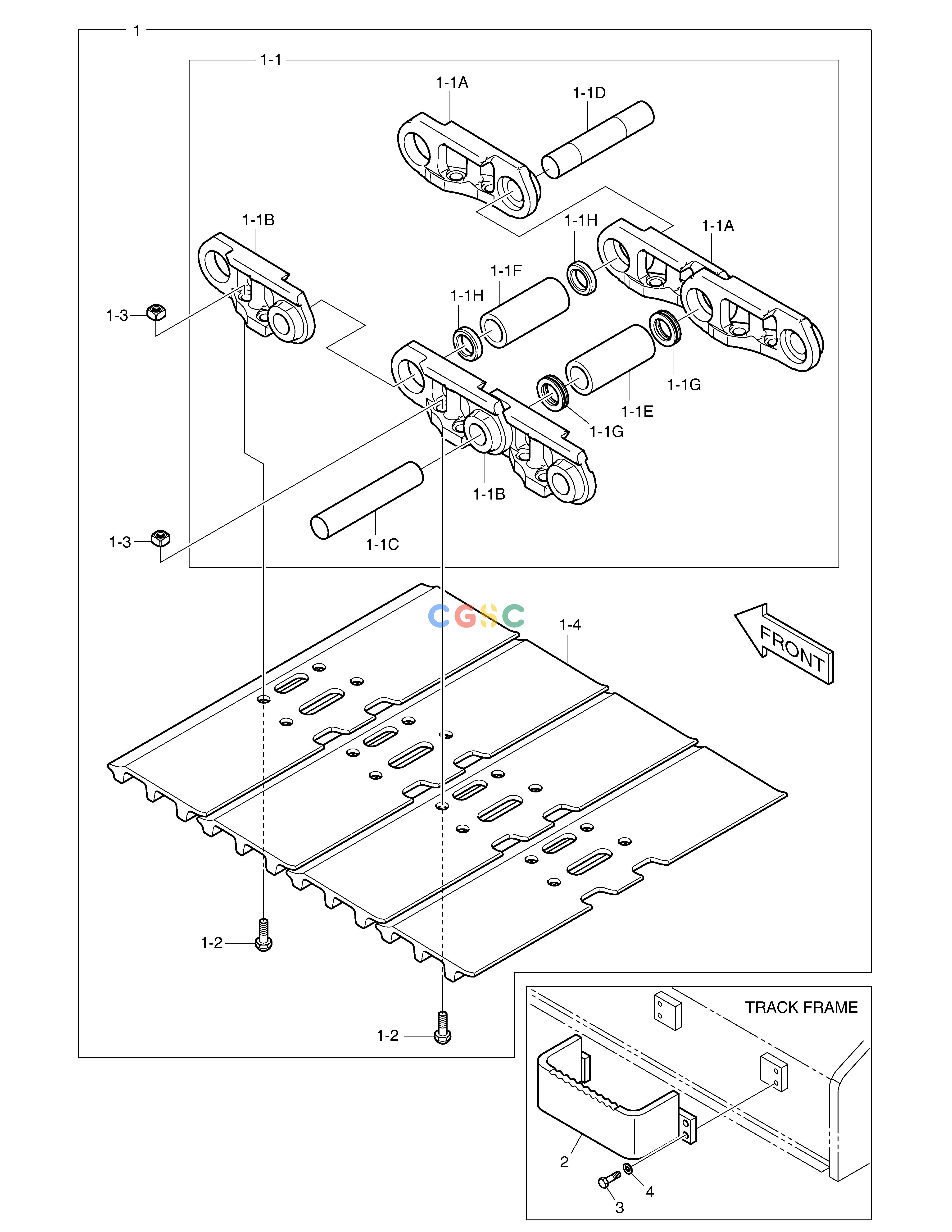

斗山零件查询TRACK SHOE ASS'Y - 700G DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
856 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
200106-00240
|
[-] |
|
|
| 1. |
200106-00245
|
[2] |
|
|
| 1-1. |
200103-00103
|
[1] |
|
|
| 1-1A. |
101539-00157
|
[44] |
|
|
| 1-1B. |
101539-00158
|
[44] |
|
|
| 1-1C. |
K1014781
|
[43] |
PIN;REGULAR
|
|
| 1-1D. |
120501-01892
|
[1] |
|
|
| 1-1E. |
K1014779
|
[43] |
BUSHING;REGULAR
|
|
| 1-1F. |
K1014778
|
[1] |
BUSHING;MASTER
|
|
| 1-1G. |
K1014777
|
[86] |
SEAL;DUST
|
|
| 1-1H. |
K1014776
|
[2] |
SPACER
|
|
| 1-2. |
K1014774
|
[176] |
BOLT
|
|
| 1-3. |
K1014773
|
[176] |
NUT
|
|
| 1-4. |
K1024599
|
[44] |
SHOE 700mm
|
|
| 2. |
K1050293
|
[4] |
STEP
|
|
| 3. |
S0515366
|
[16] |
BOLT
|
|
| 4. |
S5102703
|
[16] |
WASHER
|
|
