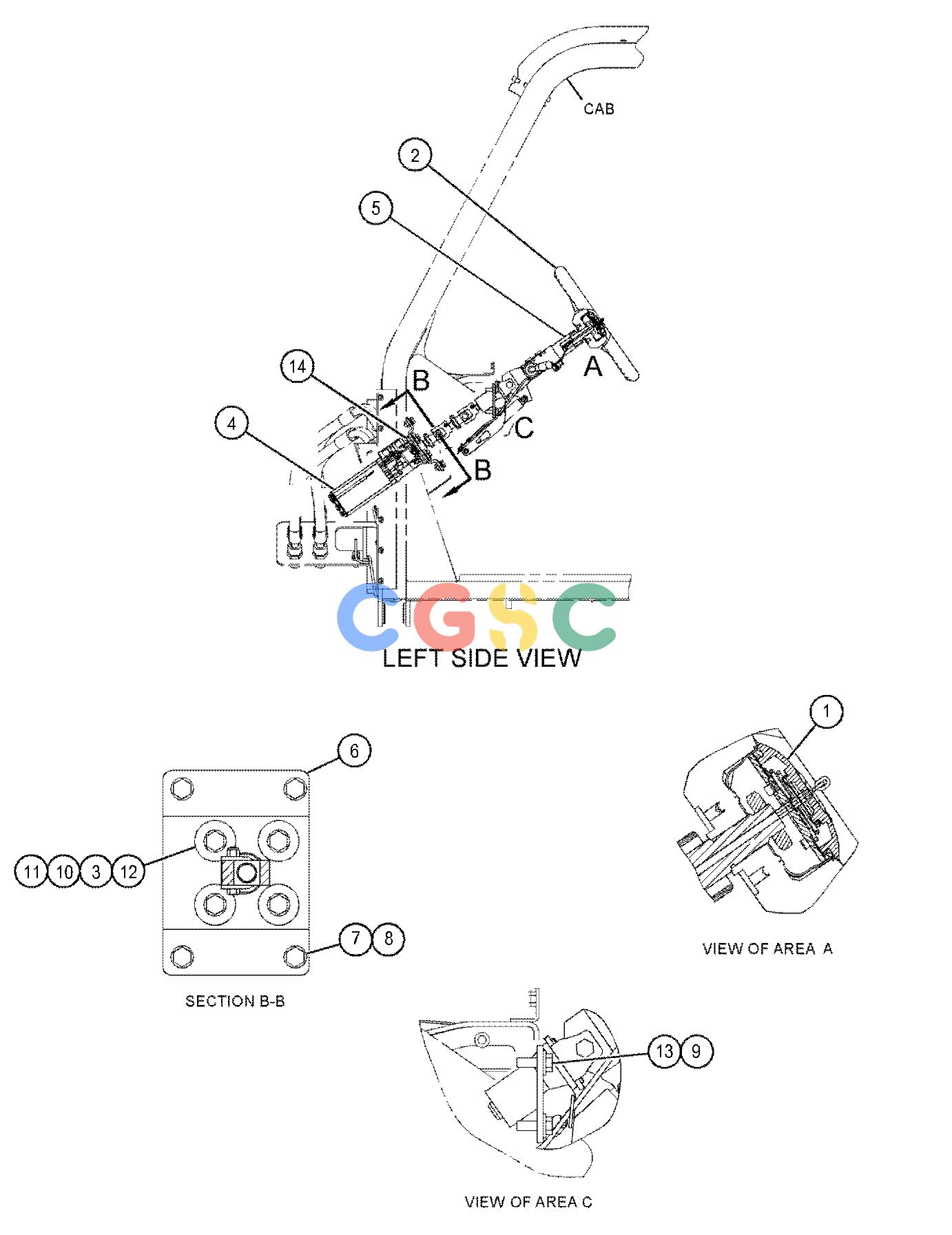

卡特零件查询（725） 149-0065: CONTROL GP-STEERING
广数供应链运营团队, 14 02月, 2025，浏览：
678 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 322-8568 | [1] | BUTTON AS-HORN | |
| 2. | 363-5911 | [1] | STEERING WHEEL AS | |
| | 363-6423 | [1] | PLUG | |
| 3. | 6N-6984 | [4] | MOUNT-RUBBER | |
| 4. | 223-7718CJ | [1] | PUMP GP-METERING(HMU) | |
| 5. | 252-8050Y | [1] | STEERING COLUMN GP-ADJUSTABLE | |
| 6. | 191-1786 | [1] | PLATE AS | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 7. | 6V-4248M | [4] | BOLT(M10X1.5X25-MM) | |
| 8. | 6V-5839 | [4] | WASHER(11X21X2.5-MM THK) | |
| 9. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 10. | 7X-0632 | [8] | WASHER-HARD(11X36X6-MM THK) | |
| 11. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4182M | [4] | BOLT(M10X1.5X45-MM) | |
| 13. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 14. | 250-1058 | [1] | SHIM(1-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 227-4012J | [1] | KIT-SEAL | |
| | | | (INCLUDES SEALS, O-RING SEALS & WASHERS) |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
