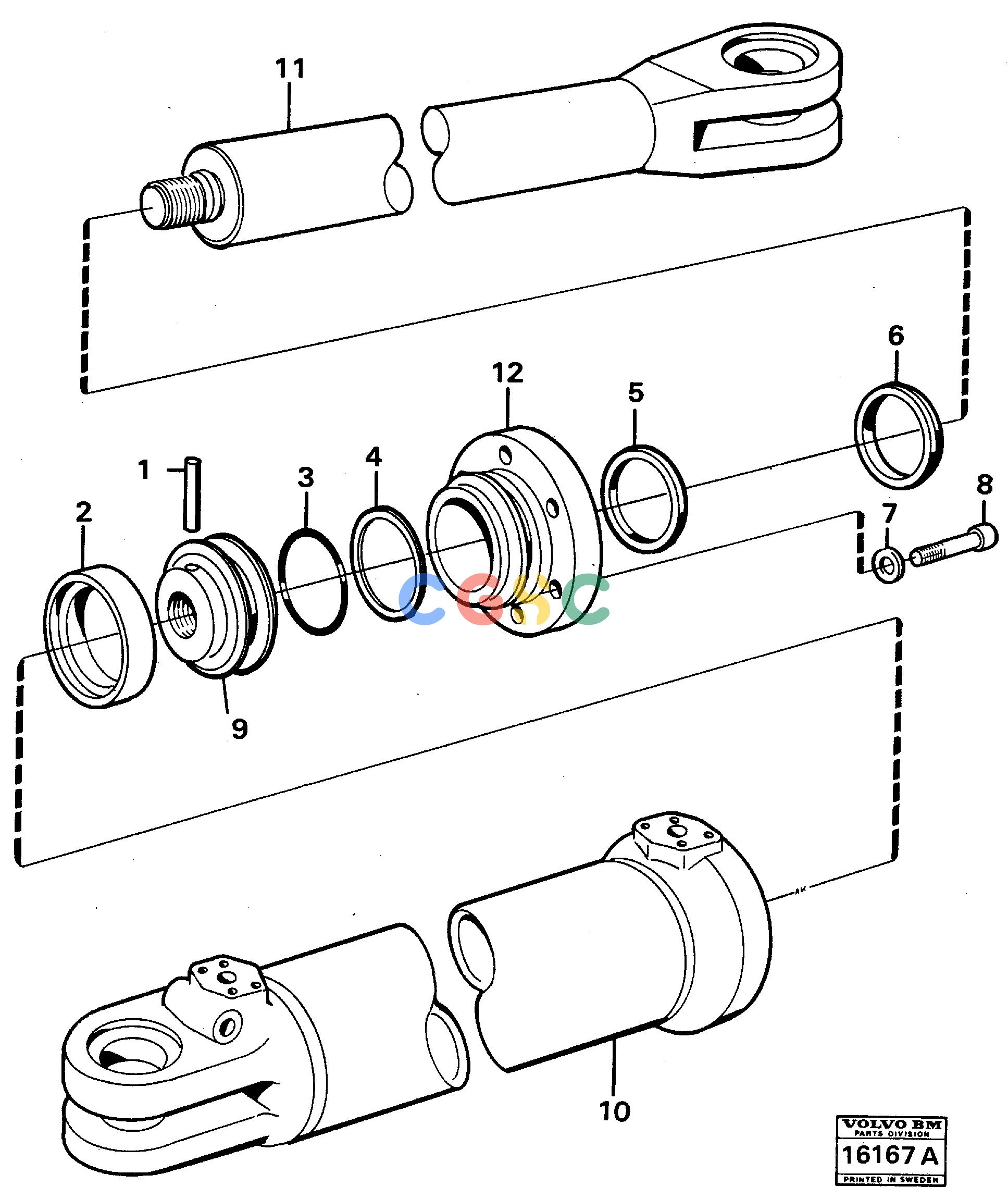

沃尔沃零件查询A25 VOLVO BM Steering cylinderVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
971 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4786834
|
[0001] |
Back-up ring
|
|
| 5. |
VOE4784048
|
[0001] |
Piston rod seal
|
|
| 6. |
VOE11005057
|
[0001] |
Scraper ring
|
|
| 7. |
VOE941908
|
[0008] |
Spring washer
|
|
| 8. |
VOE4782858
|
[0008] |
Screw
|
|
| |
VOE4833274
|
[0001] |
Hydraulic cylinder
|
|
| 9. |
VOE4782099
|
[0001] |
Piston
|
|
| 10. |
VOE4782850
|
[0001] |
Cylinder tube
|
|
| 11. |
VOE4784845
|
[0001] |
Piston rod
|
|
| 12. |
VOE4784972
|
[0001] |
Piston rod guide
|
|
| |
VOE6630443
|
[0001] |
Gasket kit
|
|
| 1. |
VOE4782719
|
[0001] |
Spring pin
|
|
| 2. |
VOE4833025
|
[0001] |
Seal
|
|
| 3. |
VOE925079
|
[0001] |
O-ring
|
|
