神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (01-049) - TACHOMETER GEAR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
532 次

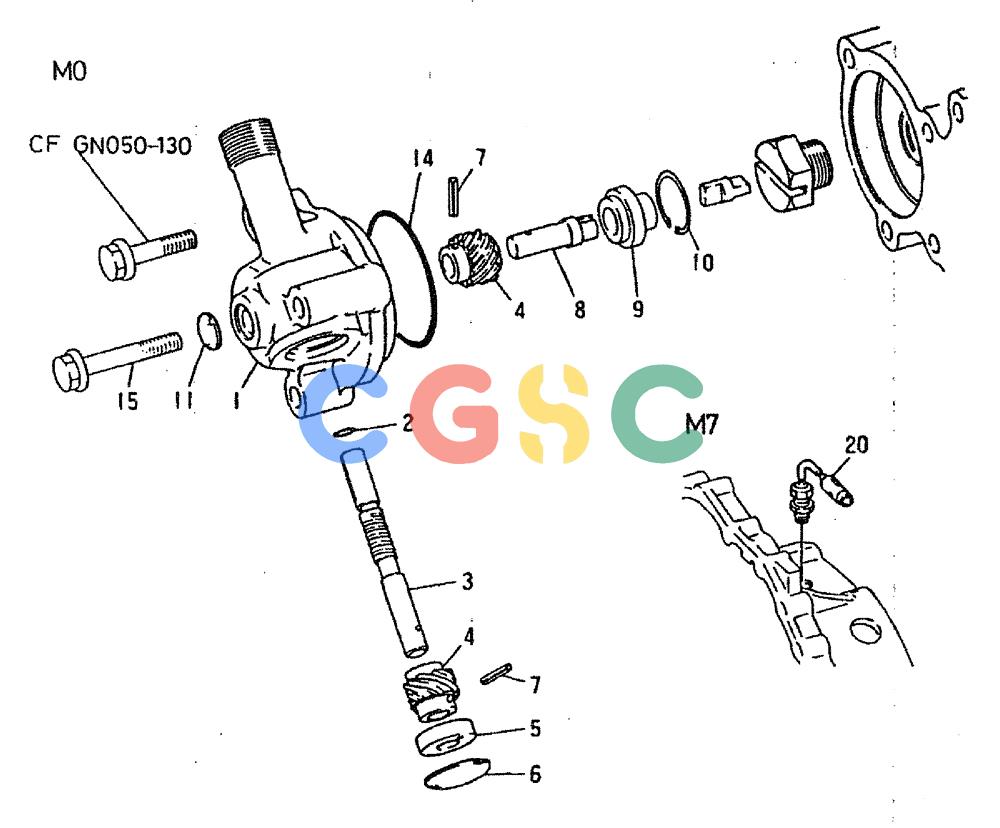

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-11. | VAME047542 | [1] | TACHOMETER DRIVE ASSY, M22 X 1.5 | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCASE, TACHO DRIVE |
| 2. | VAMH035109 | [1] | O-RING | |
| 3. | VAME068010 | [1] | SHAFT | |
| 4. | VAME068007 | [2] | GEAR Z=14 | GEAR Z=14 |
| 5. | VAME038075 | [1] | BUSHING | BUSHING |
| 6. | VAMF665508 | [1] | PLUG, EXPANSION 28 | |
| 7. | VAMF472537 | [2] | PIN SPRING PIN, SPG, 3 X 18 | PIN SPRING PIN, SPG, 3 X 18 |
| 8. | VAME038073 | [1] | SHAFT, TACHO DRIVE | |
| 9. | VAME038074 | [1] | RETAINER | |
| 10. | VAMF522215 | [1] | RING, SNAP 25 | |
| 11. | VAMF665503 | [1] | PLUG | KOBPLUG, EXPANSION 15 |
| 14. | VAMH035501 | [1] | O-RING | KOBO-RING |
| 15. | VAMF140235 | [1] | BOLT | KOBBOLT, FLANGE, 8 X 50 |
| 20. | VAMC845235 | [1] | SENDER UNIT | KOBSENSOR, SPEED, M7 ONLY Superseded by part number: 240067A1 |
