斗山零件查询BREATHER PIPE DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
783 次

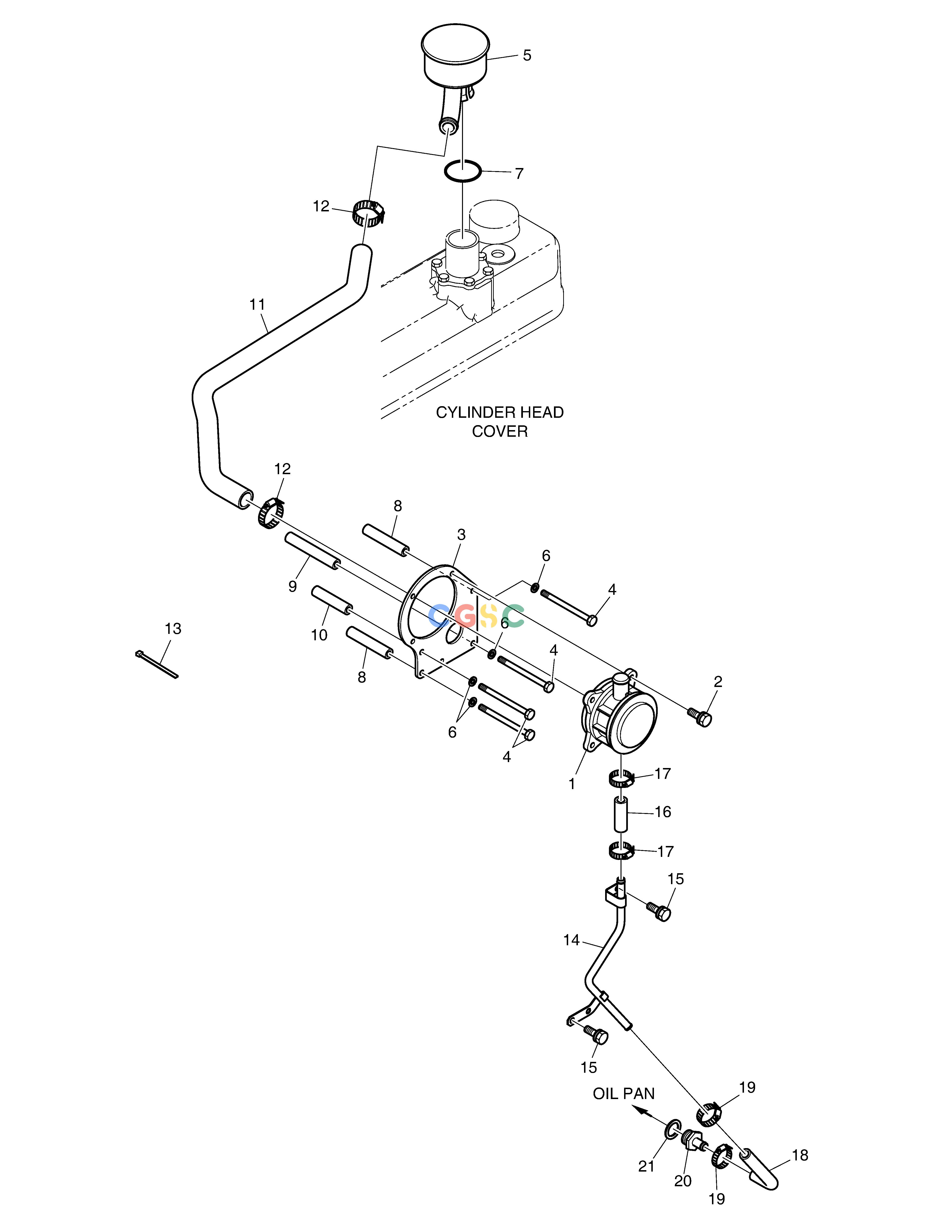

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.01801-5100
|
[1] |
. HOUSING;BREATHER
|
|
| 10. |
65.91701-0233
|
[1] |
SPACER
|
|
| 11. |
65.96301-0421
|
[1] |
HOSE;RUBBER
|
|
| 12. |
06.67020-0105
|
[2] |
CLAMP
|
|
| 13. |
65.97460-0002
|
[2] |
CABLE TIE
|
|
| 14. |
65.05701-5541
|
[1] |
PIPE;OIL
|
|
| 15. |
06.01923-3113
|
[3] |
BOLT ASS`Y M8X20
|
|
| 16. |
65.96301-0422A
|
[1] |
HOSE;RUBBER
|
|
| 17. |
06.67020-0101
|
[2] |
CLAMP;HOSE
|
|
| 18. |
65.96301-0386
|
[1] |
HOSE;RUBBER
|
|
| 19. |
06.67020-0101
|
[2] |
CLAMP;HOSE
|
|
| 2. |
06.01923-3114
|
[4] |
BOLT ASS`Y M8X22
|
|
| 20. |
65.98131-0119
|
[1] |
NIPPLE
|
|
| 21. |
06.56190-0719
|
[1] |
RING;SEAL
|
|
| 3. |
65.01840-0008A
|
[1] |
BRACKET;BREATHER PIPE
|
|
| 4. |
65.90001-0139
|
[4] |
BOLT;HEX. M8X150
|
|
| 5. |
65.01801-5035A
|
[1] |
BREATHER PIPE ASS`Y
|
|
| 6. |
06.16731-2107
|
[4] |
WASHER
|
|
| 7. |
65.96501-0032B
|
[1] |
O-RING;BREATHER
|
|
| 8. |
65.91701-0197
|
[2] |
SPACER
|
|
| 9. |
65.91701-0199
|
[1] |
SPACER
|
|
