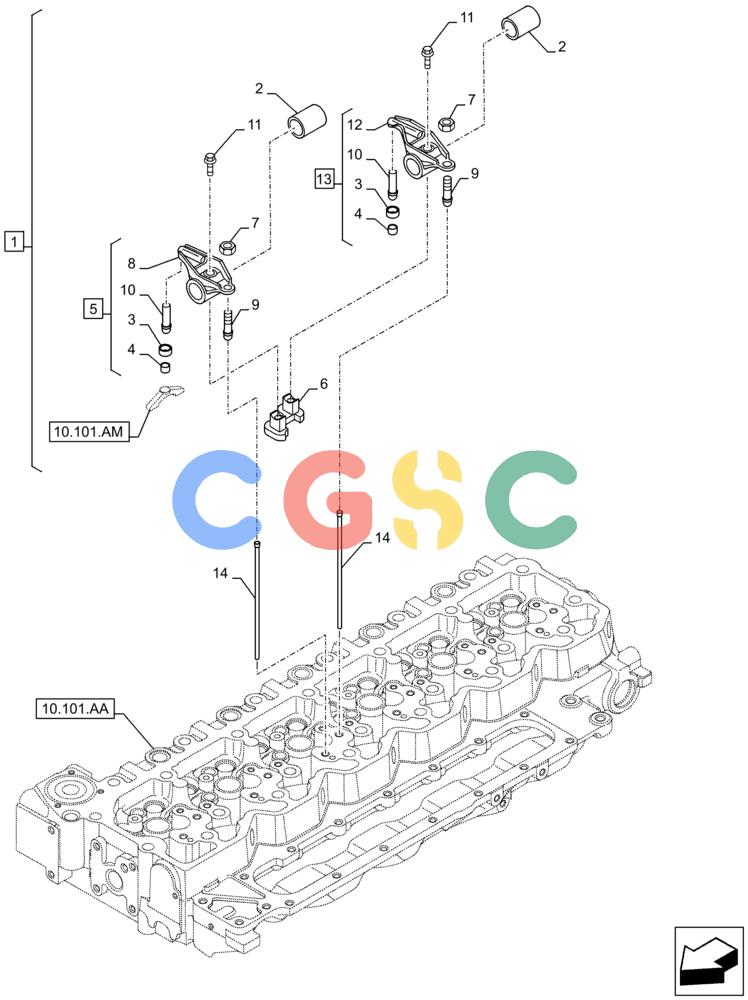

纽荷兰零件查询(F4HFE6132 A003) - ENGINE 5801753676 - 47541755 (1/14-) (10.106.AO[01]) - ROCKER ARM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
652 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2859460 | [6] | ROCKER ARM | TORASSY, Incl 2 - 13 |
| 2. | 2856459 | [2] | ROCKER ARM | TOR |
| 3. | 2859464 | [2] | RETAINER | TOR Superseded by part number: |
| 4. | 2859465 | [2] | SOCKET | TOR Superseded by part number: |
| 5. | 2859461 | [1] | ROCKER ARM | TORASSY, Incl 3, 4, 7 - 10 |
| 6. | 2859463 | [1] | SUPPORT | TOR Superseded by part number: |
| 7. | 2859467 | [2] | NUT | TOR Superseded by part number: |
| 8. | NSS | [1] | NOT SERVICED SEPARATELY | CONArm, Incl in 5 |
| 9. | 2859468 | [2] | ADJUSTMENT SCREW,3/8" - 24 x 23.85mm | TOR |
| 10. | 2859470 | [2] | SOCKET | TOR |
| 11. | 2856460 | [2] | BOLT,Flng, M8 x 1.25 x 55.5mm, Cl 10.9 | TOR |
| 13. | 2859462 | [1] | ROCKER ARM | TORASSY, Incl 3, 4, 7, 9, 10, 12 |
| 14. | 4895031 | [12] | PUSH ROD | TOR |
