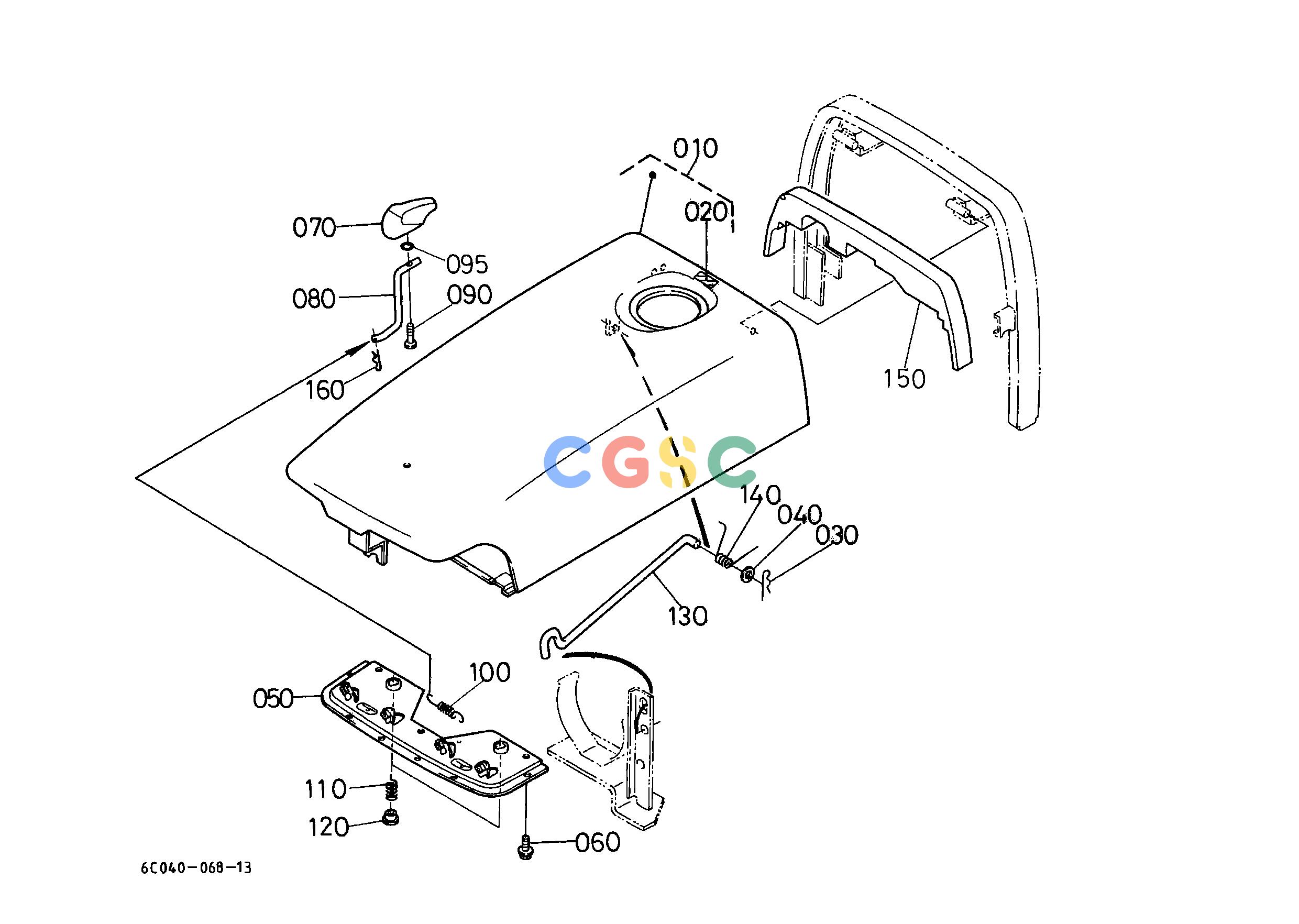

久保田零件查询M10500 HOOD (BONNET) HOOD/BONNETEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
879 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04054000
|
[1] |
KIT BONNET
|
16.7200(lbs); 7.600
|
| 020. |
6C04047410
|
[1] |
LABEL FILLER CAUTION
|
0.0022(lbs); 0.001
|
| 020. |
6C04047412
|
[1] |
LABEL FILLER CAUTION
|
0.0022(lbs); 0.001
|
| 030. |
0552550800
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 040. |
0401360080
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 050. |
6C04054110
|
[1] |
COVER BONNET
|
1.1440(lbs); 0.520
|
| 050. |
H6C0054110
|
[1] |
COVER BONNET
|
1.1440(lbs); 0.520
|
| 060. |
0112560816
|
[3] |
BOLT
|
0.0220(lbs); 0.010
|
| 070. |
6C04054260
|
[1] |
HANDLE MASCOT
|
0.0616(lbs); 0.028
|
| 080. |
6C04054270
|
[1] |
LEVER HANDLE
|
0.1980(lbs); 0.090
|
| 080. |
6C04054273
|
[1] |
LEVER HANDLE
|
0.0000(lbs); 0.000
|
| 080. |
6C04054274
|
[1] |
LEVER HANDLE
|
0.1760(lbs); 0.080
|
| 080. |
6C09054270
|
[1] |
LEVER HANDLE
|
0.1980(lbs); 0.090
|
| 090. |
0361450416
|
[1] |
SCREW TAPPING
|
0.0044(lbs); 0.002
|
| 095. |
0481110080
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
6C04054150
|
[1] |
SPRING
|
0.0132(lbs); 0.006
|
| 110. |
6C04054163
|
[2] |
SPRING
|
0.0484(lbs); 0.022
|
| 120. |
4118261150
|
[2] |
PLUG
|
0.0066(lbs); 0.003
|
| 130. |
6C04054250
|
[1] |
ROD BONNET
|
0.3520(lbs); 0.160
|
| 140. |
6C04054510
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 150. |
6C04054460
|
[1] |
TAPE BONNET
|
0.0132(lbs); 0.006
|
| 160. |
0552550800
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
