沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DElectrical SystemRudder Indicator Kit, 290 DriveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
646 次

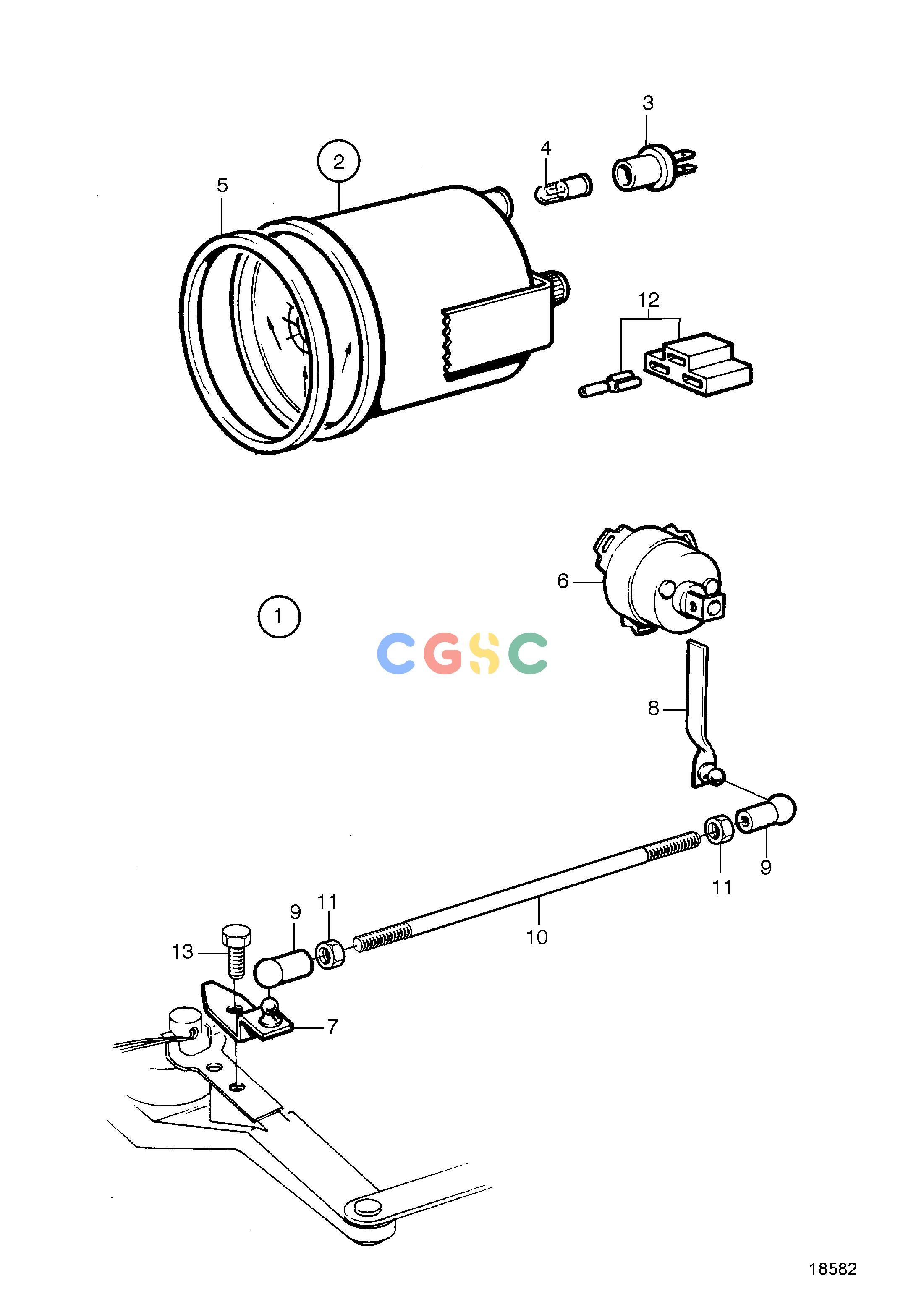

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1140463
|
[1] |
Rudder indicator kit
|
|
| 2. |
863944
|
[1] |
Rudder indicator
|
|
| 3. |
863945
|
[1] |
Bulb socket
|
|
| 4. |
863946
|
[1] |
Bulb
|
12V, 1,2W red
|
| 5. |
858643
|
[1] |
Front ring
|
|
| 6. |
837772
|
[1] |
Position sensor
|
|
| 7. |
853176
|
[1] |
Bracket
|
|
| 8. |
853177
|
[1] |
Intermediate lever
|
|
| 9. |
946704
|
[1] |
Ball socket
|
Left hand threads.
|
| 9. |
946703
|
[1] |
Ball socket
|
Right hand threads
|
| 10. |
943549
|
[1] |
Control rod
|
|
| 11. |
942836
|
[1] |
Hexagon nut
|
Left hand threads.
|
| 11. |
955780
|
[1] |
Hexagon nut
|
Right hand threads
|
| 12. |
7746610_105
|
|
electrical materials
|
|
| 13. |
940199
|
[1] |
Hexagon screw
|
|
