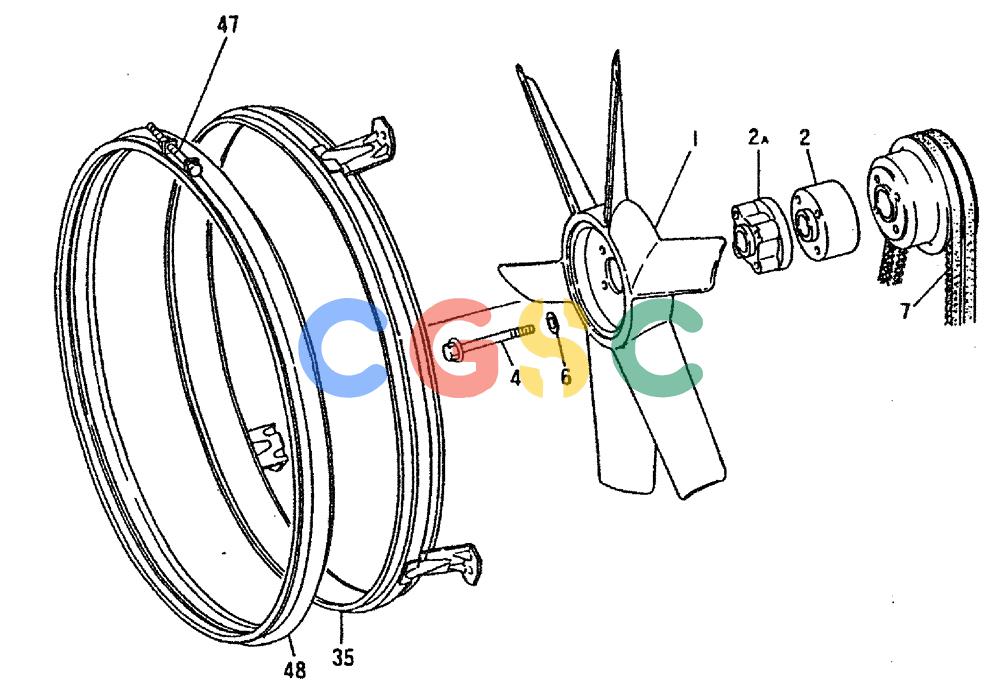

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (02-008) - FAN & PULLEY Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
906 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME070130 | [1] | FAN | KOBSUCTION TYPE, PPG, D=600 |
| 2. | VAME038888 | [1] | SPACER | KOBSPACER, FAN, L=45 |
| 2A. | VAME047507 | [1] | SPACER | KOBSPACER, FAN, L=40 |
| 4. | VAMH000830 | [4] | BOLT, FLANGE, 10 X 110 | |
| 6. | VAMH005027 | [4] | WASHER | KOBWASHER, PLAIN 10 |
| 7. | VAME035061 | [1] | BELT, TRANSMISSION | KOB2 BELTS SET, B L=1050 Superseded by part number: VAME902741 |
| 35. | VAME047494 | [1] | SHROUD, FAN | |
| 47. | VAMC012772 | [1] | CLAMP | KOBCLAMP, SEAL |
| 48. | VAMC015988 | [1] | OIL SEAL | KOBSEAL, SHROUD |
