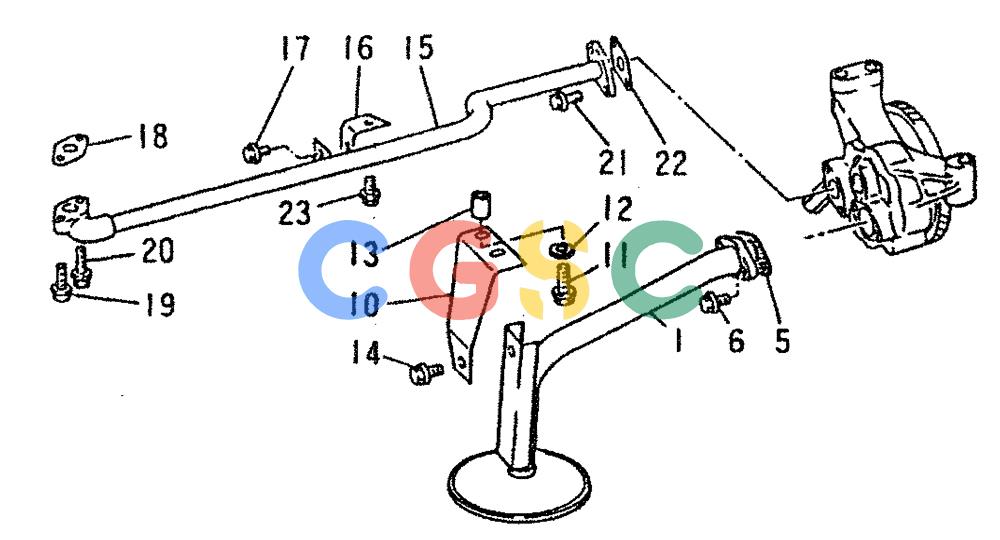

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (02-012) - OIL STRAINER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
977 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME037820 | [1] | STRAINER ELEMENT | KOB |
| 5. | VAME034033 | [1] | GASKET | KOB Superseded by part number: VAME074485 |
| 6. | VAMF140225 | [2] | BOLT | KOBBOLT, FLANGE 8X20 |
| 10. | VAME037824 | [1] | STAY | STAY |
| 11. | VAMF140233 | [2] | BOLT | KOBBOLT, FLANG,E 8X40 |
| 12. | VAMH005003 | [2] | WASHER | KOBWASHER Superseded by part number: 135079A1 |
| 13. | VA3163600901 | [2] | SPACER | KOBSPACER L=21.5 |
| 14. | VAMF140258 | [1] | BOLT,FLANGE(10X20) BOLT, FLANGE, 10X20 | BOLT,FLANGE(10X20) BOLT, FLANGE, 10X20 |
| 15. | VAME034027 | [1] | OIL PIPE | OIL PIPE |
| 16. | VAMH023365 | [1] | STAY STAY | STAY STAY |
| 17. | VAMF140221 | [1] | BOLT | KOBBOLT, FLANGE, 8X12 |
| 18. | VAMH035089 | [1] | GASKET | KOBGASKET Superseded by part number: VAME074486 |
| 19. | VAMF140229 | [1] | BOLT | KOBBOLT, FLANGE, 8X30 |
| 20. | VAMF140233 | [1] | BOLT | KOBBOLT, FLANGE, 8X10 |
| 21. | VAMF140225 | [2] | BOLT | KOBBOLT, FLANGE, 8X20 |
| 22. | VAME020663 | [1] | GASKET | KOB Superseded by part number: VAME074111 |
| 23. | VAMF140223 | [1] | BOLT | KOBBOLT, FLANGE, 8X16 |
