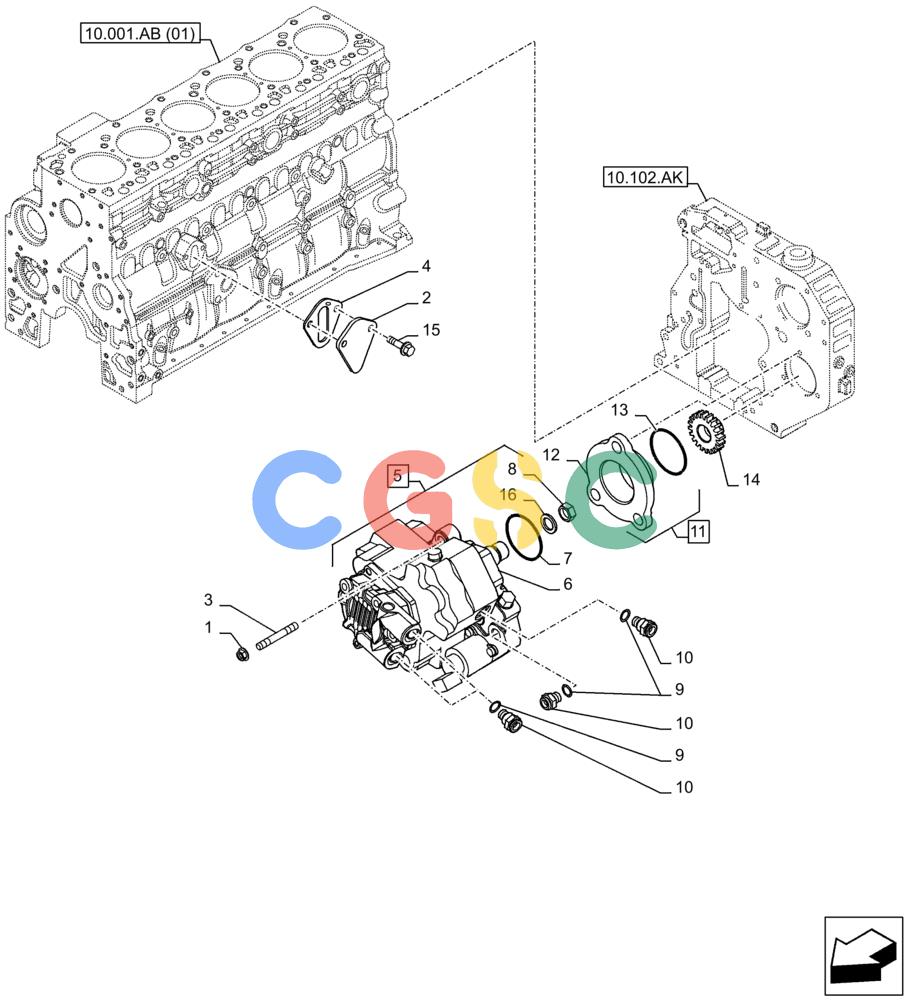

纽荷兰零件查询(F4HFE6132 A003) - ENGINE 5801753676 - 47541755 (1/14-) (10.218.AQ) - FUEL INJECTION PUMP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
631 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899003 | [3] | FLANGE NUT,M8 x 1.25 | TORM8 x 1.25 Superseded by part number: 17044735 |
| 2. | 4896952 | [1] | COVER | TOR |
| 3. | 2852488 | [3] | STUD | SMM8 x 1.25 x 50 |
| 4. | 4890700 | [1] | GASKET,1.21mm Thk | TOR |
| 5. | 84385110 | [1] | FUEL PUMP | TORASSY, Incl 6 - 10, 16 |
| 5. | 84385110R | [1] | REMAN-INJECTION PUMP | TOR |
| 5. | 84385110C | [1] | CORE-INJECTION PUMP | TORReturn Number |
| 6. | NSS | [1] | NOT SERVICED SEPARATELY | CONPump, Incl in 5 |
| 7. | 4890088 | [1] | O-RING,44mm ID x 3mm Width | TOR Superseded by part number: 42549209 |
| 8. | 4890634 | [1] | NUT | TOR |
| 9. | 4891385 | [4] | SEALING WASHER | TOR Superseded by part number: 42556616 |
| 10. | 4893962 | [4] | QUICK MALE COUPLING | TORM12 x 1.5 Superseded by part number: 42559146 |
| 11. | 2852804 | [1] | HUB | TORASSY, Incl 12, 13 Superseded by part number: 504041278 |
| 12. | 2852806 | [1] | ADAPTER | FAR |
| 13. | 2852805 | [1] | O-RING | TORID = 72.69 x 2.62 |
| 14. | 4893389 | [1] | DRIVEN GEAR | TOR |
| 15. | 2852234 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TORM8 x 20 Superseded by part number: 16978124 |
| 16. | 4890635 | [1] | SPRING WASHER | TOR Superseded by part number: 17095814 |
