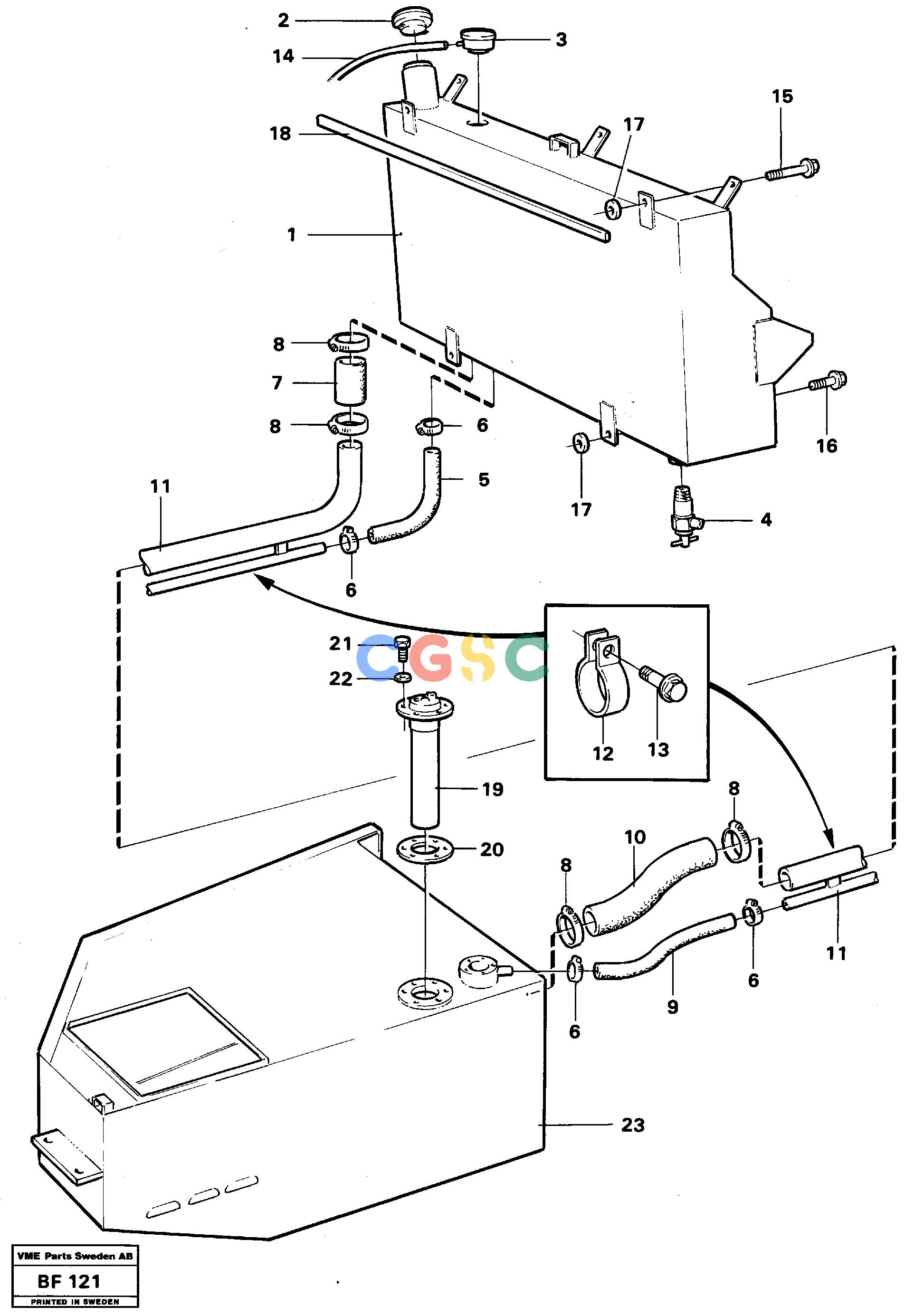

沃尔沃零件查询A25B Fuel tankA25B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11058047
|
[1] |
Fuel tank
|
|
| 2. |
VOE4821033
|
[1] |
Cover
|
|
| 3. |
VOE4940398
|
[1] |
Cover
|
|
| 4. |
VOE87502
|
[1] |
Drain Cock
|
|
| 5. |
VOE14016472
|
[REQ] |
Oil hose
|
L = 500
|
| 6. |
VOE13943474
|
[4] |
Hose clamp
|
|
| 7. |
VOE4940771
|
[REQ] |
Rubber hose
|
L = 150
|
| 8. |
VOE943479
|
[4] |
Hose clamp
|
|
| 9. |
VOE14016472
|
[REQ] |
Oil hose
|
L = 590
|
| 10. |
VOE4940771
|
[REQ] |
Rubber hose
|
L = 540
|
| 11. |
VOE4940768
|
[1] |
Fuel pipe
|
|
| 12. |
VOE941788
|
[2] |
Clamp
|
|
| 13. |
VOE13947760
|
[2] |
Screw
|
|
| 14. |
VOE192034
|
[REQ] |
Rubber hose
|
L = 600
|
| 15. |
VOE13947790
|
[2] |
Screw
|
|
| 16. |
VOE60113094
|
[2] |
Flange screw
|
|
| 17. |
VOE13948093
|
[4] |
Washer
|
|
| 18. |
VOE4864288
|
[1] |
Sealing strip
|
|
| 19. |
VOE4740537
|
[1] |
Tank unit
|
|
| 20. |
VOE4708245
|
[1] |
Gasket
|
|
| 21. |
VOE13955271
|
[6] |
Screw
|
|
| 22. |
VOE955892
|
[6] |
Plain washer
|
|
| 23. |
VOE11054817
|
[1] |
Overrider
|
|
