纽荷兰零件查询(F4HFE6132 A003) - ENGINE 5801753676 - 47541755 (1/14-) (10.254.AC) - EXHAUST MANIFOLD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
906 次

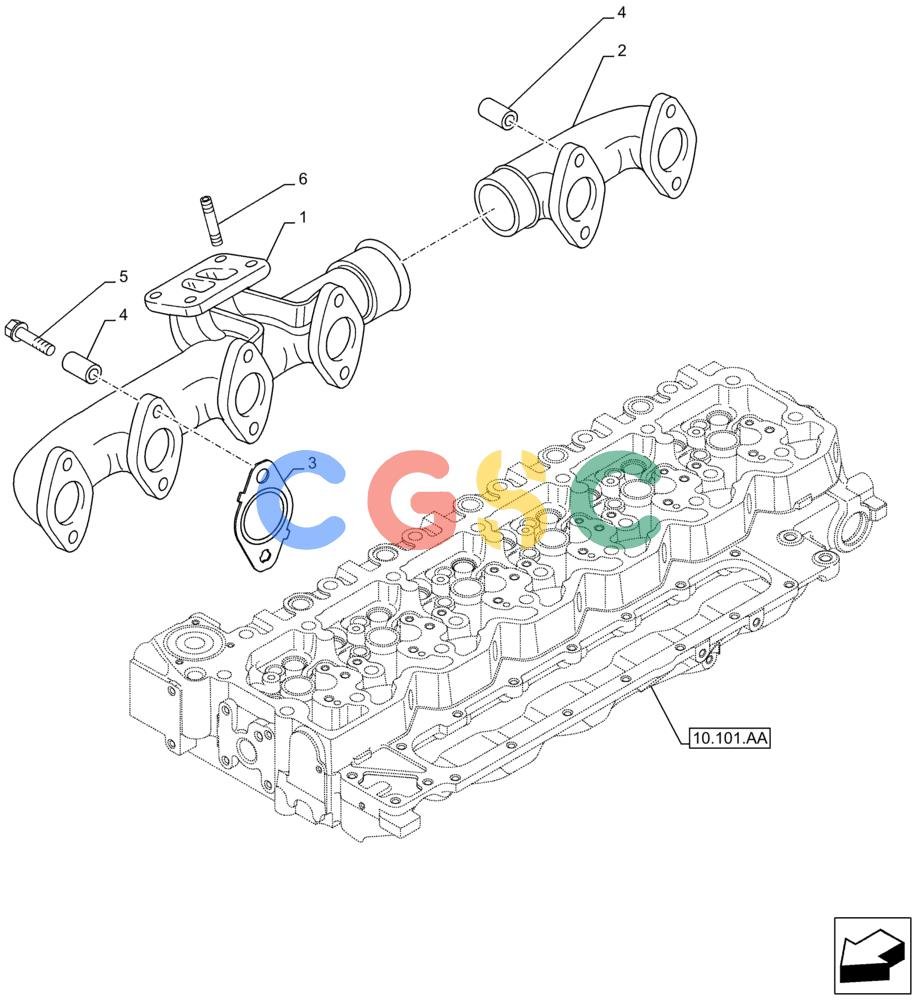

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47461401 | [1] | EXHAUST MANIFOLD | BRR |
| 2. | 47461403 | [1] | EXHAUST MANIFOLD | BRR Superseded by part number: |
| 3. | 2853800 | [6] | MANIFOLD GASKET,1.4mm Thk | TOR |
| 4. | 47464711 | [12] | SPACER | BRR Superseded by part number: 2854819 |
| 5. | 2852744 | [8] | SCREW,Flng, M10 x 1.5 x 65mm | TORM10 x 1.5 x 65 |
| 5. | 4895219 | [4] | STUD,Hex Flng, M10 x 65mm, Cl 10.9 | TORM10 x 1.5 |
| 6. | 4899085 | [4] | STUD,M10 x 1.5 x 42mm | TORM10 |
