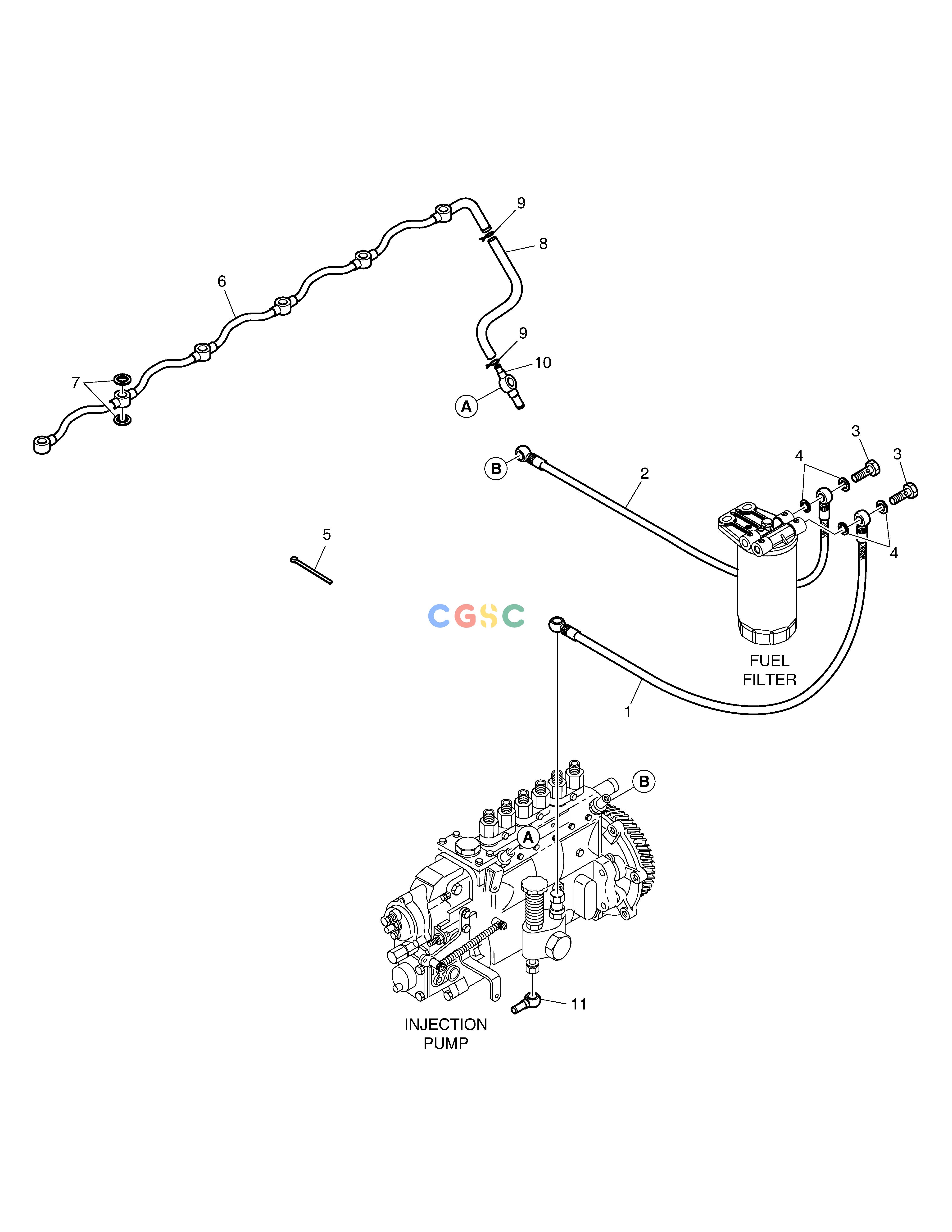

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 65.96341-0140 | [1] | HOSE,FUEL | |
| 10. | 65.12301-5825 | [1] | PIPE;FUEL(RETURN) | |
| 11. | 65.12301-5022 | [1] | PIPE;FUEL(RETURN) | |
| 2. | 65.96341-0140 | [1] | HOSE,FUEL | |
| 3. | 06.78144-2204 | [2] | SCREW;HOLLOW | |
| 4. | 65.96507-0043 | [4] | . RING;SEAL | |
| 5. | 65.97460-0002 | [1] | CABLE TIE | |
| 6. | 65.12301-5824 | [1] | PIPE;FUEL | |
| 7. | 65.96507-0001 | [12] | RING;SEAL | |
| 8. | 65.96301-0176 | [1] | HOSE;RUBBER | |
| 9. | 65.97401-0089 | [2] | CLIP |
