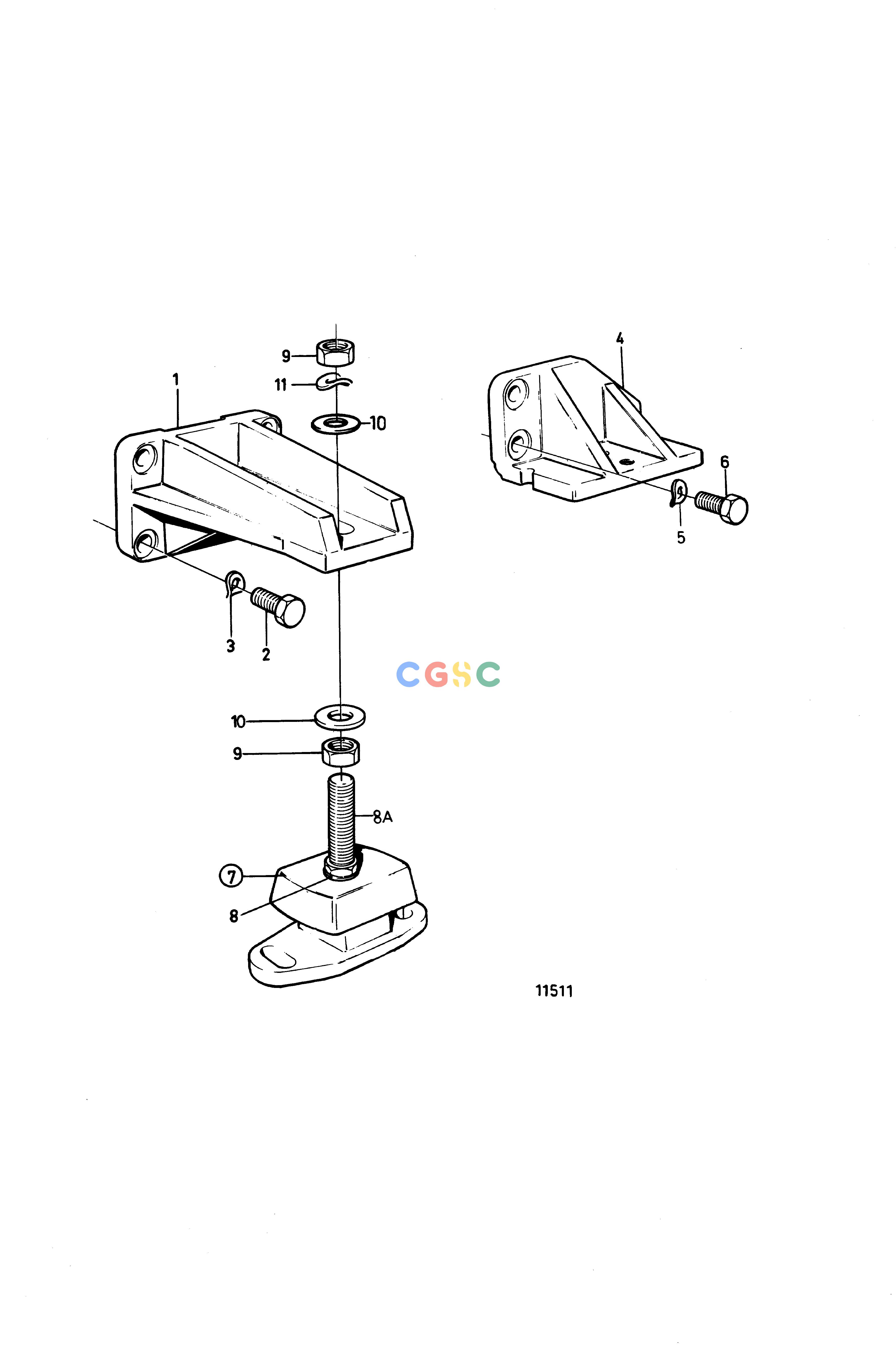

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DEngineEngine Mounting for Jack Shaft InstallationsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
952 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860953
|
[2] |
Engine bracket
|
Front
|
| 2. |
965192
|
[8] |
Flange screw
|
|
| 3. |
940280
|
[8] |
Spring washer
|
|
| 4. |
860952
|
[1] |
Engine bracket
|
P, rear
|
| 4. |
860954
|
[1] |
Engine bracket
|
S.B, rear
|
| 5. |
940280
|
[4] |
Spring washer
|
|
| 5. |
955897
|
[2] |
Washer
|
|
| 6. |
966343
|
[1] |
Flange screw
|
L=35mm, P
|
| 6. |
965226
|
[2] |
Flange screw
|
L=45mm, p
|
| 7. |
876598
|
[4] |
Rubber element
|
|
| 8. |
955900
|
[4] |
Washer
|
|
| 8A. |
860950
|
[4] |
Adjusting screw
|
|
| 9. |
955806
|
[8] |
Hexagon nut
|
|
| 10. |
955901
|
[4] |
Washer
|
D=34mm
|
| 10. |
978991
|
[4] |
Washer
|
D=40mm
|
| 11. |
941913
|
[4] |
Spring washer
|
|
