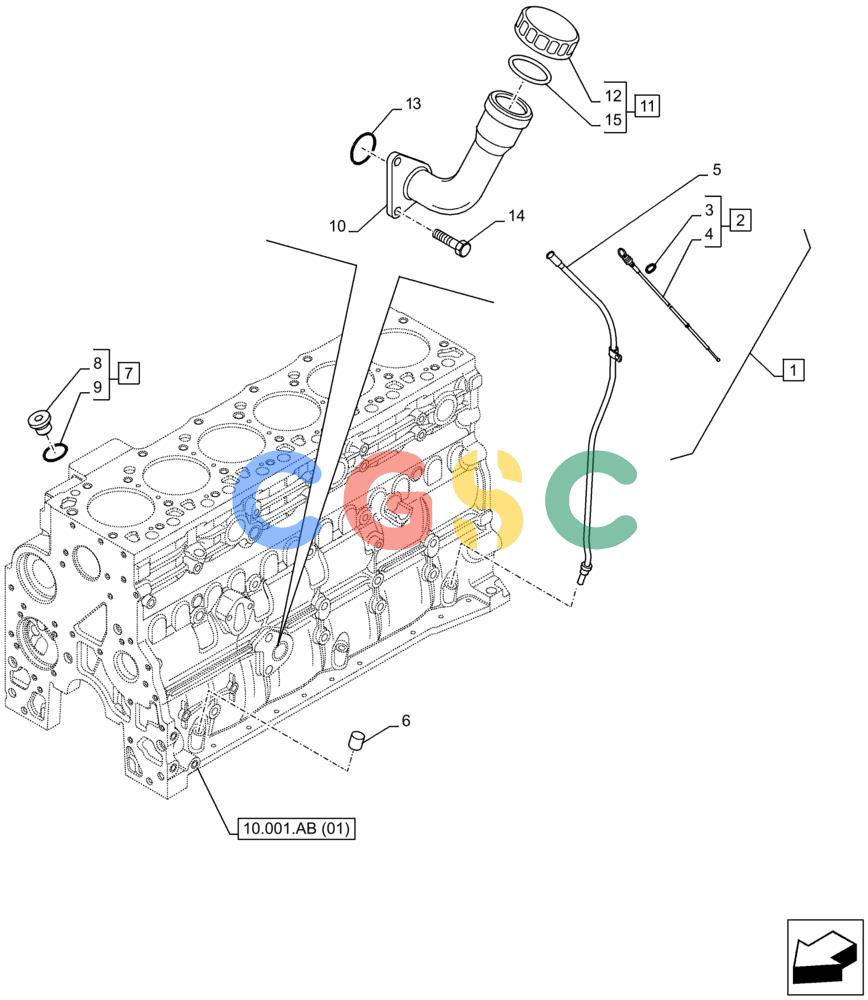

纽荷兰零件查询(F4HFE6132 A003) - ENGINE 5801753676 - 47541755 (1/14-) (10.304.AJ) - ENGINE OIL, DIPSTICK New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
856 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2855212 | [1] | ASSY, Incl 2 - 5 | |
| 2. | 2855215 | [1] | DIPSTICK | TORASSY, Incl 3, 4 Superseded by part number: 504051897 |
| 3. | 4898502 | [1] | O-RING,0.364" ID x 0.504" OD x 0.07" | LEC Superseded by part number: 17277981 |
| 4. | NSS | [1] | NOT SERVICED SEPARATELY | CONHandgrip, Incl in 1 |
| 5. | 2855213 | [1] | TUBE | TOR |
| 6. | 4895406 | [3] | EXPANSION PLUG,9.8mm OD | TOR |
| 7. | 4897330 | [2] | HEX SOCKET PLUG,M12 x 1.5 | TORASSY, Incl 6, 7 |
| 8. | 4897459 | [1] | PLUG | FAR |
| 9. | 4895610 | [1] | O-RING,2.2mm Thk x 9.3mm ID | TOR |
| 10. | 2853407 | [1] | NECK FILLER,143, 117.3 mm Length | TOR Superseded by part number: |
| 11. | 2853410 | [1] | FILLER CAP | TORASSY, Incl 10, 13 Superseded by part number: 500301568 |
| 13. | 2852135 | [1] | O-RING | TOR Superseded by part number: 14458681 |
| 14. | 2852134 | [1] | FLANGE BOLT,Hex, M12 x 1.75 x 25mm | TOR Superseded by part number: 16677735 |
| 15. | 2853412 | [1] | O-RING,0.21" Thk x 1.475" ID | TOR Superseded by part number: 17295480 |
