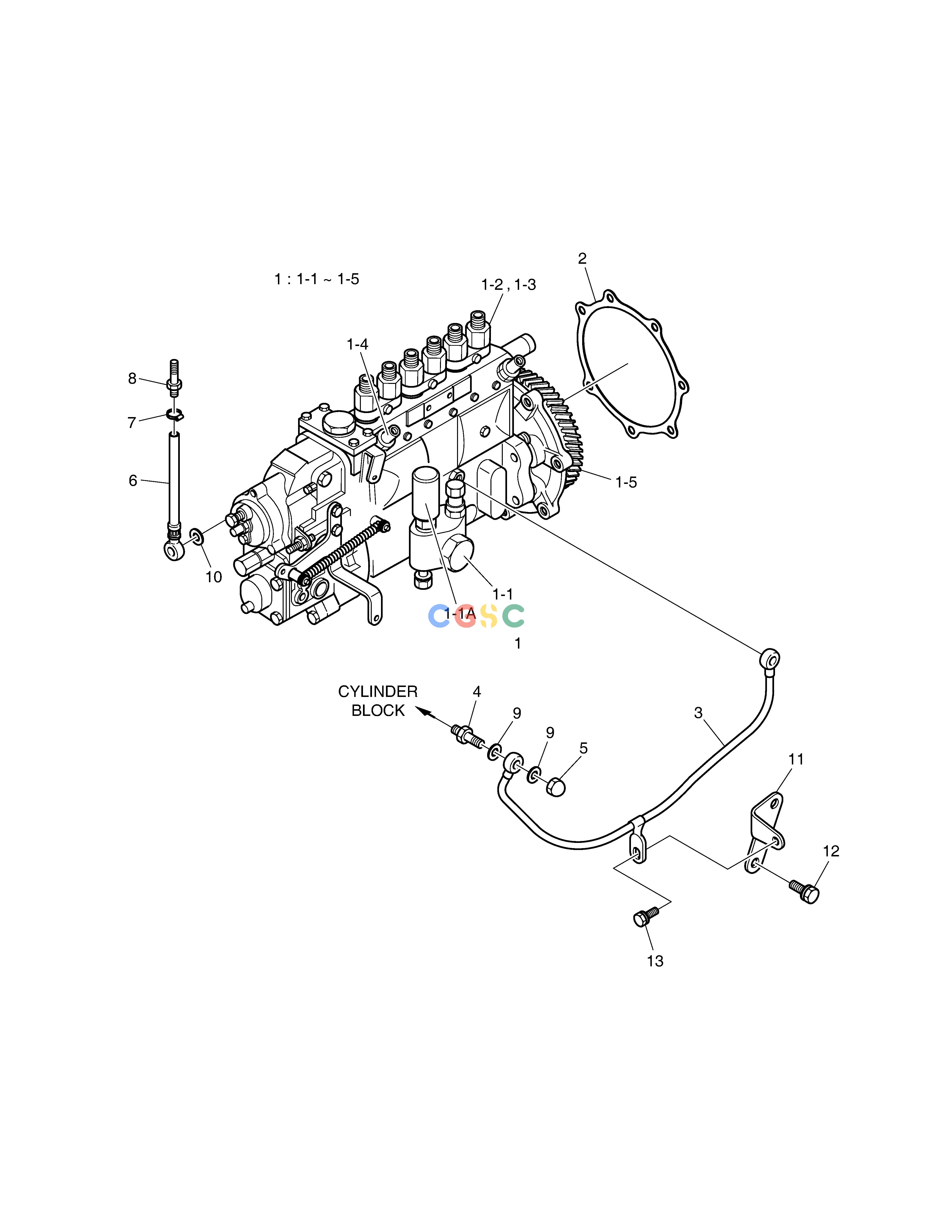

斗山零件查询INJECTION PUMP DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
343 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400912-00071
|
[1] |
|
|
| 1-1. |
105220-649A
|
[1] |
PUMP,FEED
|
|
| 1-1A. |
400908-00004
|
[1] |
. HAND PRIMING PUMP
|
|
| 1-2. |
131150-2620
|
[6] |
PLUNGER
|
|
| 1-3. |
65.11108-6006S
|
[6] |
|
|
| 1-4. |
131424-1520
|
[1] |
VALVE;OVERFLOW
|
|
| 1-5. |
156639-8820
|
[1] |
COUPLING
|
|
| 10. |
06.56180-0714
|
[1] |
RING;SEAL
|
|
| 11. |
65.97403-0014
|
[1] |
BRACKET
|
|
| 12. |
06.01943-3213
|
[2] |
BOLT ASS`Y M10X1.25X20
|
|
| 13. |
06.01923-3112
|
[1] |
BOLT ASS`Y M8X18
|
|
| 15. |
150112-00007
|
[1] |
|
|
| 2. |
65.11902A0001
|
[1] |
GASKET;INJECTION PUMP MOUNTING
|
|
| 3. |
65.05701-5328
|
[1] |
PIPE;OIL
|
|
| 4. |
65.98155-0011
|
[1] |
UNION;HOLLOW
|
|
| 5. |
06.12172-9314
|
[1] |
NUT;CAP
|
|
| 6. |
65.08301-6008
|
[1] |
HOSE;AIR
|
|
| 7. |
06.67020-0101
|
[1] |
CLAMP;HOSE
|
|
| 8. |
65.98131-0050
|
[1] |
CONN SCREW
|
|
| 9. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
