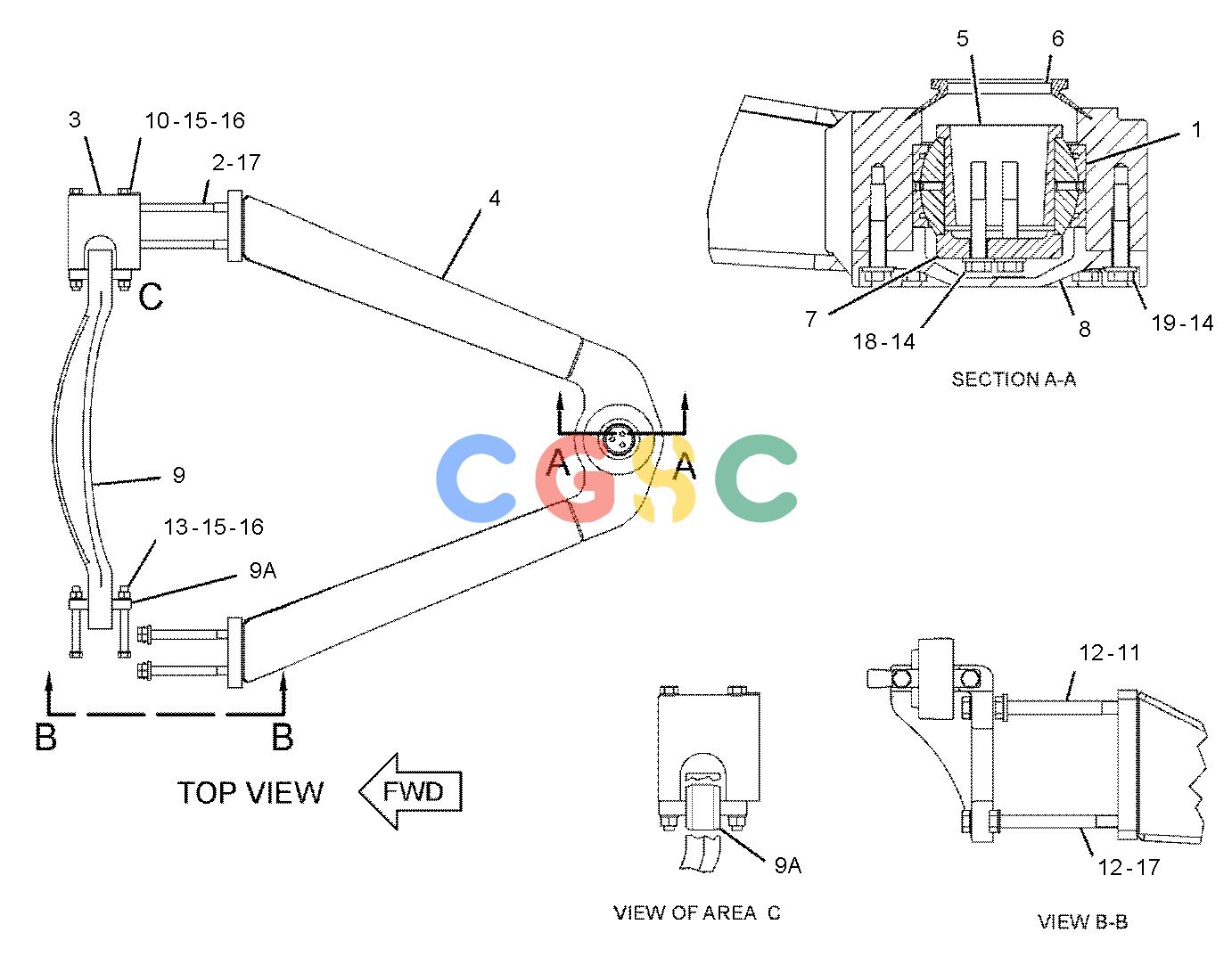

卡特零件查询（725） 138-1464: FRAME GP-CENTER SUSPENSION
广数供应链运营团队, 14 02月, 2025，浏览：
968 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 152-0604M | [4] | BOLT(M24X3X300-MM) | |
| 2. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| 3. | 185-2752 | [1] | LINK & BEARING AS | |
| 3A. | 148-5563 | [2] | BEARING-SPHERICAL | |
| | 156-4503 | [1] | ROD | |
| 4. | | [1] | RING-CLAMP |
| 5. | 158-7749 | [1] | BEARING-SPHERICAL | |
| 6. | 174-9955 | [1] | FRAME AS-SUSPENSION | |
| 7. | 176-7459 | [1] | COVER-RUBBER | |
| 8. | 196-8827 | [2] | SEAL | |
| 9. | 197-3120 | [1] | BRACKET-STABILIZER | |
| 10. | 233-6977 | [4] | WASHER-HARD(26X40X8-MM THK) | |
| 11. | 8T-0668M | [2] | BOLT(M24X3X110-MM) | |
| 12. | 8T-0367M | [4] | BOLT(M24X3X260-MM) | |
| 13. | 8T-7505M | [2] | BOLT(M20X2.5X220-MM) | |
| 14. | 8T-0161M | [2] | BOLT(M20X2.5X240-MM) | |
| 15. | 8T-3282 | [8] | WASHER-HARD(22X35X3.5-MM THK) | |
| 16. | 6V-7742M | [4] | NUT-FULL(M20X2.5-THD) | |
| 17. | 6V-8237 | [6] | WASHER(26X44X4-MM THK) | |
| 18. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 8T-4244M | [6] | NUT(M12X1.75-THD) | |
| 20. | 8T-6868M | [6] | BOLT(M12X1.75X80-MM) | |
| 21. | 8T-7338M | [8] | BOLT(M16X2X45-MM) | |
| | M | | METRIC PART |
