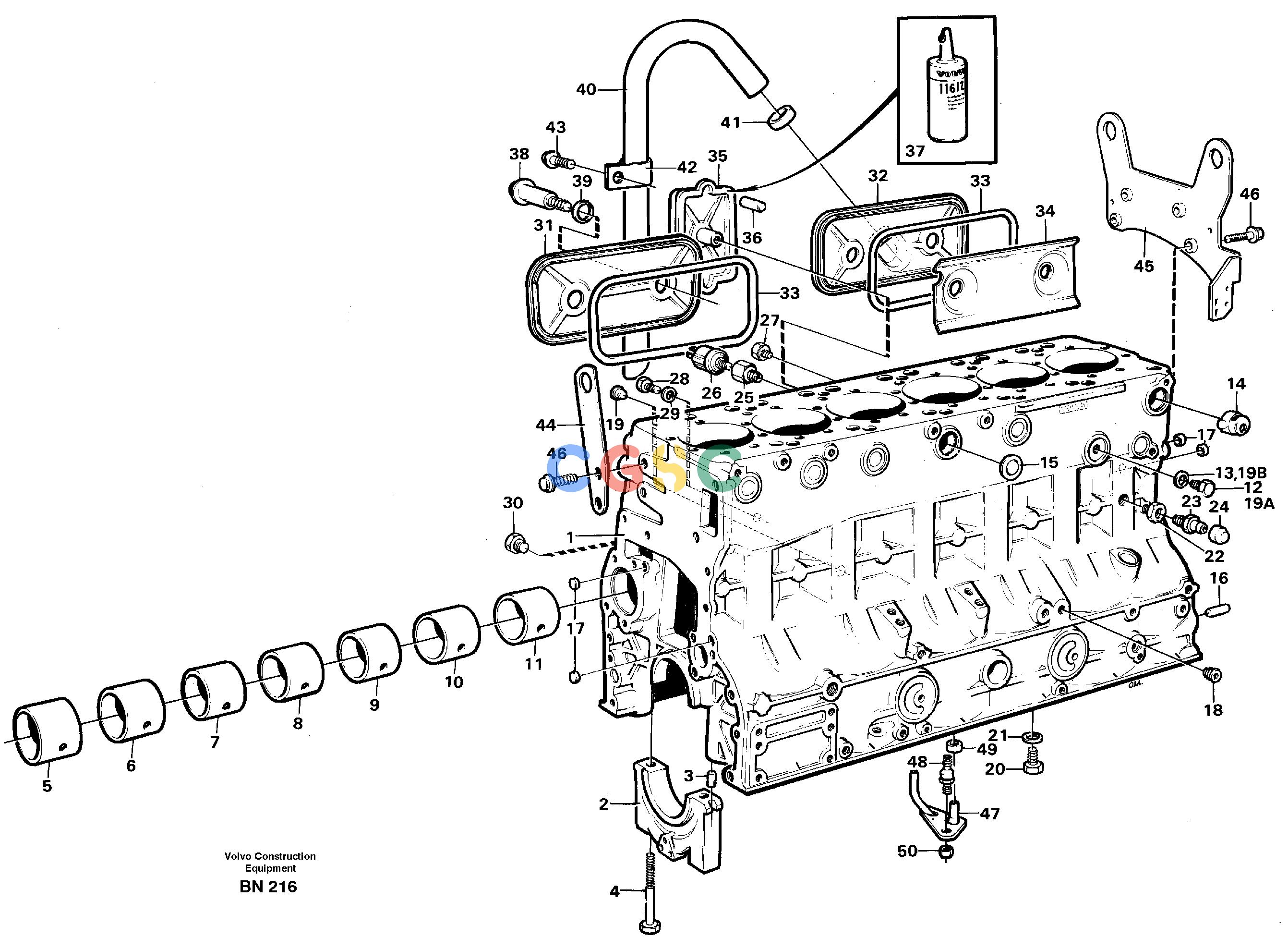

沃尔沃零件查询A25C Cylinder blockNone477990-8192730NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
894 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE477990
|
[1] |
Cylinder block
|
ENG - 97292
|
| |
VOE8192730
|
|
Cylinder block
|
ENG 97293 -
|
| 1. |
VOE477991
|
[1] |
Cylinder block
|
|
| |
VOE8192731
|
|
Cylinder block
|
|
| 2. |
VOE471935
|
[1] |
Cap
|
MARKED: 1
|
| |
VOE471416
|
[1] |
Cap
|
MARKED: 4
|
| |
VOE471415
|
[5] |
Cap
|
MARKED: 2,3,5,6,7
|
| |
VOE8192740
|
|
Cap
|
MARKED: 1
|
| |
VOE8192741
|
|
Cap
|
MARKED: 4
|
| |
VOE8192742
|
|
Cap
|
MARKED: 2,3,5,6,7
|
| 3. |
VOE422426
|
[1] |
Pin
|
|
| 4. |
VOE465899
|
[14] |
Screw
|
|
| |
VOE8192738
|
|
Screw
|
|
| 5. |
VOE422076
|
[1] |
Bushing
|
|
| 6. |
VOE422077
|
[1] |
Bushing
|
|
| 7. |
VOE422078
|
[1] |
Bushing
|
|
| |
VOE8192676
|
|
Bushing
|
|
| 8. |
VOE11000014
|
[1] |
Bushing
|
|
| |
VOE8192677
|
|
Bushing
|
|
| 9. |
VOE422080
|
[1] |
Bushing
|
|
| |
VOE8192678
|
|
Bushing
|
|
| 10. |
VOE422081
|
[1] |
Bushing
|
|
| |
VOE8192679
|
|
Bushing
|
|
| 11. |
VOE422082
|
[1] |
Bushing
|
|
| 12. |
VOE968145
|
[1] |
Plug
|
|
| 13. |
VOE1556907
|
[1] |
Gasket
|
|
| 14. |
VOE421154
|
[6] |
Nozzle
|
|
| 15. |
VOE13968955
|
[6] |
Expansion plug
|
|
| 16. |
VOE191171
|
[2] |
Pin
|
|
| 17. |
VOE955082
|
[6] |
Cap plug
|
|
| 18. |
VOE968145
|
[1] |
Plug
|
|
| 19. |
VOE422369
|
[2] |
Plug
|
|
| 19A. |
VOE467367
|
[1] |
Plug
|
|
| 19B. |
VOE1556907
|
[1] |
Gasket
|
|
| 20. |
VOE13966146
|
[1] |
Plug
|
|
| 21. |
VOE13947629
|
[1] |
Plane gasket
|
|
| 22. |
VOE479954
|
[1] |
Nipple
|
|
| 23. |
VOE13947893
|
[1] |
Tap
|
|
| 24. |
VOE476279
|
[1] |
Protecting cap
|
E PROD
|
| 25. |
VOE835980
|
[1] |
Nipple
|
|
| 26. |
|
[1] |
Contact
|
|
| 27. |
VOE479979
|
[5] |
Plug
|
L PROD
|
| 28. |
VOE960631
|
[1] |
Plug
|
|
| 29. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 30. |
VOE479976
|
[1] |
Plug
|
|
| 31. |
VOE420120
|
[1] |
Inspection lid
|
|
| 32. |
VOE420121
|
[1] |
Hatch
|
|
| 33. |
VOE20591544
|
[2] |
Gasket
|
|
| 34. |
VOE3978045
|
[1] |
Splash plate
|
|
| 35. |
VOE471854
|
[1] |
Cover
|
|
| 36. |
VOE951974
|
[1] |
Spring pin
|
|
| 37. |
VOE1161277
|
[REQ] |
Sealant
|
20 GRAM
|
| |
VOE11713514
|
[REQ] |
Sealant
|
304 ML
|
| 38. |
VOE471855
|
[5] |
Screw
|
|
| 39. |
VOE471856
|
[5] |
Sealing ring
|
|
| 40. |
VOE471857
|
[1] |
Pipe
|
ENG - 99116
|
| |
VOE11063160
|
[1] |
Tube
|
ENG 99117 -
|
| 41. |
VOE421158
|
[1] |
Sealing ring
|
|
| 42. |
VOE968124
|
[1] |
Clamp
|
|
| 43. |
VOE60113094
|
[1] |
Flange screw
|
|
| 44. |
|
[1] |
Iron
|
|
| 45. |
|
[1] |
Bracket
|
|
| 46. |
VOE13965191
|
[2] |
Screw
|
L = 30
|
| 47. |
VOE477437
|
[6] |
Nozzle
|
|
| 48. |
VOE471596
|
[6] |
Stud
|
|
| 49. |
VOE466874
|
[6] |
Sealing ring
|
|
| 50. |
VOE13948570
|
[6] |
Lock nut
|
|
