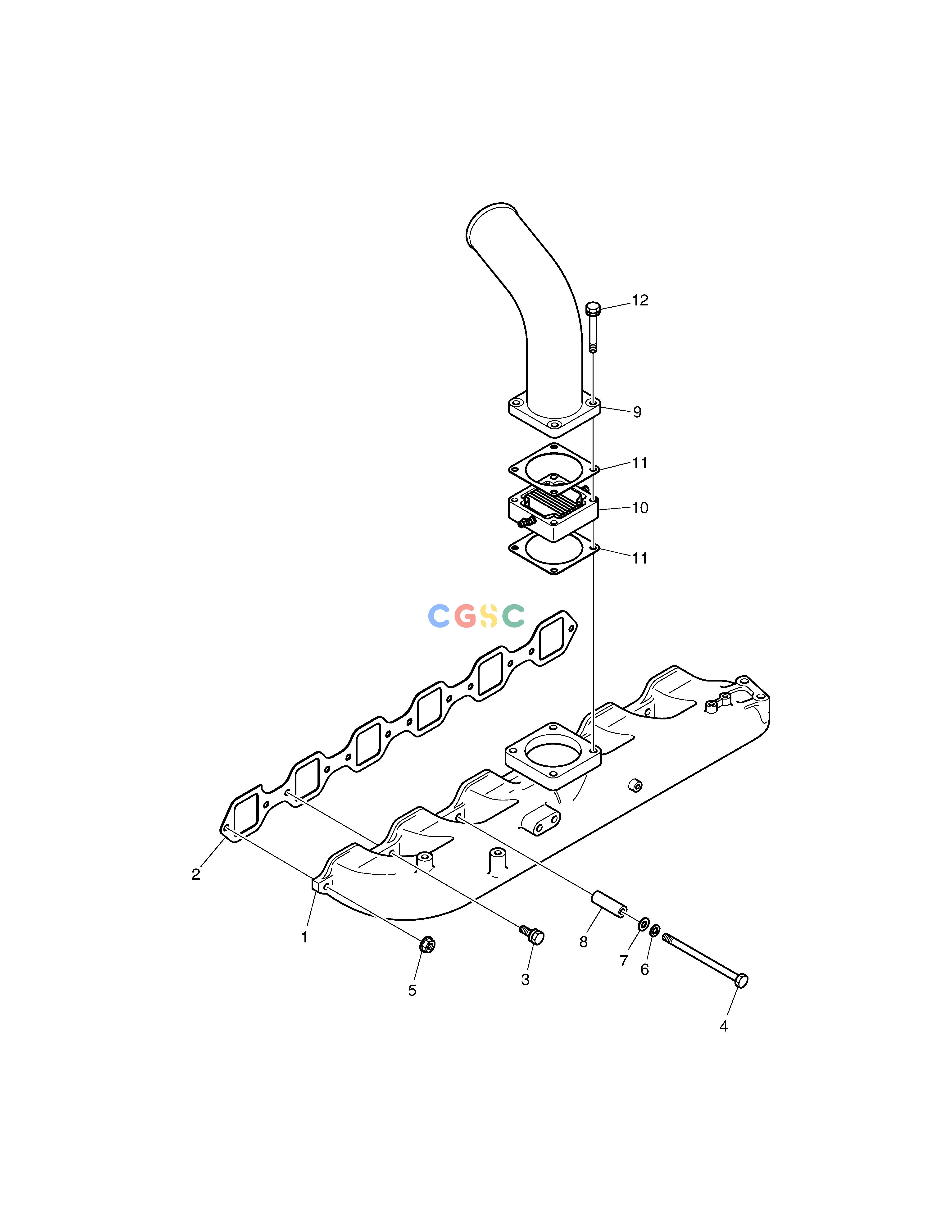

斗山零件查询INTAKE MANIFOLD DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
651 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.08201-5062A
|
[1] |
|
|
| 10. |
65.26803-7028B
|
[1] |
AIR HEATER
|
|
| 11. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
| 12. |
06.01923-3124
|
[4] |
BOLT ASS`Y M8X65
|
|
| 2. |
65.08902-0034
|
[1] |
GASKET;INTAKE MANIFOLD
|
|
| 3. |
65.90020-0142
|
[8] |
BOLT ASS`Y
|
|
| 4. |
06.01013-9127
|
[1] |
BOLT M8X120
|
|
| 5. |
65.90535-0003
|
[3] |
NUT
|
|
| 6. |
06.16731-2107
|
[1] |
WASHER
|
|
| 7. |
06.15010-2311
|
[1] |
WASHER
|
|
| 8. |
65.91701-0029
|
[1] |
SPACER
|
|
| 9. |
65.08202-0175
|
[1] |
STAKE;INTAKE
|
|
