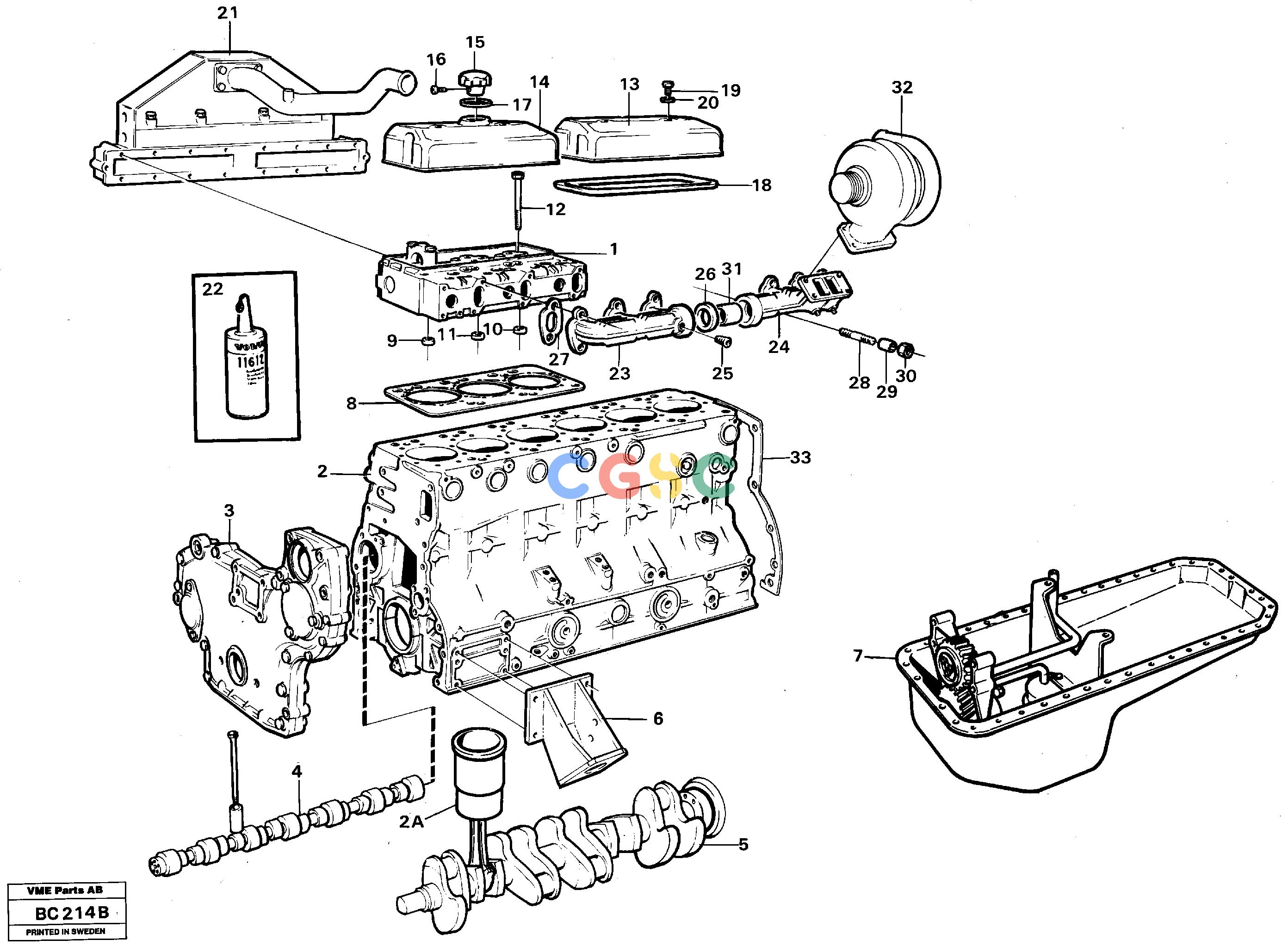

沃尔沃零件查询A25C VOLVO BM Engine with fitting partsVOLVO BM A25C SER NO - 10256/ - 60911 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
703 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE497997
|
[1] |
Engine
|
TD 73KCE,SER NO - 9121
SER NO - 60627 6x6 USA
|
| |
|
|
None
|
SER NO - 68116 4x4 USA
SER NO - 70128 BRAZIL
|
| |
VOE15003928
|
[1] |
Engine
|
TD 73KCE,SER NO 9122 -
SER NO 60628 - 6x6 USA
|
| |
|
|
None
|
SER NO 68117 - 4x4 USA
SER NO 70129 - BRAZIL
|
| 1. |
|
[2] |
Cylinder head
|
|
| 2. |
|
[1] |
Cylinder block
|
|
| 2A. |
|
[1] |
Cyl. liner a piston
|
|
| 3. |
|
[1] |
Timing gear casing
|
|
| 4. |
|
[1] |
Camshaft
|
|
| 5. |
|
[1] |
Crankshaft
|
|
| 6. |
|
[1] |
Engine mounting
|
|
| 7. |
|
[1] |
Lubricating system
|
|
| |
VOE276816
|
[2] |
Gasket kit
|
|
| 8. |
|
[2] |
Gasket
|
|
| 9. |
VOE465784
|
[12] |
Seal
|
|
| 10. |
VOE466421
|
[16] |
Sealing ring
|
|
| 11. |
VOE422413
|
[2] |
Sealing ring
|
|
| 12. |
VOE471481
|
[40] |
Screw
|
|
| 13. |
VOE471426
|
[1] |
Valve cover
|
|
| 14. |
VOE471813
|
[1] |
Valve cover
|
|
| 15. |
VOE421753
|
[1] |
Filler cap
|
|
| 16. |
VOE955126
|
[1] |
Cross recessed screw
|
|
| 17. |
VOE1275379
|
[1] |
Gasket
|
|
| 18. |
VOE471520
|
[2] |
Gasket
|
|
| 19. |
VOE465961
|
[4] |
Cap nut
|
|
| 20. |
VOE471856
|
[4] |
Sealing ring
|
|
| 21. |
|
[1] |
Inlet pipe
|
|
| 22. |
VOE1161277
|
[REQ] |
Sealant
|
20g
|
| 23. |
VOE3978602
|
[1] |
Exhaust pipe
|
|
| 24. |
VOE3978601
|
[1] |
Exhaust pipe
|
|
| 25. |
VOE13947814
|
[1] |
Plug
|
(947814)
|
| 26. |
VOE1545109
|
[6] |
Sealing ring
|
|
| 27. |
VOE471650
|
[6] |
Gasket
|
|
| 28. |
VOE953077
|
[12] |
Stud
|
|
| 29. |
VOE422217
|
[12] |
Spacer sleeve
|
|
| 30. |
VOE1543499
|
[12] |
Flange nut
|
|
| 31. |
VOE421544
|
[1] |
Ring retainer
|
|
| 32. |
|
[1] |
Turbocharger
|
|
| 33. |
VOE424620
|
[1] |
Gasket
|
|
