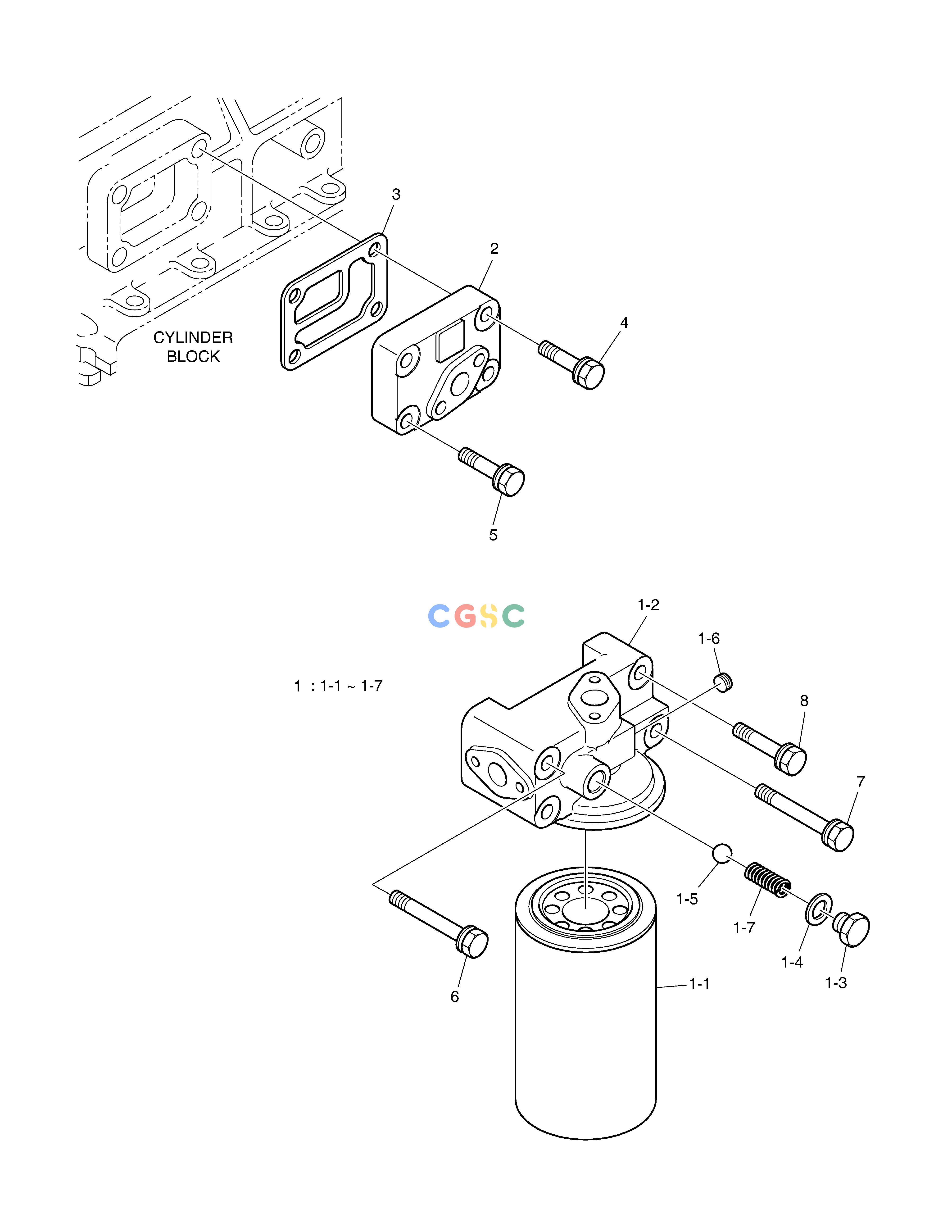

斗山零件查询OIL FILTER DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
190 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05501-7084A
|
[1] |
OIL FILTER ASS'Y
|
|
| 1-1. |
65.05510-5028A
|
[1] |
. CARTRIDGE,OIL FILTER
|
|
| 1-2. |
65.05503-5053
|
[1] |
HEAD;OIL FILTER
|
|
| 1-3. |
65.90310-0036A
|
[1] |
. PLUG;SCREW
|
|
| 1-4. |
06.56190-0709
|
[1] |
SEAL;RING
|
|
| 1-5. |
06.31641-0222
|
[1] |
. BALL;STEEL
|
|
| 1-6. |
65.90350-0005
|
[1] |
. SCREW;PLUG PT 3/8
|
|
| 1-7. |
65.97601-0045
|
[1] |
. SPRING;COMPRESS
|
|
| 2. |
65.05520-5001
|
[1] |
FLANGE;INTERMEDIATE
|
|
| 3. |
65.05901C0004
|
[1] |
GASKET;OIL FILTER
|
|
| 4. |
06.01953-3219
|
[3] |
BOLT ASS'Y M10X1.25X40
|
|
| 5. |
65.90001-6013
|
[1] |
BOLT;HEX.
|
|
| 6. |
06.01923-3228
|
[2] |
BOLT ASS'Y M10X85
|
|
| 7. |
06.01923-3225
|
[1] |
BOLT ASS'Y M10X70
|
|
| 8. |
06.01923-3222
|
[1] |
BOLT ASS`Y
|
|
