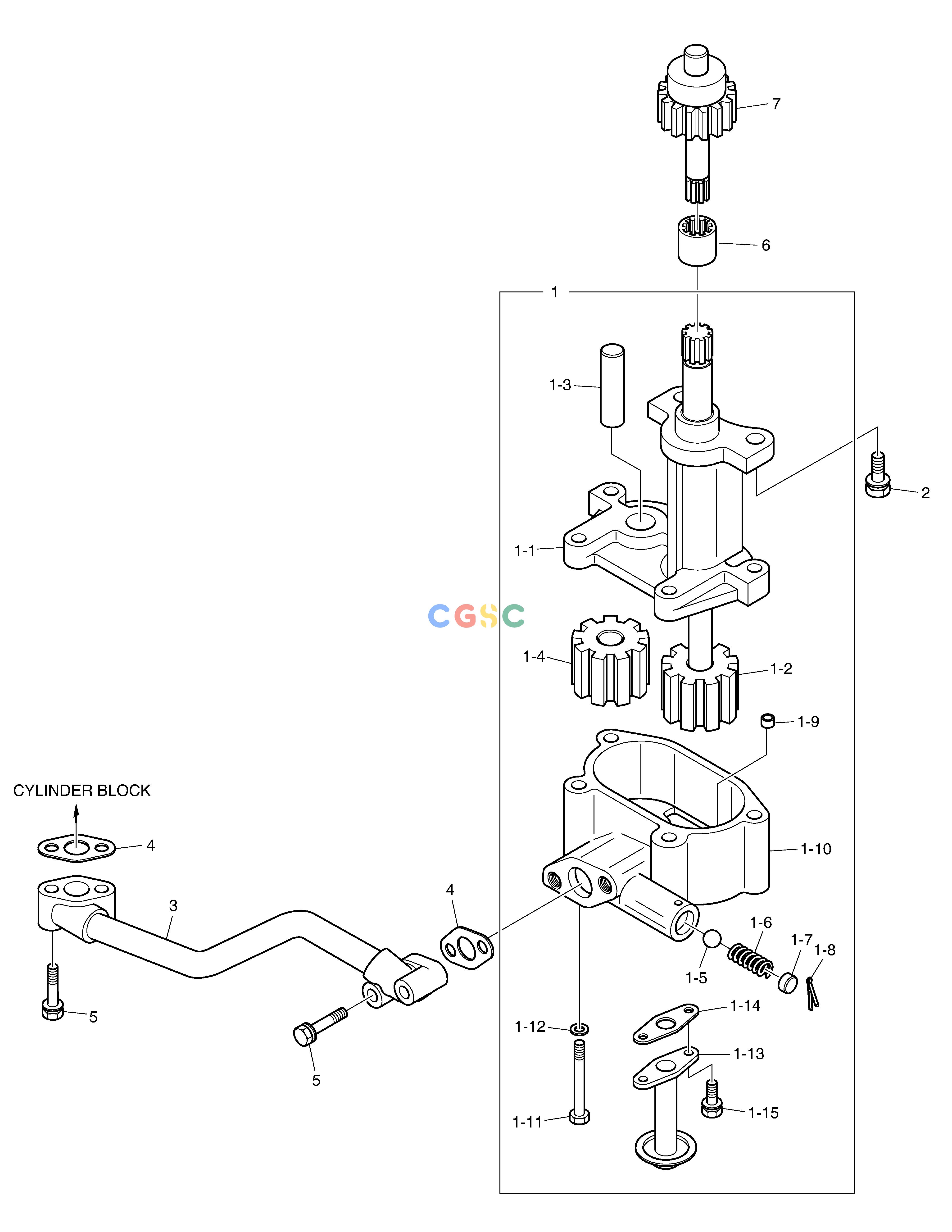

斗山零件查询OIL PUMP DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
435 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400915-00011A
|
[1] |
PUMP ASSY,OIL
|
|
| 1-1. |
65.05102-0018
|
[1] |
.. HOUSING;OIL PUMP
|
|
| 1-10. |
110508-00299
|
[1] |
.. COVER,OIL PUMP
|
|
| 1-11. |
65.01013-9117
|
[4] |
. BOLT,HEX
|
|
| 1-12. |
06.16731-2107
|
[4] |
WASHER
|
|
| 1-13. |
400411-00022
|
[1] |
STRAINER ASSY,OIL
|
|
| 1-14. |
400612-00021
|
[1] |
.. GASKET,FLANGE
|
|
| 1-15. |
06.01913-3113
|
[2] |
.. BOLT ASS`Y M8X20
|
|
| 1-2. |
130424-00005A
|
[1] |
.. GEAR ASSY;FOR OIL PUMP
|
|
| 1-3. |
65.05105-0044
|
[1] |
.. SHAFT;OIL PUMP
|
|
| 1-4. |
130424-00003
|
[1] |
.. GEAR,SPUR
|
|
| 1-5. |
06.31641-0222
|
[1] |
. BALL;STEEL
|
|
| 1-6. |
65.97601-0090
|
[1] |
.. SPRING;COMPRESSION
|
|
| 1-7. |
65.91305-0007
|
[1] |
.. SEAT;SPRING
|
|
| 1-8. |
06.22070-0913
|
[1] |
.. PIN;SPLIT 4X30
|
|
| 1-9. |
65.91710-0012
|
[1] |
.. RING;STOPPER
|
|
| 2. |
06.01944-3215
|
[2] |
BOLT ASS`Y M10X1.25X25
|
|
| 3. |
65.05701-5636A
|
[1] |
. OIL PIPE ASS`Y
|
|
| 4. |
65.05903A0002
|
[2] |
GASKET
|
|
| 5. |
06.01923-3120
|
[4] |
. BOLT ASS`Y M8X45
|
|
| 6. |
65.05207-0006
|
[1] |
COUPLING;SLEEVE
|
|
| 7. |
65.05201-0065
|
[1] |
GEAR;OIL PUMP DRIVE
|
|
