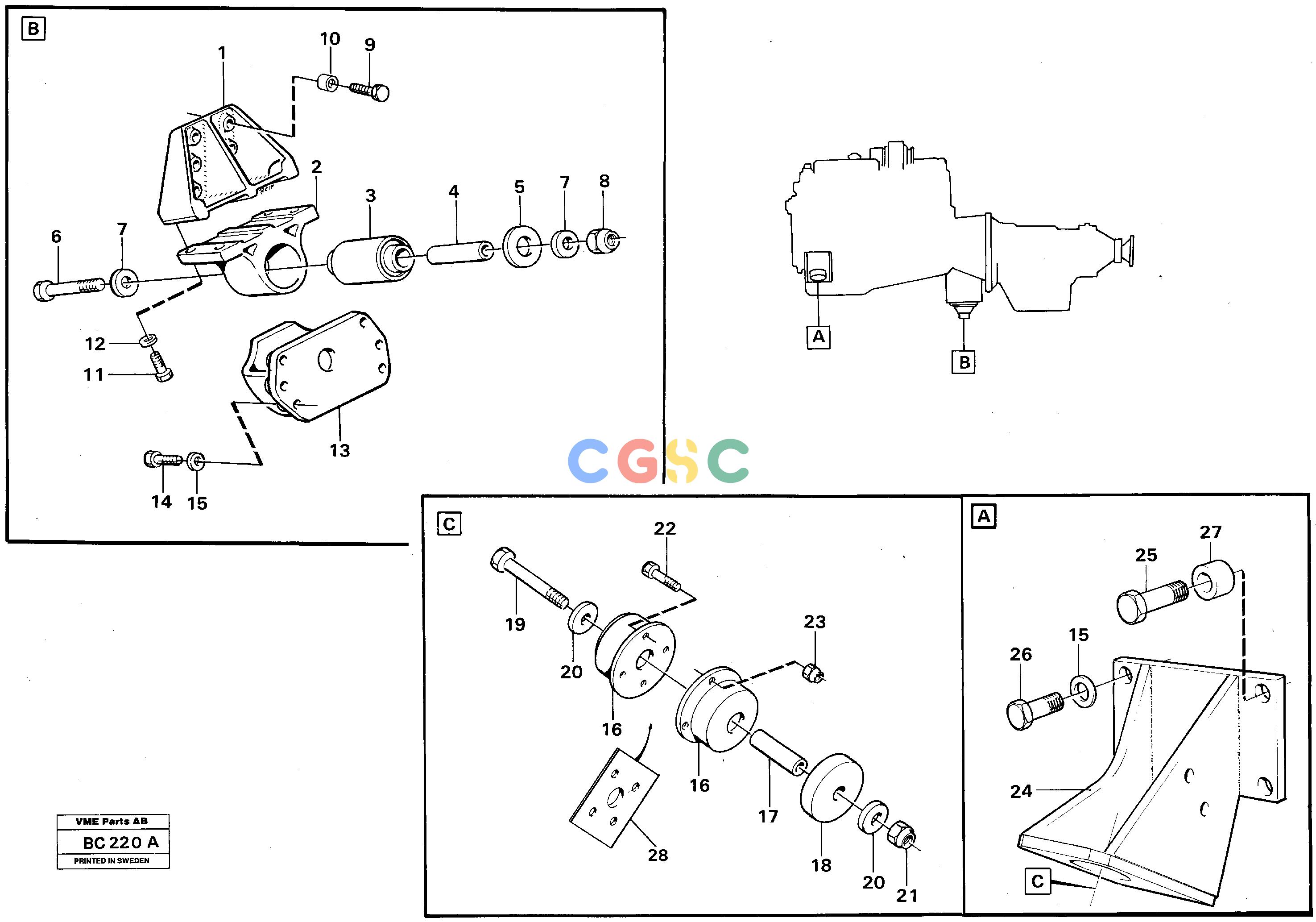

沃尔沃零件查询A25C VOLVO BM Engine mountingVOLVO BM A25C SER NO - 10256/ - 60911 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
730 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4823093
|
[2] |
Bracket
|
|
| 2. |
VOE4737142
|
[2] |
Bracket
|
|
| 3. |
VOE4737289
|
[1] |
Rubber bushing
|
|
| 4. |
VOE4737838
|
[2] |
Shaft
|
|
| 5. |
VOE4737260
|
[2] |
Washer
|
|
| 6. |
VOE955380
|
[2] |
Hexagon screw
|
|
| 7. |
VOE13955900
|
[0002] |
Washer
|
|
| 8. |
VOE13967934
|
[2] |
Flange lock nut
|
|
| 9. |
VOE955566
|
[12] |
Hexagon screw
|
|
| 10. |
VOE60113600
|
[12] |
Spacer sleeve
|
|
| 11. |
VOE965225
|
[8] |
Flange screw
|
|
| 12. |
VOE4737842
|
[8] |
Washer
|
|
| 13. |
VOE4823092
|
[2] |
Bracket
|
|
| 14. |
VOE13965226
|
[12] |
Screw
|
|
| 15. |
VOE971099
|
[12] |
Flange lock nut
|
|
| 16. |
VOE1623745
|
[4] |
Rubber cushion
|
|
| 17. |
VOE1501002
|
[2] |
Spacer sleeve
|
|
| 18. |
VOE4737225
|
[2] |
Plate
|
|
| 19. |
VOE13955378
|
[2] |
Screw
|
|
| 20. |
VOE13955900
|
[0002] |
Washer
|
|
| 21. |
VOE13967934
|
[2] |
Flange lock nut
|
|
| 22. |
VOE13945444
|
[8] |
Screw
|
|
| 23. |
VOE13945408
|
[8] |
Nut
|
|
| 24. |
VOE4965045
|
[2] |
Bracket
|
|
| 25. |
VOE965195
|
[7] |
Flange screw
|
|
| 26. |
VOE13965226
|
[1] |
Screw
|
|
| 27. |
VOE60113600
|
[7] |
Spacer sleeve
|
|
| 28. |
VOE4941846
|
[REQ] |
Plate
|
|
