斗山零件查询ROCKER ARM DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
430 次

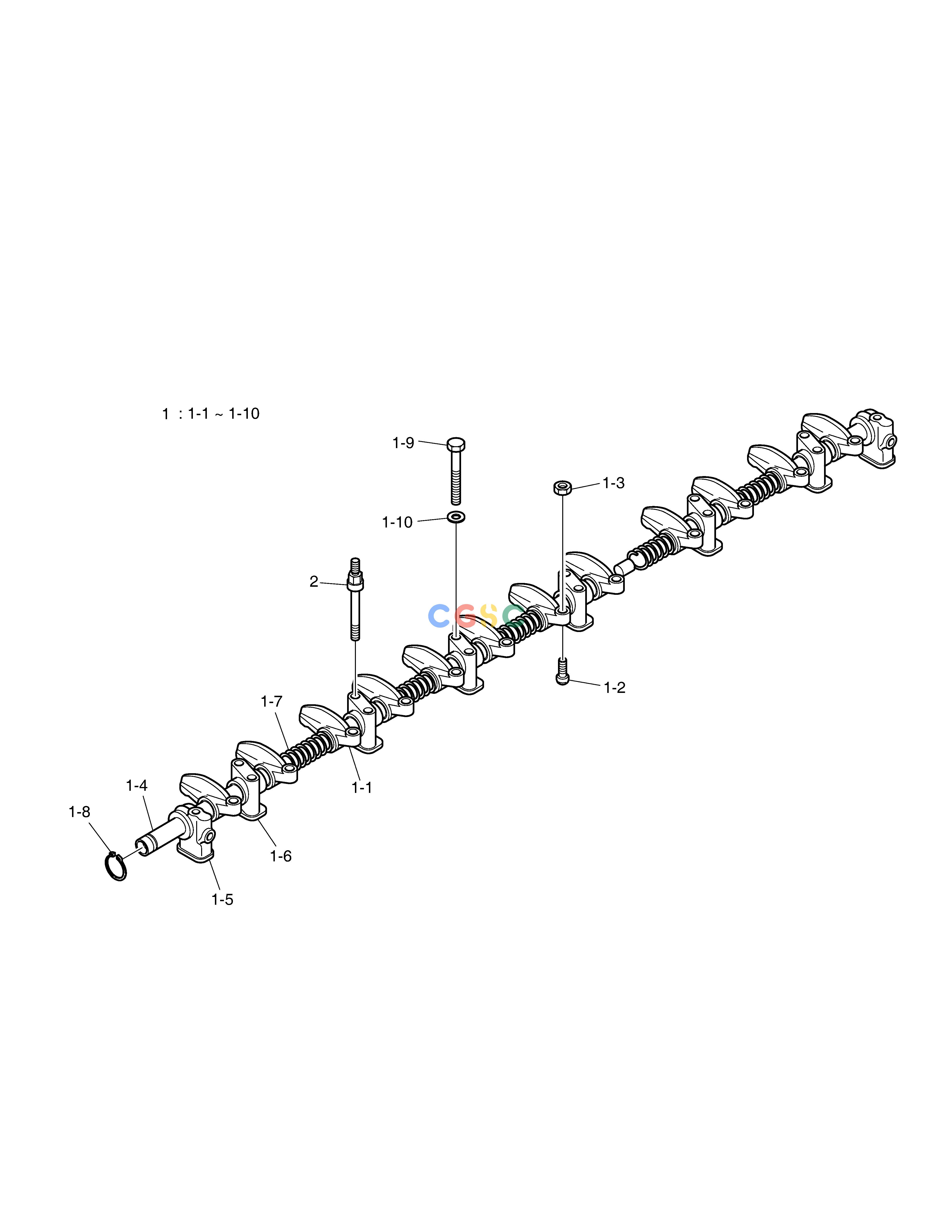

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150122-00006A
|
[1] |
ROCKER ARM SHAFT ASS`Y
|
|
| 1-1. |
150101-00001
|
[12] |
. ROCKER ARM ASS`Y
|
|
| 1-10. |
06.15010-2311
|
[10] |
WASHER
|
|
| 1-2. |
65.04205-0001
|
[12] |
. SCREW;ADJUST
|
|
| 1-3. |
65.90501-0013
|
[12] |
. NUT;HEX
|
|
| 1-4. |
65.04203-5008C
|
[1] |
. ROCKER ARM SHAFT ASS`Y
|
|
| 1-5. |
65.04202-0009
|
[1] |
. BRACKET(FRONT)
|
|
| 1-6. |
110424-00015
|
[6] |
. BRACKET,ROCKER ARM
|
|
| 1-7. |
65.97601-0048
|
[1] |
. SPRING;ROCKER ARM
|
|
| 1-8. |
06.29010-0116
|
[1] |
. RING;SNAP
|
|
| 1-9. |
06.01013-9118
|
[10] |
.. BOLT;HEX. M8X65
|
|
| 2. |
120122-00028
|
[4] |
BOLT,SPACER
|
|
