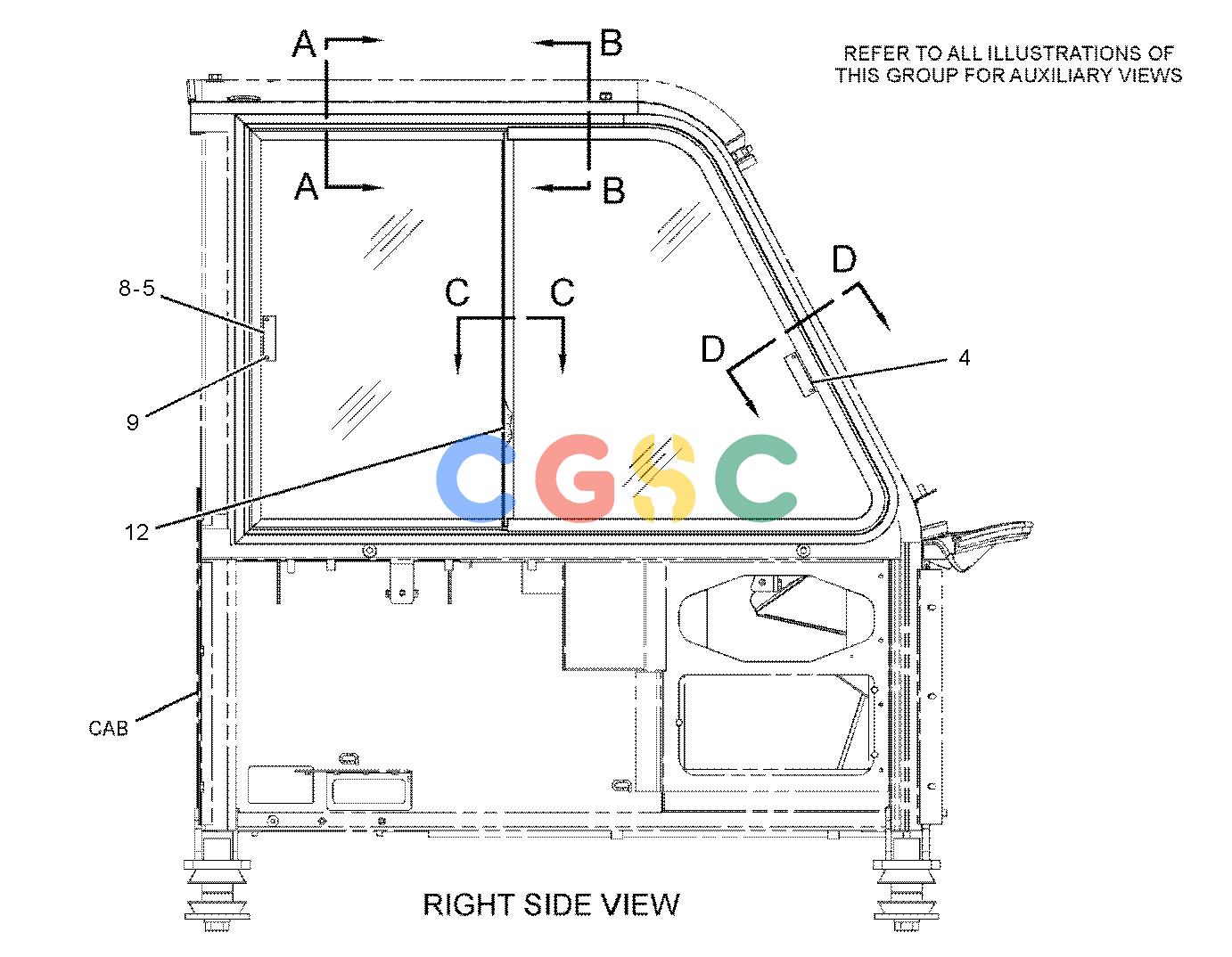

卡特零件查询（725） 141-4691: WINDOW GP
广数供应链运营团队, 14 02月, 2025，浏览：
1011 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 296-1462 | [1] | SLIDER AS(FRONT) | |
| 2. | 296-1466 | [1] | GLASS-FRONT | |
| 3. | 169-6596 | [2] | LATCH AS-WINDOW | |
| 4. | 296-1468 | [1] | PLATE AS | |
| 5. | 169-6597 | [1] | PLATE AS | |
| 6. | 145-9087 | [2] | CUSHION | |
| 7. | 296-1471 | [1] | SPACER | |
| 8. | 157-8931 | [1] | SPACER(3-MM THK) | |
| 9. | 5C-2874M | [4] | NUT(M5X0.8-THD) | |
| 10. | 296-1464 | [1] | SLIDER AS(REAR) | |
| 11. | 296-1467 | [1] | GLASS-REAR | |
| 12. | 145-9090E | | WEATHERSTRIP(88-CM EACH) | |
| 13. | 296-1472 | [1] | RAIL | |
| 14. | 099-0857M | [4] | SCREW-MACHINE(M5X0.8X5.2-MM) | |
| 15. | 9X-2533D | | STOP(0.08-M EACH) | |
| 16. | 156-0276 | [1] | KNOB | |
| 17. | 6C-4016 | [2] | CAP | |
| 18. | 212-4219 | [1] | KNOB | |
| 19. | 8Y-6896E | | GLAZING(106-CM EACH) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
