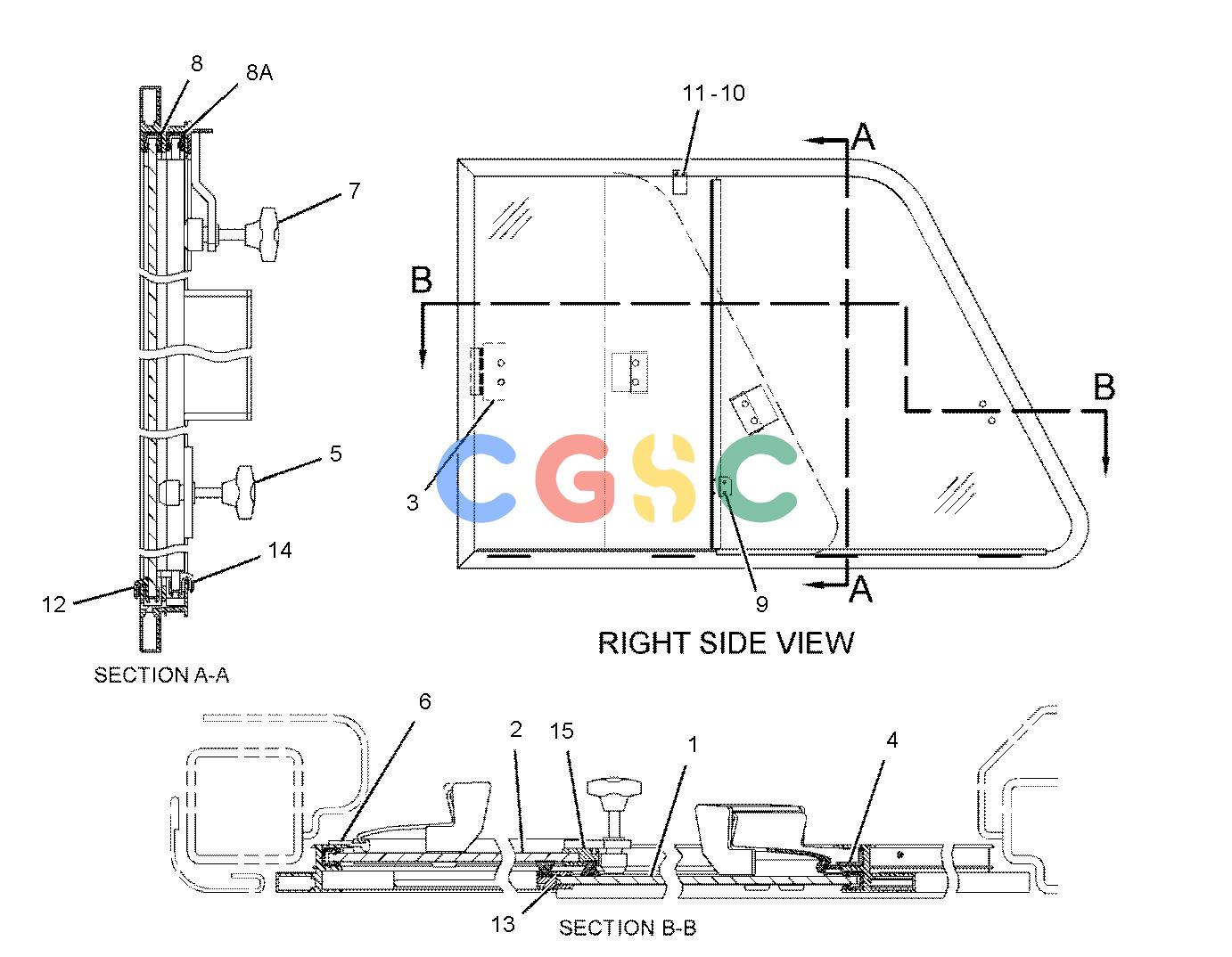

卡特零件查询（725） 168-6449: WINDOW GP
广数供应链运营团队, 14 02月, 2025，浏览：
409 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 201-9818 | [1] | GLASS | |
| 2. | 201-9819 | [1] | GLASS | |
| 3. | 201-9820 | [2] | LATCH AS | |
| 4. | 201-9821 | [1] | CATCH | |
| 5. | 201-9824 | [1] | STOP AS | |
| 6. | 201-9825 | [1] | CATCH | |
| 7. | 201-9826 | [1] | STOP AS | |
| 8. | 226-4872E | | SEAL(181-CM) | |
| 8A. | 226-4872E | | SEAL(199-CM) | |
| 9. | 095-0755M | [2] | SCREW-MACHINE(M4X0.7X12-MM) | |
| 10. | 096-6166 | [2] | WASHER-HARD(4.5X9X1-MM THK) | |
| 11. | 131-3987M | [2] | SCREW(M4X0.7X12-MM) | |
| 12. | 271-6626 | [1] | FRAME AS | |
| 13. | 271-6627 | [1] | FRAME AS | |
| 14. | 271-6628 | [1] | FRAME AS | |
| 15. | 271-6629 | [1] | FRAME AS | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
