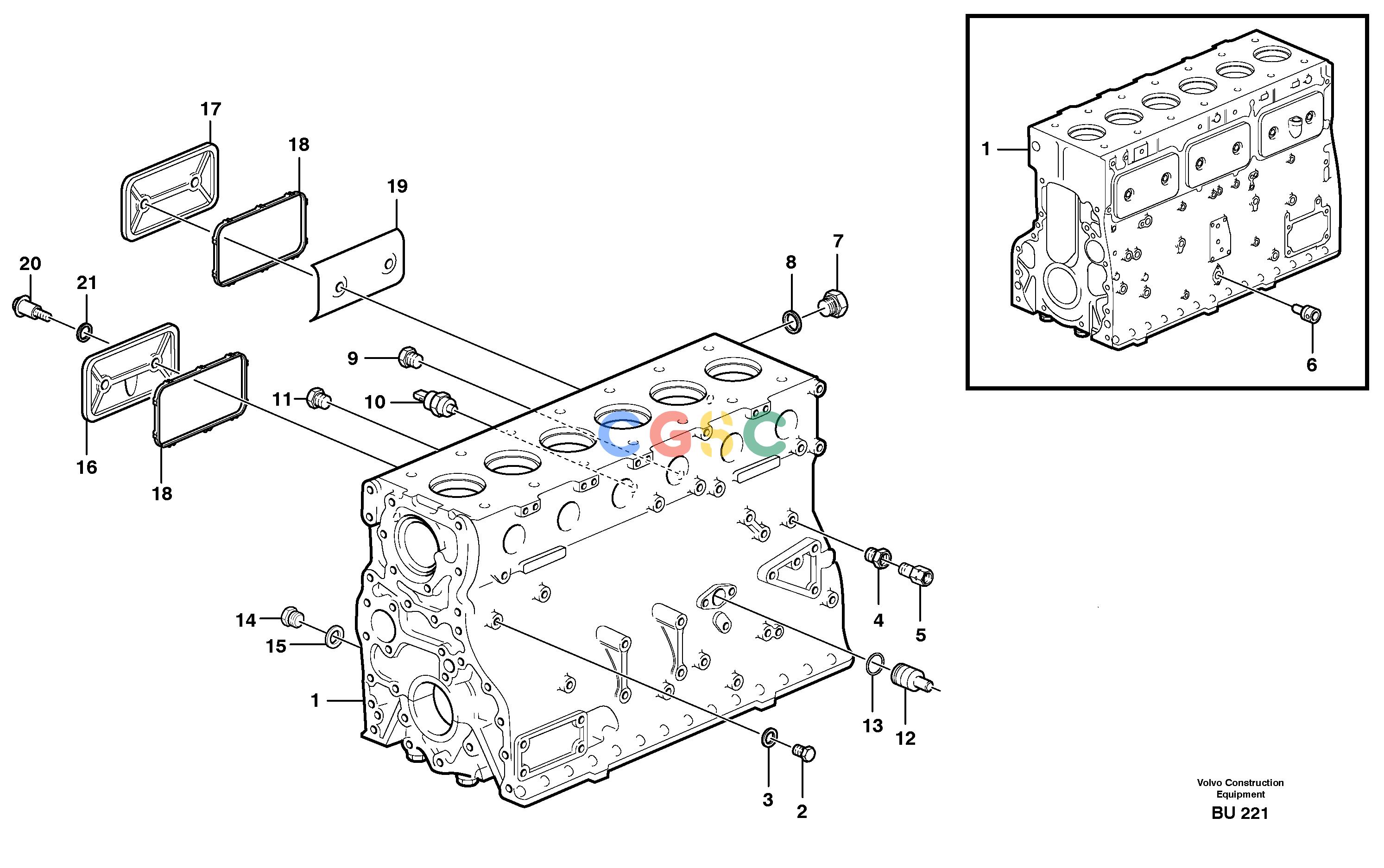

沃尔沃零件查询A25D Cylinder blockS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
821 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Cylinder block
|
|
| 2. |
VOE864865
|
[1] |
Plug
|
|
| 3. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 4. |
VOE479954
|
[1] |
Nipple
|
|
| 5. |
VOE997641
|
[1] |
Shut-off Cock
|
|
| 6. |
|
[1] |
Reduction valve
|
|
| 7. |
VOE422550
|
[1] |
Fitting
|
|
| 8. |
VOE468463
|
[1] |
Gasket
|
|
| 9. |
VOE13947814
|
[1] |
Plug
|
|
| 10. |
VOE1077574
|
[1] |
Sensor
|
|
| 11. |
VOE479979
|
[5] |
Plug
|
|
| 12. |
VOE8125388
|
[1] |
Piston cooling valve
|
|
| |
VOE466653
|
[1] |
Compression spring
|
|
| 13. |
VOE13949656
|
[1] |
O-ring
|
|
| 14. |
VOE13948187
|
[2] |
Plug
|
|
| 15. |
VOE13947625
|
[2] |
Plane gasket
|
|
| 16. |
VOE423121
|
[1] |
Hatch
|
|
| 17. |
VOE423120
|
[2] |
Hatch
|
|
| 18. |
VOE469823
|
[3] |
Gasket
|
|
| 19. |
VOE422542
|
[1] |
Splash plate
|
|
| 20. |
VOE422541
|
[6] |
Screw
|
|
| 21. |
VOE471856
|
[6] |
Sealing ring
|
|
