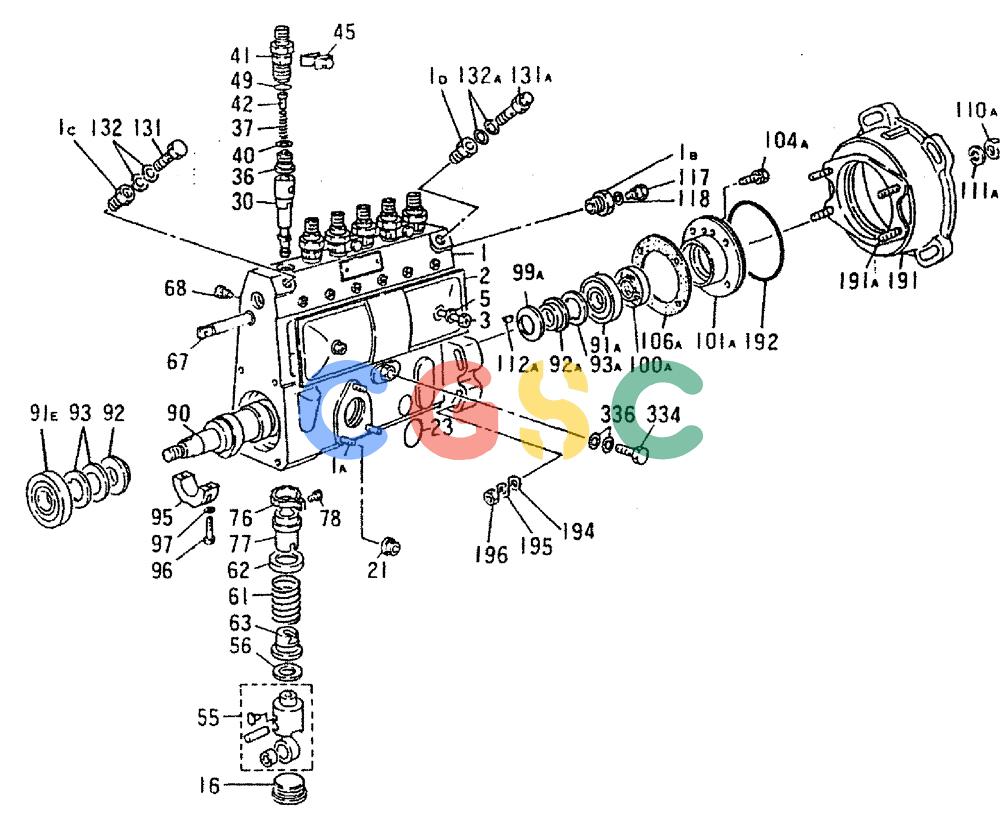

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (03-005) - INJECTION PUMP (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
385 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-336. | NSS | [1] | NOT SOLD SEPARAT | CONINJECTION PUMP ASSY, AD TYPE, ME722677 |
| 1. | VAME704477 | [1] | HOUSING, PUMP | |
| 1A. | VAME705150 | [3] | STUD | |
| 1B. | VAME704264 | [1] | ADAPTER | KOB |
| 1C. | VAME704473 | [1] | ADAPTER | |
| 1D. | VAME704280 | [1] | HYD CONNECTOR | KOBADAPTER Superseded by part number: VA1310025000 |
| 2. | VAME704318 | [1] | COVER | KOB |
| 3. | VAME704005 | [2] | SCREW | KOBSCREW |
| 5. | VAME705151 | [2] | GASKET | KOB |
| 16. | VAME704259 | [6] | PLUG | |
| 21. | VAME704489 | [3] | NUT | KOB Superseded by part number: VA1392060400 |
| 23. | VAME705152 | [1] | O-RING | KOB |
| 30. | VAME722832 | [6] | PLUNGER ASSY | |
| 36. | VAME704008 | [6] | VALVE | KOB |
| 37. | VAME704009 | [6] | SPRING, DELIVERY /V | |
| 40. | VAME704010 | [6] | GASKET | KOB Superseded by part number: VA1311151200 |
| 41. | VAME722465 | [6] | HOLDER, DELIVERY /V | |
| 42. | VAME704012 | [6] | STOP | KOB |
| 45. | VAME704013 | [3] | LOCKING PLATE | KOB |
| 49. | VAME705153 | [6] | O-RING | KOB Superseded by part number: VA0296320070 |
| 55. | VAME722244 | [6] | TAPPET ASSY | |
| 56. | VAME705155 | [1] | SHIM | KOB |
| . . | VAME705156 | [1] | SHIM | KOBSHIM, T=0.40 |
| . . | VAME705157 | [1] | SHIM | KOBSHIM, T=0.50 |
| . . | VAME705158 | [1] | SHIM | KOB |
| . . | VAME705159 | [1] | SHIM | KOBSHIM, T=0.70 |
| . . | VAME705160 | [1] | SHIM | KOBSHIM, T=0.80 |
| . . | VAME705161 | [1] | SHIM | KOBSHIM, T=0.90 |
| . . | VAME705162 | [1] | SHIM | KOBSHIM, T=1.00 |
| . . | VAME705163 | [1] | SHIM | KOBSHIM, T=1.10 |
| . . | VAME705164 | [1] | SHIM | KOBSHIM, T=1.20 |
| . . | VAME705165 | [1] | SHIM | KOBSHIM, T=1.30 |
| . . | VAME705166 | [1] | SHIM | KOBSHIM, T=1.40 |
| . . | VAME705167 | [1] | SHIM | KOBSHIM, T=0.55 |
| . . | VAME705168 | [1] | SHIM | KOBSHIM, T=0.65 |
| . . | VAME705169 | [1] | SHIM | KOBSHIM, T=0.75 |
| . . | VAME705170 | [1] | SHIM | KOBSHIM, T=0.85 |
| . . | VAME705171 | [1] | SHIM | KOBSHIM, T=0.95 |
| . . | VAME705172 | [1] | SHIM | KOBSHIM, T=1.05 |
| . . | VAME705173 | [1] | SHIM | KOBSHIM, T=1.15 |
| . . | VAME705174 | [1] | SHIM | KOBSHIM, T=1.25 |
| . . | VAME705175 | [1] | SHIM | KOBSHIM, T=1.50 |
| . . | VAME705176 | [1] | SHIM | KOBSHIM, T=1.60 |
| . . | VAME705177 | [1] | SHIM | KOBSHIM, T=0.20 |
| . . | VAME705178 | [1] | SHIM | KOBSHIM, T=0.25 |
| . . | VAME705179 | [1] | SHIM | KOBSHIM, T=0.35 |
| . . | VAME705180 | [1] | SHIM | KOBSHIM, T=0.45 |
| . . | VAME705181 | [1] | SHIM | KOBSHIM, T=1.35 |
| . . | VAME705182 | [1] | SHIM | KOBSHIM, T=1.45 |
| . . | VAME705183 | [1] | SHIM | KOBT=1.55 |
| 61. | VAME704018 | [6] | SPRING, PLUNGER | |
| 62. | VAME704019 | [6] | SEAT, SPG UPPER | |
| 63. | VAME704020 | [6] | SEAT, SPG LOWER | |
| 67. | VAME704021 | [1] | RACK | KOB |
| 68. | VAME704022 | [1] | SCREW | KOBRACK STOP Superseded by part number: VA1312260300 |
| 76. | VAME704023 | [6] | PINION | KOBPINION |
| 77. | VAME704024 | [6] | SLEEVE, CONTROL | |
| 78. | VAME704025 | [6] | SCREW | KOBSCREW, PINION CLAMP |
| 90. | VAME704026 | [1] | CAMSHAFT | |
| 91A. | VAME705184 | [1] | BEARING | KOB |
| . . | VAME705185 | [1] | BEARING | KOBOR |
| 91E. | VAME705186 | [1] | BEARING | KOB |
| . . | VAME705187 | [1] | BEARING | KOBOR |
| 92. | VAME704027 | [1] | RING | |
| 92A. | VAME704028 | [1] | RING | KOBRING |
| 93. | VAME705189 | [1] | SHIM | KOBSHIM T=0.10 |
| . . | VAME705190 | [1] | SHIM | KOBSHIM, T=0.12 |
| . . | VAME705191 | [1] | SHIM | KOBSHIM, T=0.14 |
| . . | VAME705192 | [1] | SHIM | KOBSHIM, T=0.16 |
| . . | VAME705193 | [1] | SHIM | KOBSHIM, T=0.18 |
| . . | VAME705194 | [1] | SHIM | KOBSHIM, T=0.50 |
| . . | VAME705195 | [1] | SHIM | KOBSHIM, T=1.00 |
| . . | VAME705196 | [1] | SHIM | KOBSHIM, T=0.30 |
| . . | VAME705197 | [1] | SHIM | KOBSHIM, T=0.70 |
| . . | VAME705198 | [1] | SHIM | KOBSHIM, T=1.40 |
| 93A. | VAME705200 | [1] | SHIM | KOB |
| . . | VAME705201 | [1] | SHIM | KOBSHIM, T=0.12 |
| . . | VAME705202 | [1] | SHIM | KOBSHIM, T=0.14 |
| . . | VAME705203 | [1] | SHIM | KOBT=0.16 |
| . . | VAME705204 | [1] | SHIM | KOBSHIM, T=0.18 |
| . . | VAME705205 | [1] | SHIM | KOBT=0.50 |
| . . | VAME705206 | [1] | SHIM | KOBSHIM, T=0.30 |
| . . | VAME705207 | [1] | SHIM | KOBSHIM, T=1.00 |
| 95. | VAME704480 | [1] | BEARING, CTR | |
| 96. | VAME717953 | [1] | SCREW | |
| 97. | VAME705209 | [2] | GASKET | KOB |
| 99A. | VAME704035 | [1] | PLATE | |
| 100A. | VAME705210 | [1] | OIL SEAL | KOB Superseded by part number: VA0296220190 |
| 101A. | VAME704115 | [1] | COVER | KOBCOVER, BRG |
| 104A. | VAME705211 | [4] | BOLT | KOBBOLT |
| 106A. | VAME704116 | [1] | GASKET | KOB |
| 110A. | VAMD603651 | [1] | NUT, ME705212 | |
| 111A. | VAME705213 | [1] | WASHER, SPG | |
| 112A. | VAME705214 | [1] | KEY, WOODRUFF | |
| 117. | VAME704211 | [1] | BOLT | |
| 118. | VAME717738 | [1] | GASKET | KOB Superseded by part number: VA0265061040 |
| 131. | VAME717882 | [1] | BOLT | KOBEYE Superseded by part number: VA1398140900 |
| 131A. | VAME704306 | [1] | VALVE | KOB Superseded by part number: VA1314245520 |
| 132. | VA3126106400 | [2] | GASKET | KOB Superseded by part number: VA0293414130 |
| 132A. | VA3126106400 | [1] | GASKET | KOBGASKET Superseded by part number: VA0293414130 |
| 191. | VAME704265 | [1] | BRACKET | KOB |
| 191A. | VAME717801 | [4] | STUD | KOBSTUD |
| 192. | VAME705219 | [1] | O-RING | KOB Superseded by part number: VA0296375020 |
| 194. | VAME705220 | [4] | WASHER | |
| 195. | VAME705221 | [4] | WASHER, SPG | |
| 196. | VAME705222 | [4] | NUT | KOBNUT Superseded by part number: VA0130210040 |
| 334. | VAME705223 | [1] | BOLT | KOBEYE |
| 336. | VA0375124001 | [2] | GASKET | KOBGASKET Superseded by part number: VA0265101340 |
