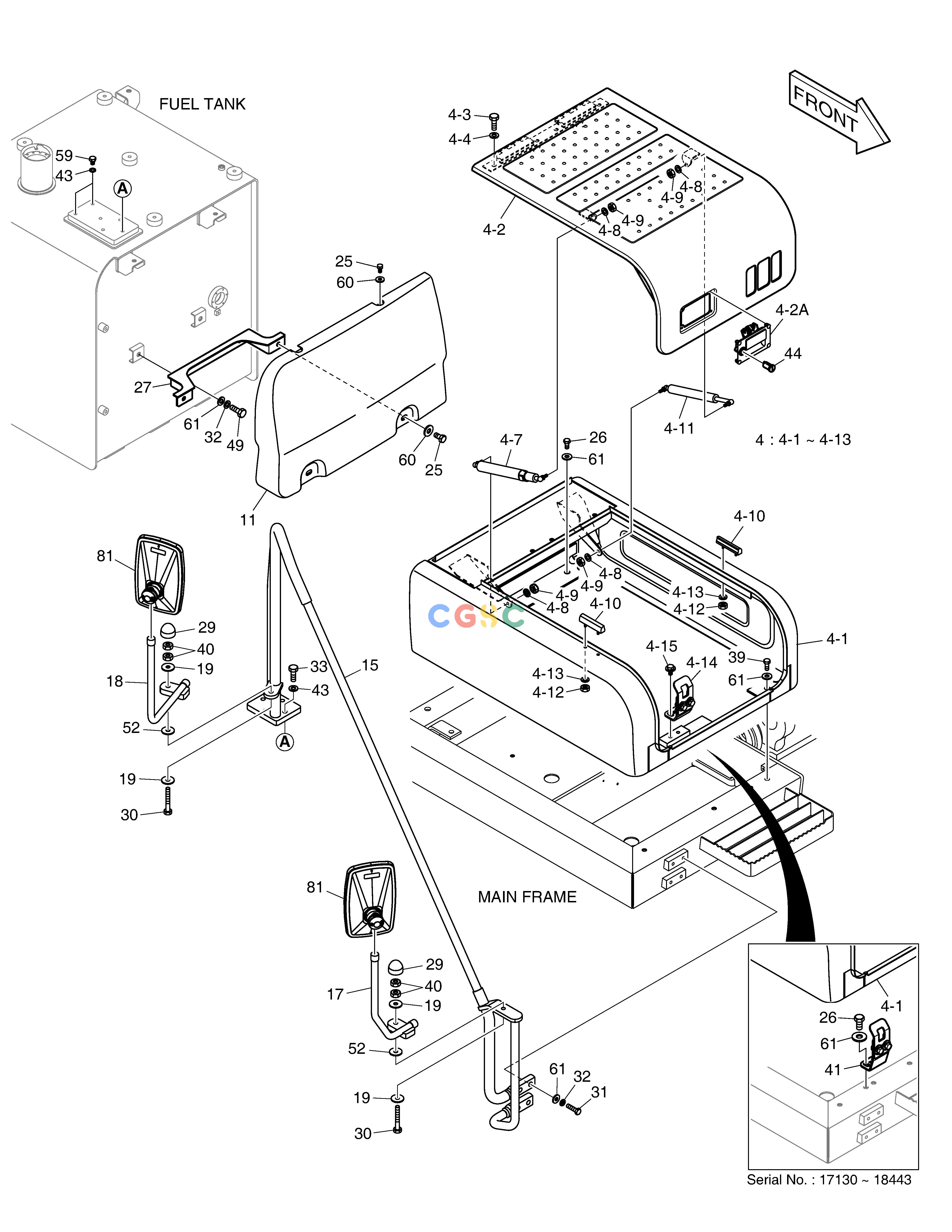

斗山零件查询BATTERY COVER DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
815 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-00244
|
[-] |
|
|
| 11. |
621-03657B
|
[1] |
COVER;TANK
|
|
| 15. |
K1013266B
|
[1] |
STAY
|
|
| 17. |
K1038110A
|
[1] |
STAY,MIRROR
|
|
| 18. |
K1038107A
|
[1] |
STAY,MIRROR
|
|
| 19. |
2114-1058D68
|
[4] |
WASHER
|
|
| 25. |
S0511866
|
[4] |
BOLT
|
|
| 26. |
S0515066
|
[4] |
BOLT
|
|
| 26. |
S0515066
|
[2] |
BOLT
|
|
| 27. |
195-02706C
|
[1] |
BRACKET
|
|
| 29. |
161-00580
|
[2] |
CAP,RUBBER
|
|
| 30. |
S0561066
|
[2] |
BOLT
|
|
| 31. |
S0560666
|
[4] |
BOLT
|
|
| 32. |
S5102703
|
[10] |
WASHER
|
|
| 33. |
S0560466
|
[4] |
BOLT
|
|
| 39. |
S0515266
|
[4] |
BOLT
|
|
| 4. |
110503-00016G
|
[1] |
|
|
| 4. |
110503-00016K
|
[1] |
|
|
| 4-1. |
NA00048
|
[1] |
|
|
| 4-10. |
110956-00362
|
[2] |
|
|
| 4-10. |
K1005305A
|
[2] |
. STOPPER;RUBBER
|
|
| 4-11. |
DS1001061
|
[1] |
. CYLINDER;GAS
|
|
| 4-12. |
S4012333
|
[4] |
NUT
|
|
| 4-13. |
S5102303
|
[4] |
. WASHER
|
|
| 4-14. |
110406-01255
|
[1] |
. BRACKET,CATCH
|
|
| 4-15. |
DS0025015
|
[2] |
BOLT
|
|
| 4-2. |
110503-00008A
|
[1] |
|
|
| 4-2A. |
125-00071B
|
[1] |
LATCH;FRONT
|
|
| 4-3. |
S0512066
|
[4] |
. BOLT
|
|
| 4-4. |
120804-00076
|
[4] |
WASHER
|
|
| 4-7. |
400315-00026
|
[1] |
. CYLINDER,GAS
|
|
| 4-8. |
S5102503
|
[4] |
. WASHER
|
|
| 4-9. |
S4012533
|
[4] |
NUT
|
|
| 40. |
S4012733
|
[4] |
NUT
|
|
| 41. |
195-02624C
|
[1] |
BRACKET
|
|
| 43. |
120804-00077
|
[6] |
WASHER
|
|
| 44. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 49. |
S0515166
|
[2] |
BOLT
|
|
| 52. |
2114-1058D54
|
[2] |
WASHER
|
|
| 59. |
S0514666
|
[2] |
BOLT
|
|
| 60. |
120804-00078
|
[4] |
WASHER
|
|
| 61. |
120804-00079
|
[12] |
WASHER
|
|
| 61. |
120804-00079
|
[10] |
WASHER
|
|
| 81. |
K1040606
|
[2] |
MIRROR,SIDE
|
|
