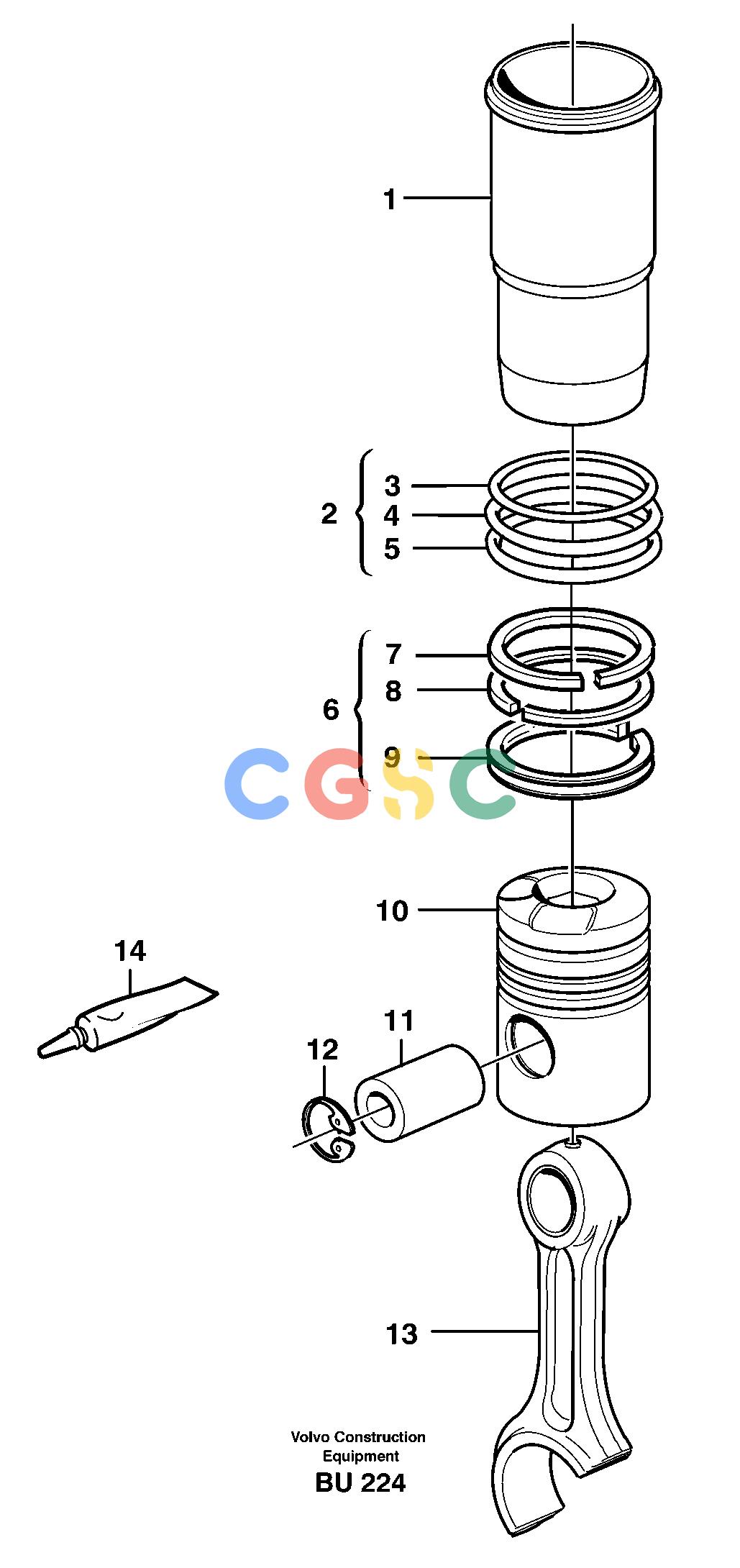

沃尔沃零件查询A25D Cylinder liner and pistonS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
486 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11705058
|
[6] |
Cylinder liner kit
|
|
| 1. |
VOE8194050
|
[6] |
Cylinder liner
|
|
| 2. |
VOE271157
|
[6] |
Sealing kit
|
|
| 3. |
VOE422713
|
[6] |
Sealing ring
|
UPPER
|
| 4. |
VOE1546229
|
[6] |
Sealing ring
|
CENT
|
| 5. |
VOE424832
|
[6] |
Sealing ring
|
LOW
|
| 6. |
VOE276851
|
[6] |
Piston ring kit
|
|
| 7. |
VOE8194085
|
[6] |
Compression ring
|
UPPER
|
| 8. |
VOE8194086
|
[6] |
Compression ring
|
LOW
|
| 9. |
VOE8194087
|
[6] |
Compression ring
|
|
| 10. |
VOE11031390
|
[6] |
Piston
|
|
| 11. |
VOE8194586
|
[6] |
Gudgeon pin
|
|
| 12. |
VOE914529
|
[12] |
Retaining ring
|
|
| 13. |
|
[6] |
Connecting rod
|
|
| 14. |
VOE1161277
|
[REQ] |
Sealant
|
20 GRAM
|
